D-Link DIR-867 User Manual

80D-Link DIR-867 User Manual
Section 4 - Conguration

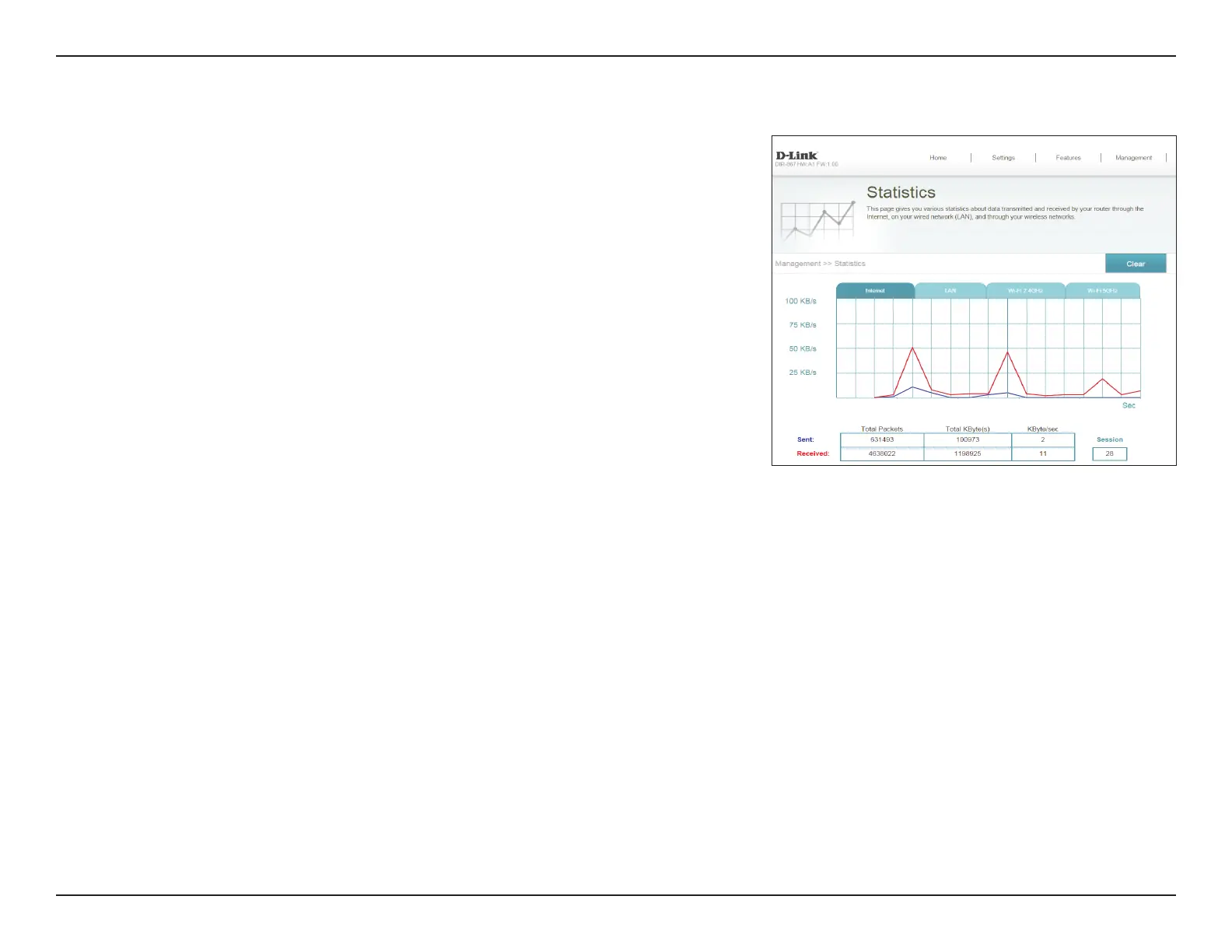

Statistics
On the Statistics page you can view the amount of packets that pass through
the router on the WAN, LAN, and wireless segments.
In the Management menu on the bar on the top of the page, click Statistics.
You can view the Internet, LAN, Wi-Fi 2.4 GHz, or Wi-Fi 5 GHz by clicking on
the respective tabs at the top. The graph will update in real time. To clear the
information on the graph, click Clear.
The trac counter will reset if the device is rebooted.

D-Link DIR-867 Specifications

General

Product type	Tabletop router
Product color	Black
LED indicators	LAN, Power, WLAN
Certification	FCC, IC
Processor cores	2
Built-in processor	Yes
Storage temperature (T-T)	-20 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Output current	1.5 A
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	AC, DC
AC input frequency	50 - 60 Hz
Security algorithms	WPA, WPA2, WPS
Networking standards	IEEE 802.11u, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1750 Mbit/s
WLAN data transfer rate (first band)	450 Mbit/s
WLAN data transfer rate (second band)	1300 Mbit/s
Antennas quantity	4
SIM card slot	No
WAN connection type	RJ-45
Number of products included	1 pc(s)

Weight and Dimensions

Depth	183.7 mm
Width	258.8 mm
Height	49.2 mm
Weight	576 g
