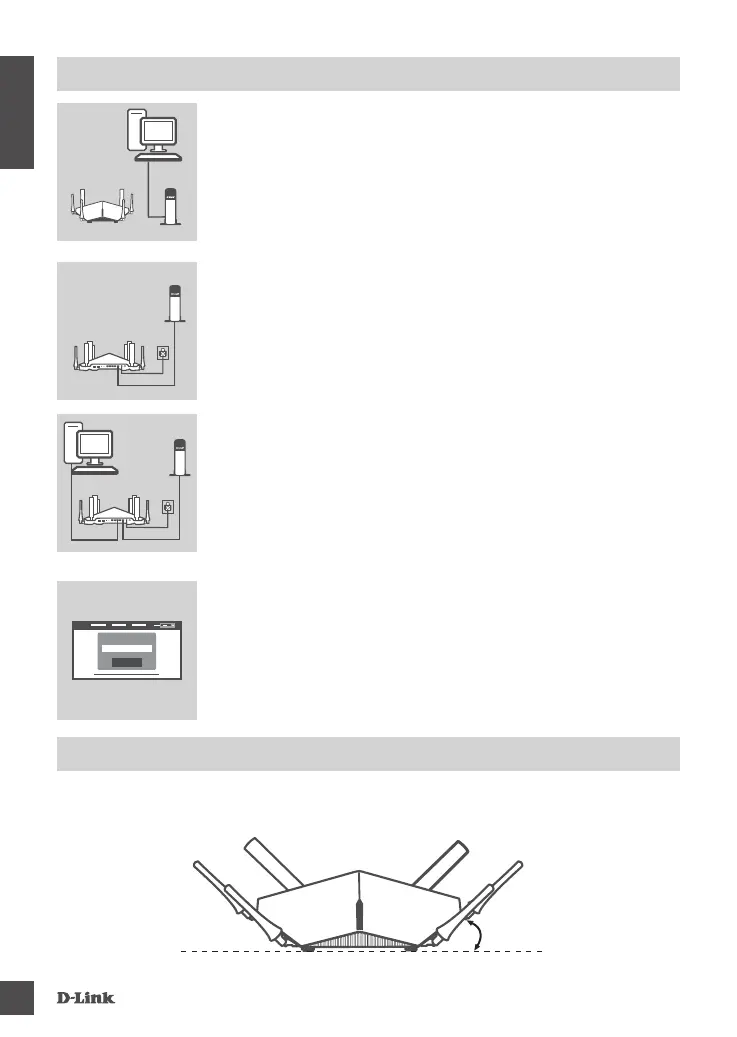

D-Link DIR-890L Quick Installation Guide

DIR-890L
4
ENGLISH
ANTENNA ORIENTATION
The DIR-890L is designed to give you the fastest, most stable network connection possible. In order to
maximize performance, orient the antennas at an angle, pointing outward and away from the base unit.
45°
Step 2
Unplug the modem Ethernet cable connected to your computer and
plug it into the port labeled INTERNET on the router.
Connect the supplied power adapter to the router and a power
outlet, then verify that the power LED is on.
Modem
Router
Step 4
To configure your DIR-890L, open a browser on the connected
computer. If you are not automatically directed to the D-Link Setup
Wizard, go to http://dlinkrouter.local./ and follow the onscreen
instructions. Use Admin as your username and leave the password
blank.
Log In
Admin Password:
Step 3
Plug one end of the supplied Ethernet cable into the port labeled 1
on the back of the router, and the other end into the Ethernet port on
your computer.
If you are setting up the DIR-890L using a laptop or mobile device,
connect it to the Wi-Fi network printed on the included Wi-Fi
Conguration Card.You can also nd the Wi-Fi network name and
password on the label attached to your router.
PC
Modem
Router
Step 1
Position your DIR-890L near your Internet-connected modem and
PC. Keep the router in an open area for better wireless coverage.
Modem
Router
PC
USING THE BUILT-IN WEB INTERFACE

D-Link DIR-890L Specifications

General

VPN support	PPTP/L2TP/IPsec
Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Wi-Fi band	Tri-band (2.4 GHz / 5 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	3200 Mbit/s
WLAN data transfer rate (first band)	600 Mbit/s
WLAN data transfer rate (second band)	1300 Mbit/s
USB version	2.0/3.2 Gen 1 (3.1 Gen 1)
Input current	5 A
Rack mounting	No
Frequency band	2.4 & 5 GHz
USB ports quantity	2
WLAN data transfer rates supported	600, 1300 Mbit/s
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
DHCP client	-
Antennas quantity	6
Security algorithms	WPA, WPA2, WPS
Product type	Tabletop router
Product color	Red
Certification	IC\\r CE\\r Wi-Fi Certified\\r FCC
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	DC
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	0 - 90 %

Weight and Dimensions

Depth	387 mm
Width	247.3 mm
Height	119.5 mm
Weight	- g
