D-Link DIR-905L - Application Rules

28D-Link DIR-905L User Manual
Section 3 - Conguration

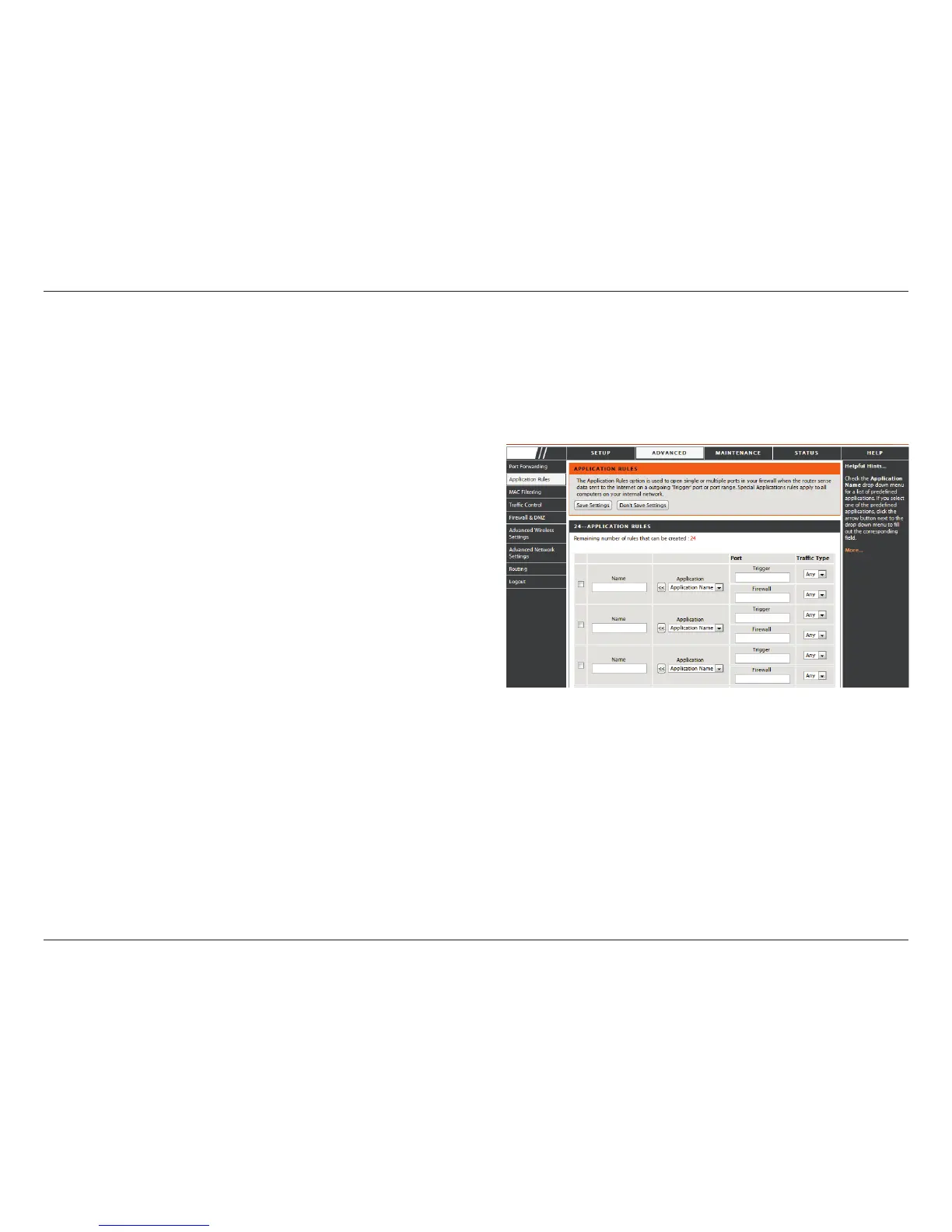

Application Rules
Some applications require multiple connections, such as Internet gaming, video conferencing, Internet telephony and others.
These applications have diculties working through NAT (Network Address Translation). Special Applications makes some of
these applications work with the DIR-905L.
Check the box to enable the rule.
Enter a name for the rule.
This is the port used to trigger the application. It
can be either a single port or a range of ports.
This is the port number on the WAN side that will
be used to access the application. You may dene
a single port or a range of ports. You can use a
comma to add multiple ports or port ranges.
Select TCP, UDP, or Any.
Rule:
Name:
Trigger Port:
Firewall Port:
Trac Type:
DIR-905L
