D-Link DSL-225 11N VDSL2 Router User Manual
Web User Interface Configuration
Page 140

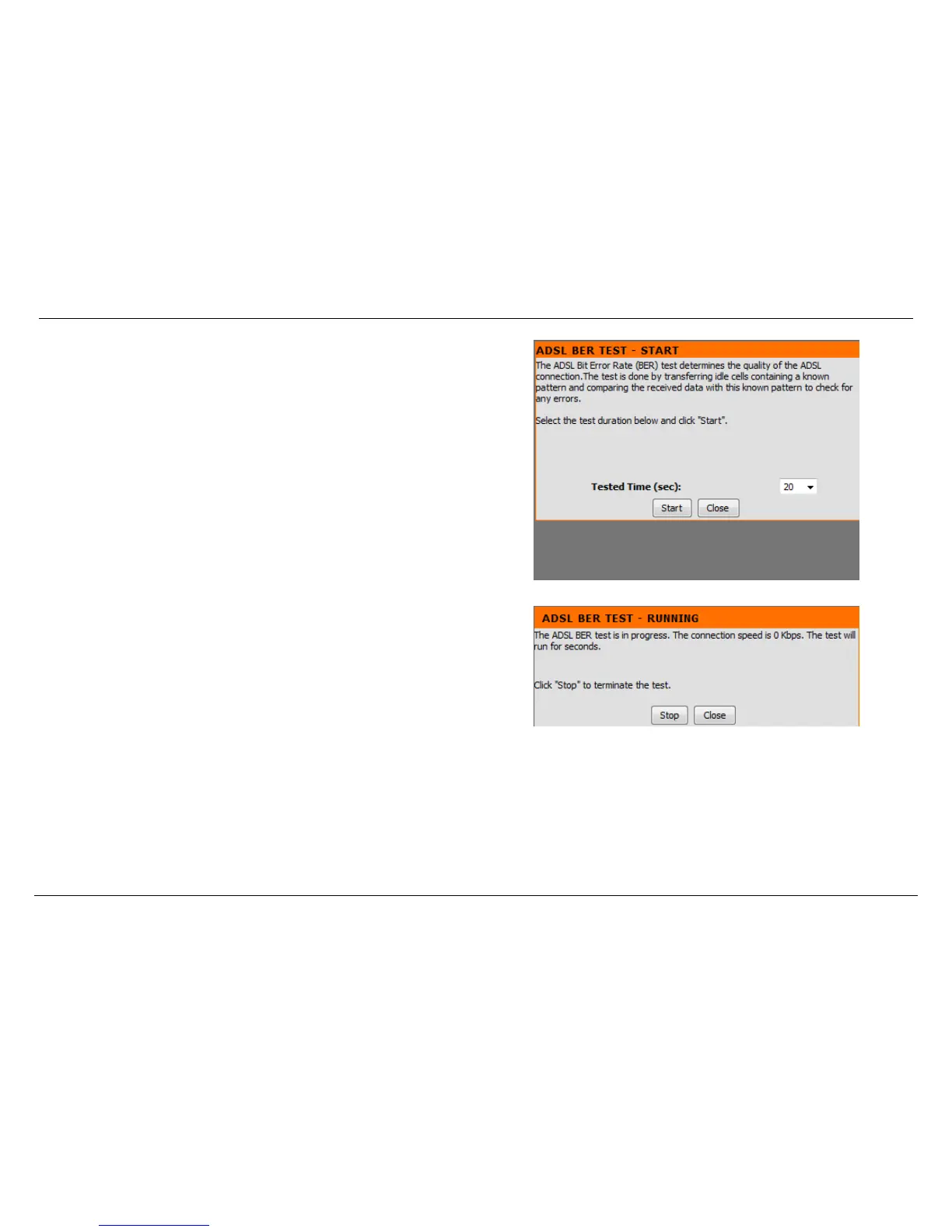

After clicking the xDSL BER Test button, the following page is available.
In this section we can initiate the ADSL BER Test.
Tested Time: Select the testing time value here. Options to choose from are 1, 5,
10, 20, 60, 120, 180, 240, 300, and 360 seconds. By default this value is 20
seconds.
Click the Start button to start the ADSL BER Test.
Click the Close button to close the window.
After clicking the Start button to the ADSL BER Test will run the test.
Click the Stop button to the stop the test.
Click the Close button to close the window.
