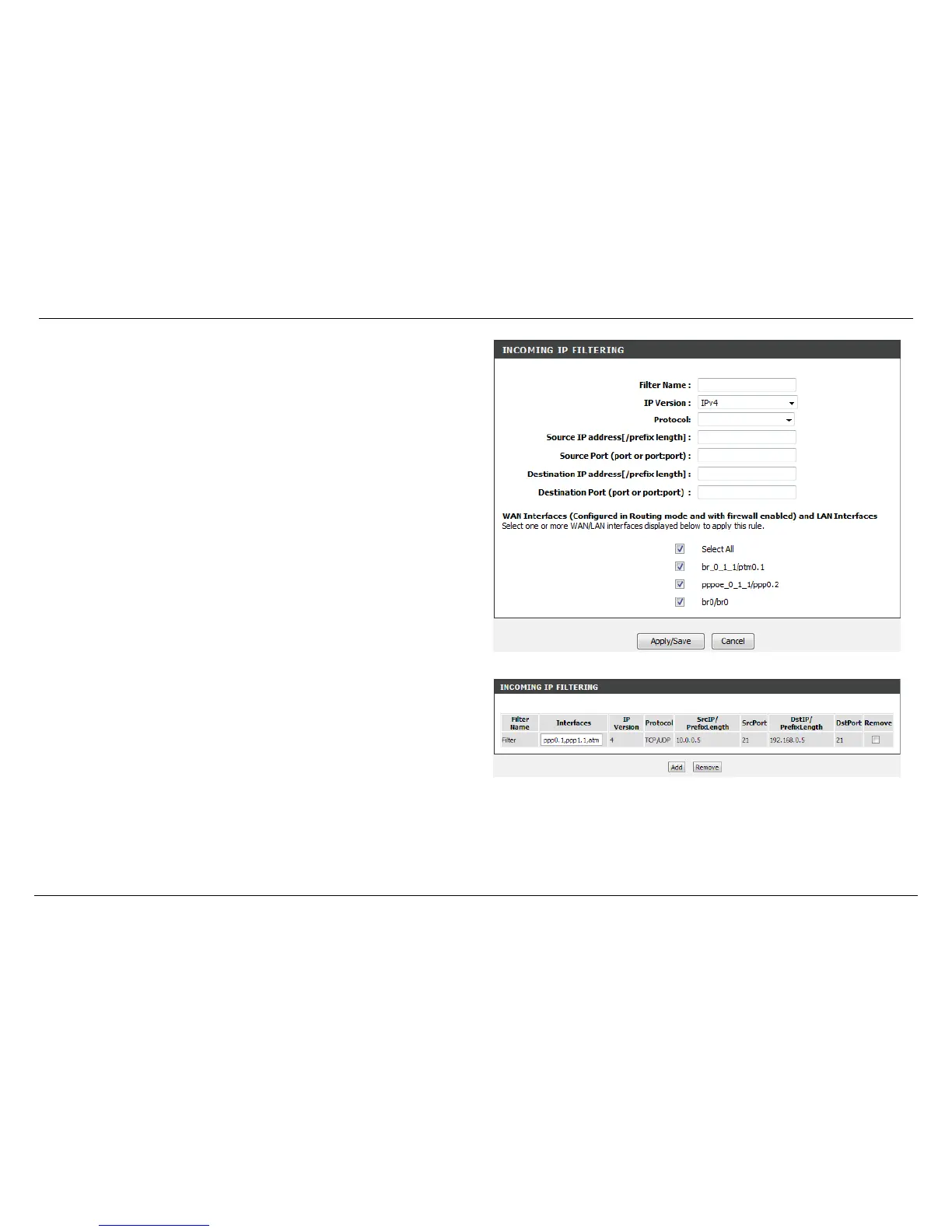

In this section we can create a new Inbound Filtering rule.
Filter Name: Enter the Inbound filtering rule name here.
IP Version: Select the IP version from the list. Options to choose from are IPv4 and
IPv6.
Protocol: Select the protocol used from the list. Options to choose from are
TCP/UDP, TCP, UDP, and ICMP.
Source IP address: Enter the source IP address here.
Source Port: Enter the source port number here.
Destination IP address: Enter the destination IP address here.
Destination Port: Enter the destination port number here.
WAN Interfaces: Select the WAN interface that will be used for this incoming IP
filter rule.
Click the Apply/Save button to accept the changes made.
Click the Cancel button to discard the changes made and return to the main page.
In this section a list of Inbound IP filtering rules will be displayed.
Click the Add button to add a new rule.
Select the Remove option and click the Remove button to remove the specific rule.
