D-Link DSL-225 11N VDSL2 Router User Manual
Web User Interface Configuration

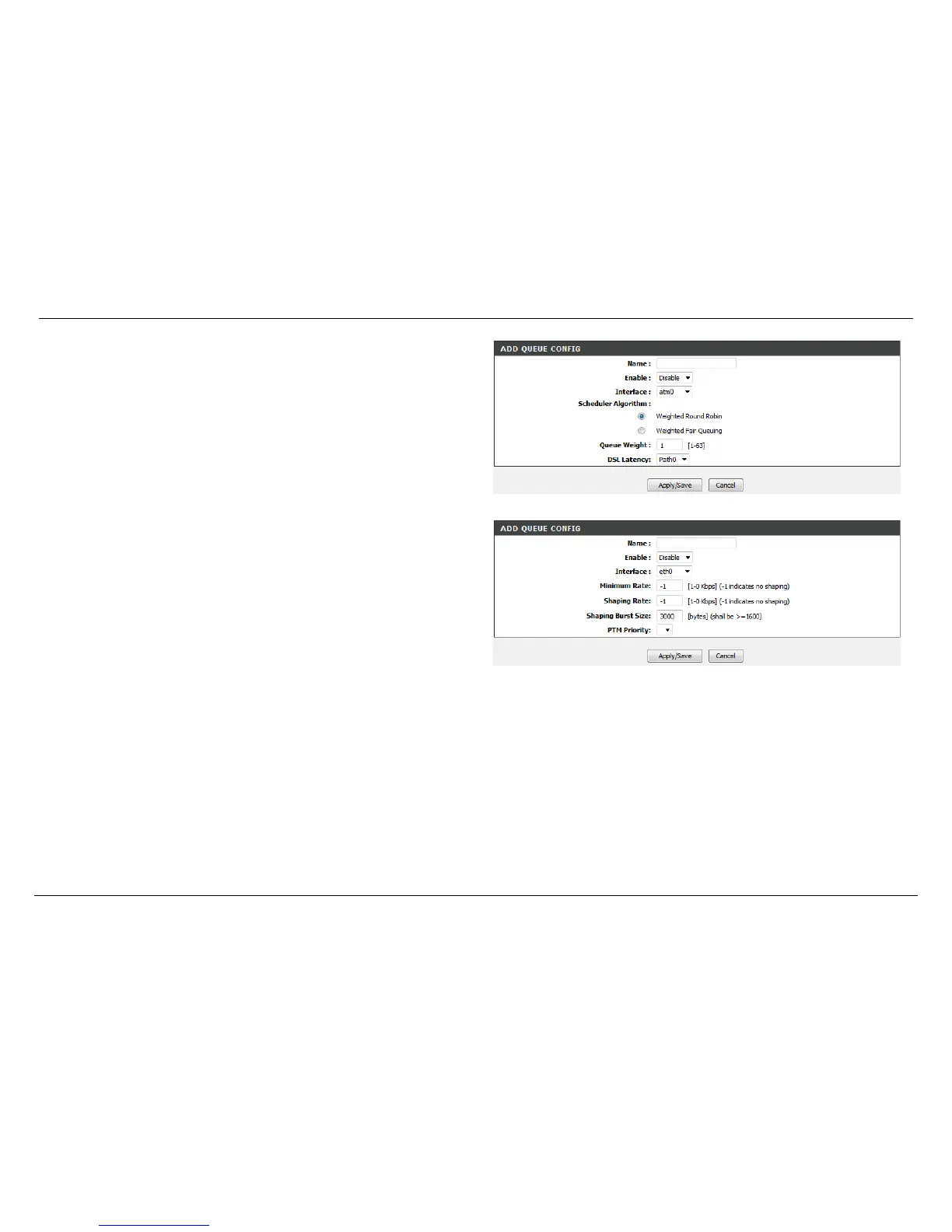

After selecting an ATM interface, the following parameters will be available.
Scheduler Algorithm: Select the queue schedule method used here. Options to
choose from are Weighted Round Robin and Weighted Fair Queuing.
Queue Weight: Enter the queue weight value used here.
DSL Latency: Select the DSL latency option here. The only option available is
Path0.
Click the Apply/Save button to accept the changes made.
Click the Cancel button to discard the changes made and return to the main page.
After selecting an Ethernet interface, the following parameters will be available.
Minimum Rate: Enter the minimum rate value used here.
Shaping Rate: Enter the shaping rate value used here.
PTM Priority: Select the PTM priority option here.
Click the Apply/Save button to accept the changes made.
Click the Cancel button to discard the changes made and return to the main page.
