D-Link DSL-2520U Quick Installation Guide

DSL-2520U Quick Installation Guide

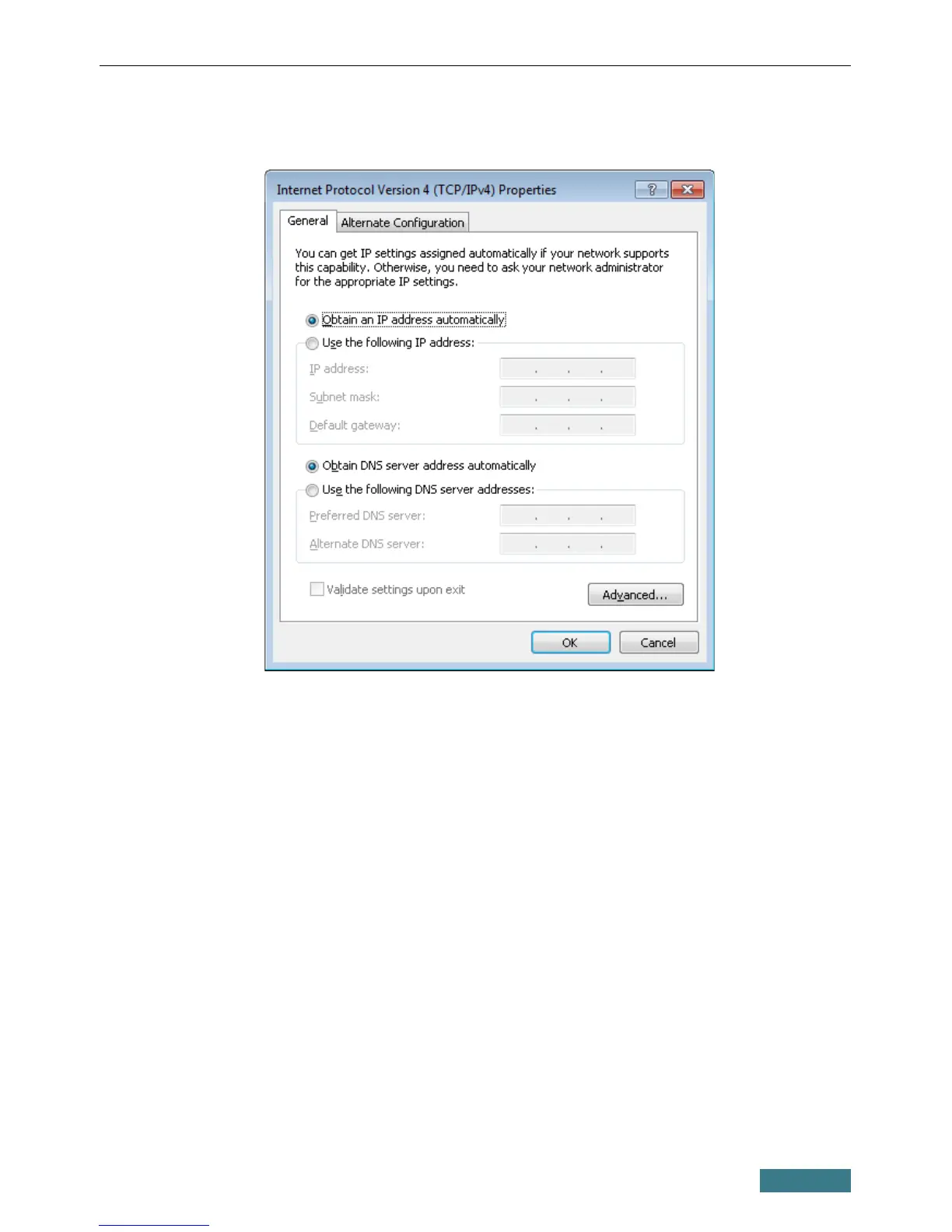

6. Select the Obtain an IP address automatically and Obtain DNS
server address automatically radio buttons. Click the OK button.
7. Click the OK button in the connection properties window.
Now your computer is configured to obtain an IP address automatically.
8

D-Link DSL-2520U Specifications

Data Transfer Rates

ADSL full rate downstream	up to 8 Mbps
ADSL full rate upstream	up to 1 Mbps
G.lite downstream	up to 1.5 Mbps
G.lite upstream	up to 512 Kbps
G.dmt.bis full rate downstream	up to 12 Mbps
G.dmt.bis full rate upstream	up to 12 Mbps
ADSL2 full rate downstream	up to 24 Mbps

Interfaces

ADSL interface connector	RJ-11
LAN interface	RJ-45 port for 10/100BASE-T Ethernet
USB interface	USB port Type B connector, USB 1.1 Specification
