D-Link DSL-2750E How To Set Up

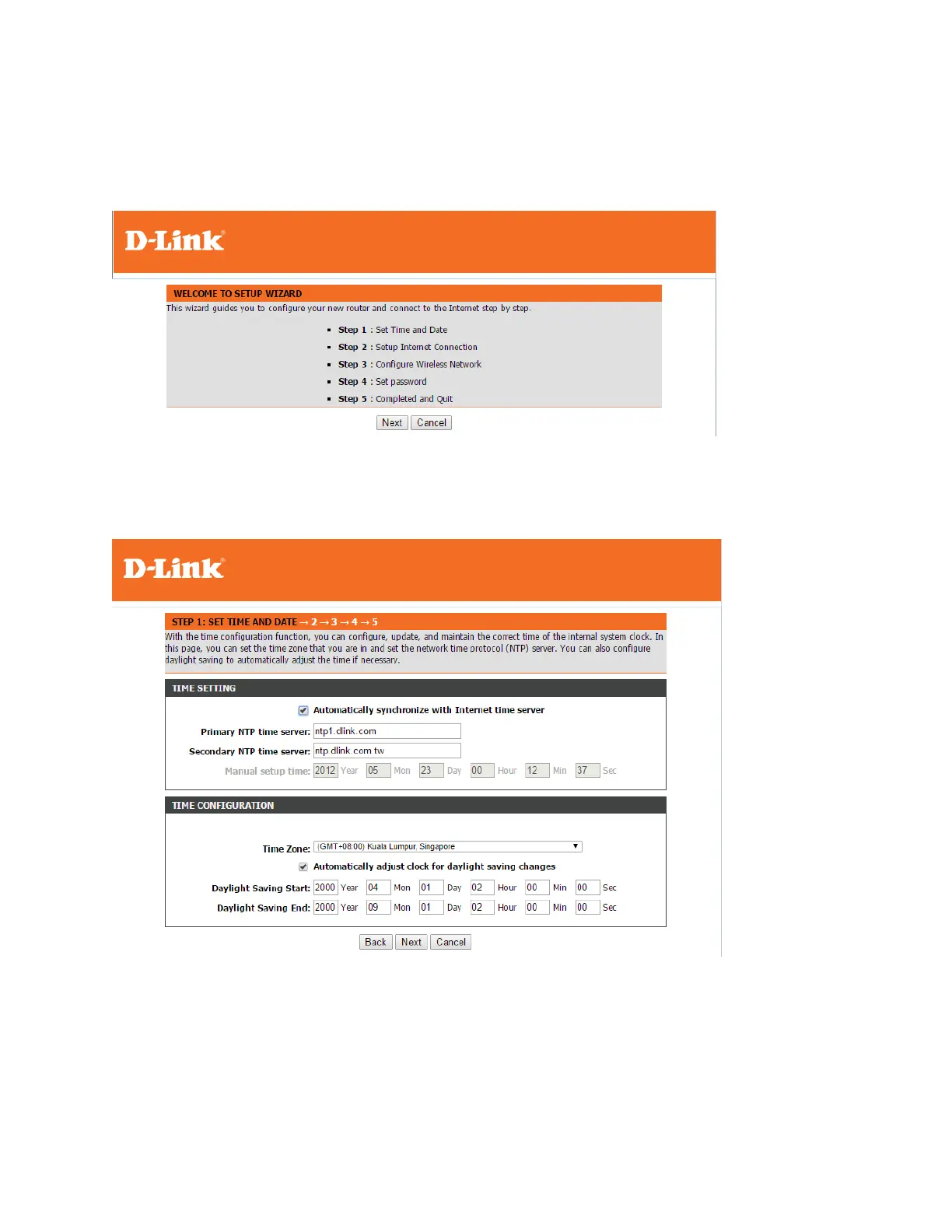

Step 3: On the device Setup page, please click on ‘Setup Wizard’ to run the step-by-step
configuration wizard.
3.1 Click ‘Next’ to continue.
3.2 The Time Configuration option allows you to configure, update, and maintain the correct
time on the internal system clock. From this section, you can enable or disable Daylight Saving
and set the time zone that you are in and set the NTP (Network Time Protocol) Server. Click
"Next" to proceed to next step.
3.3 PPPoE Configuration:
3.3.1 Please select Country: Malaysia
3.3.2 ISP: Please select your Internet Service Provider (such as: Streamyx-PPPOE)
After you have selected your Internet Service Provider, the wizard will fill up VPI and VCI
setting automatically.
3.3.3 Protocol: Select PPPoE
Please insert your PPPoE username and password (these parameter comes from your Internet
Service Provider).

D-Link DSL-2750E Specifications

ADSL Standards

G.dmt full rate downstream	up to 8 Mbps
G.dmt full rate upstream	up to 1 Mbps
G.lite ADSL downstream	up to 1.5 Mbps
G.lite ADSL upstream	up to 512 Kbps
G.dmt.bis full rate downstream	up to 12 Mbps
G.dmt.bis full rate upstream	up to 12 Mbps
ADSL full rate downstream	up to 24 Mbps
ADSL full rate upstream	up to 1 Mbps

Media Interface

ADSL interface	RJ-11 connector for connection to 24/26 AWG twisted pair telephone line
LAN interface	RJ-45 port for 10/100BASE-T Ethernet connection
