D-Link DSL-2750E How To Set Up

Enter password twice (Password and Confirm Password)
Click Next.

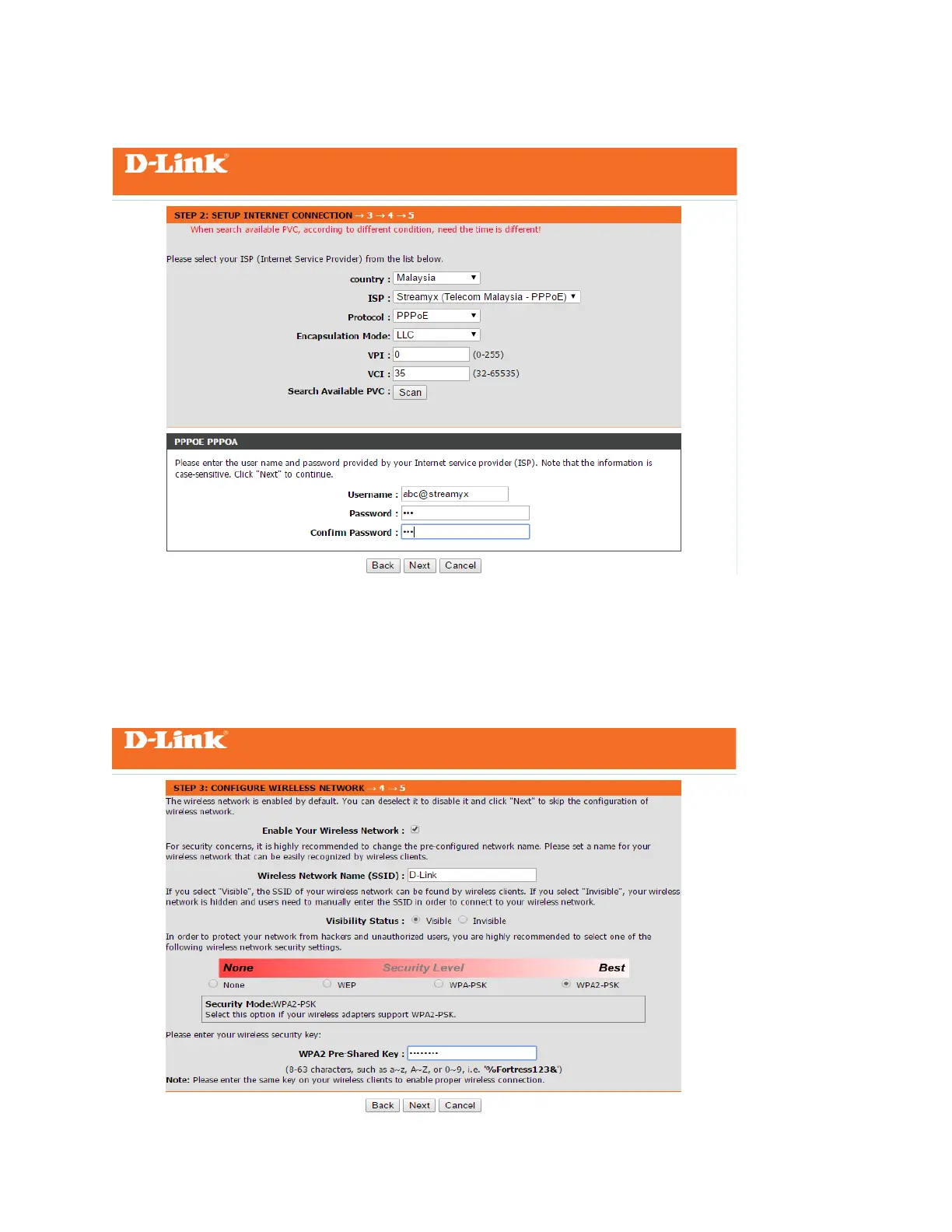

3.4 Wireless (WIFI) Setup:
3.4.1 Check the ‘Enable Your Wireless Network’ box.
3.4.2 Enter your preferred wireless network name (SSID).
3.4.3 Enter your wireless encryption key. If you do not want to setup Wireless Security, please
Select ‘None’.
Example of WPA key configuration: Select WPA2 , WPA2 Pre-Shared Key is 12345678
Click Next.

D-Link DSL-2750E Specifications

ADSL Standards

G.dmt full rate downstream	up to 8 Mbps
G.dmt full rate upstream	up to 1 Mbps
G.lite ADSL downstream	up to 1.5 Mbps
G.lite ADSL upstream	up to 512 Kbps
G.dmt.bis full rate downstream	up to 12 Mbps
G.dmt.bis full rate upstream	up to 12 Mbps
ADSL full rate downstream	up to 24 Mbps
ADSL full rate upstream	up to 1 Mbps

Media Interface

ADSL interface	RJ-11 connector for connection to 24/26 AWG twisted pair telephone line
LAN interface	RJ-45 port for 10/100BASE-T Ethernet connection
