DSL-604+ ADSL Ethernet Router User’s Guide
17

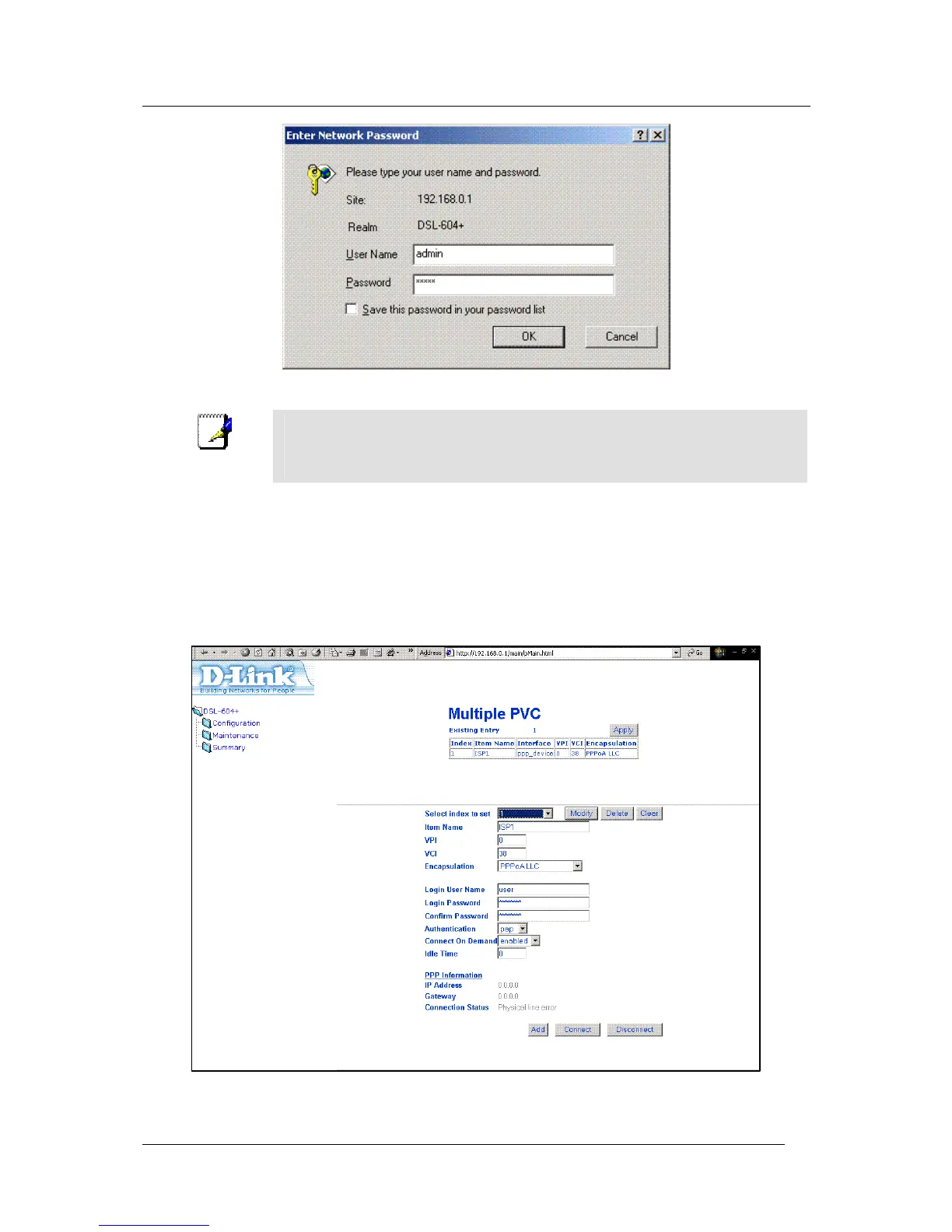

Figure 3- 2. Login to Router
Note
Do not confuse the user name and password used to access the web-based
manager with the ADSL account user name and password needed for PPP
connections to access the service provider’s network.
Configure the Router
The first page that appears after you successfully login displays the menu you need to configure the Router so it
can connect to the Internet. The Multiple PVC menu is used to configure the Router’s WAN connection and also
used to add other virtual connections (PVCs). Our purpose now is to merely establish the primary connection.
The remainder of this chapter describes what is how to establish this WAN connection. For a complete
description of the user changeable variables in the Multiple PVC menu see WAN Connection Configuration in
the next chapter.
Figure 3- 3. Configuring the WAN Connection (First Time Setup)
To Next Page
