DSL-604+ ADSL Ethernet Router User’s Guide
22
Additional Virtual Connections (PVCs)
The Router can use up to eight simultaneous PVC connections. These additional connections occupy the same
bandwidth used for ADSL service. Additional PVC connections can be added to establish a private connection to
remote offices or maintain a server accessible through the WAN port. Provision for additional PVC profiles must
be done through the telephone company or telecommunications services company. The remote user must have
suitable ADSL equipment for a successful connection.
Use the Multiple PVC menu to add, delete or modify additional PVCs as described below.

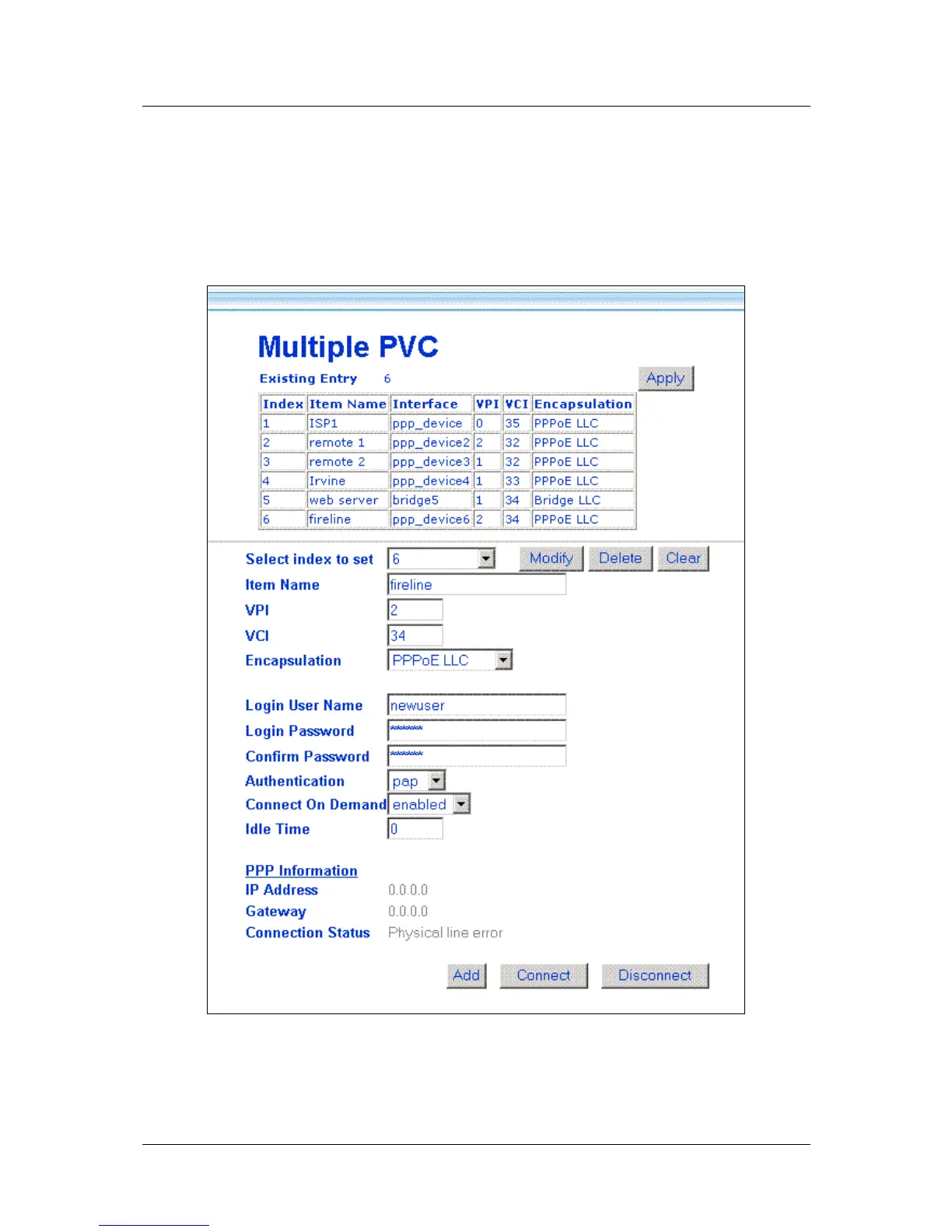

Figure 4- 2. Multiple PVC Menu
In order to use additional PVCs each profile must have a unique (to the Router) Item Name and a unique
VCI/VCI combination. You may use any available Encapsulation or connection type. Follow the instructions on
the next page to set up multiple PVCs.
