Rear Panel

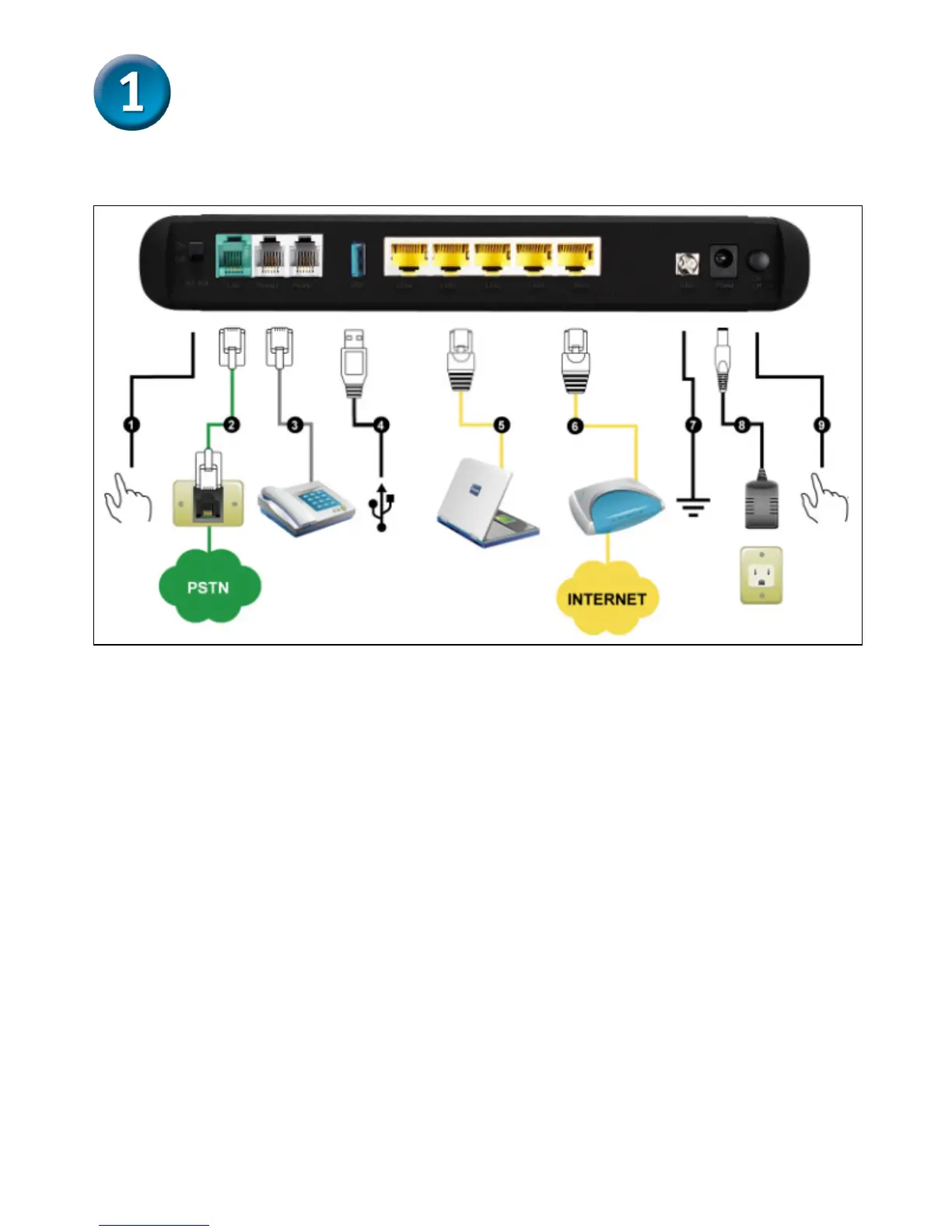

1. WiFi Switch: Turn on/off wireless LAN.
2. Line: Connect to your original telephone line on the wall jack with
RJ-11 cable.
3. Phone Port (1-2): Connect to your phones using standard phone
cabling (RJ-11).
4. USB: Connect to a 3G USB dungle or a printer.
5. LAN: Connect to your Ethernet enabled computers using Ethernet
cabling.
6. WAN: Connect to your broadband modem using an Ethernet cable.
7. Ground: A conducting connection with the earth. Connect with the
ground so as to make the earth a part of an electrical circuit using
metal wire.
8. Power Receptor: Receptor for the provided power adapter.
9. Power Switch: Press down to turn-on DVG-N5412SP.
