D-MOTOR LF39 - Assembly Short Propellor Flange; Handling of the Engine; Motor START; The Handling of the Motor Is Based on Following Elements

The Light Weight Engine Houtekietstraat 11
B-8540 Deerlijk, Belgium
EFFECTIVITY page 21
ALL 19-3-2019

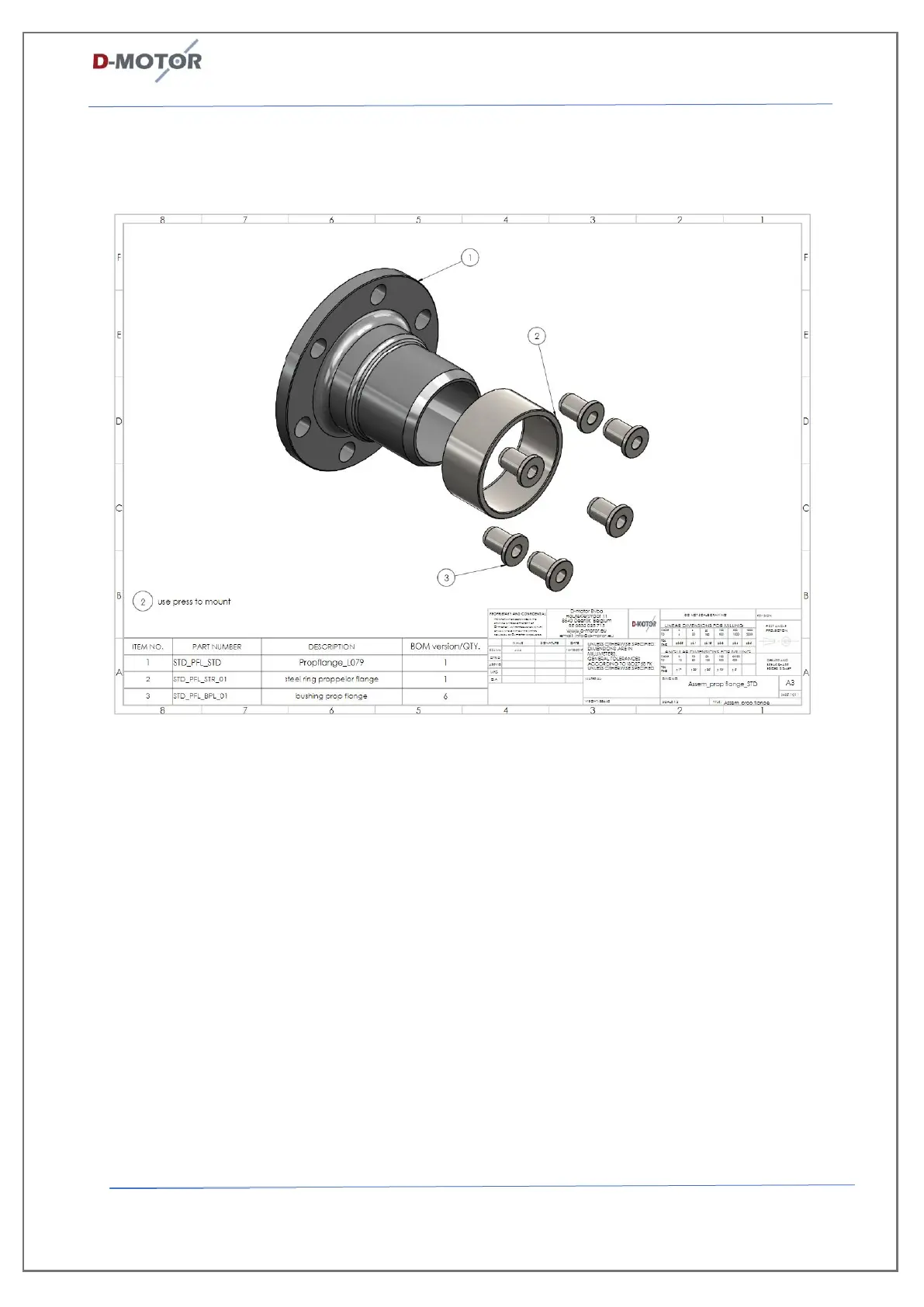

ASSEMBLY SHORT PROPELLOR FLANGE (Example)
D-Motor offers different types of propellor flanges – check our price list or contact our sales team.
HANDLING OF THE ENGINE
Motor START
The LF 26 does not have a choke or an intake air heating. Thanks to the ECU and the injection system
the motor may be started at any temperature without any special precaution.
The handling of the motor is based on following elements:
• Key Switch Release to start
• Start Button Activate the starter
• ECU Fuse/Switch ON/OFF switch for the ECU with fuse function
• Fuel pump Fuse/Switch ON/OFF switch for the fuel pump with fuse
function
• Ignition circuit (2x) ON/OFF switches of the ignition circuits
• Throttle Regulate the power setting
