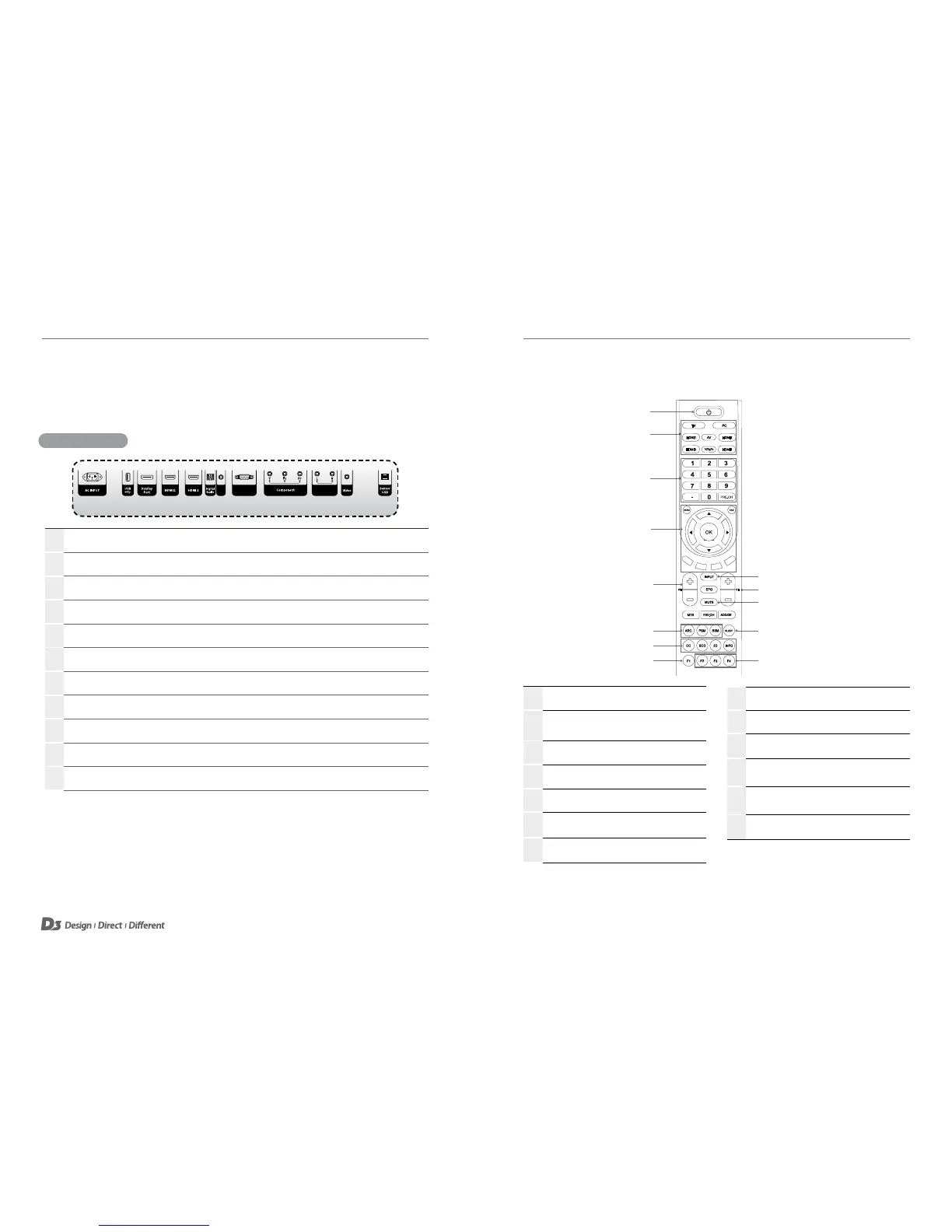

D3 S SERIES - Connection Ports Guide; Remote Control Functions

Getting Started Getting Started
8 9
Remote Control
①
AC INPUT Connect the power cord to this AC Input.
②
USB (Upgrade) Used for upgrades only.
③
Display Port Connect a Display Port device to this port.
④
HDMI 1, 2 Connect HDMI devices to these ports.
⑤
Digital Audio Output Connect an audio component via optical digital audio.
⑥
Audio In (VGA) Connect a VGA audio input to this port.
⑦
VGA Connect a VGA device to this port.
⑧
Component Video Connect a component video device to this port.
⑨
Audio In Connect for analog audio.
⑩
Composite Video Connect a composite video device to this port.
⑪
Sensor USB Connect to external device to enable touch functionality.
Connection Ports
Full HD Display
②
③
④
⑤
⑨
⑩
⑫
⑥
⑦
⑧
⑪
⑬
① ② ③ ④ ⑤ ⑥ ⑧⑦ ⑨ ⑩ ⑪
Audio In
(VGA)
VGA Audio In
o
①
①
Power On/Off
②
Input Source Options
③
Numeric Input and Chanel Change.
④
Menu & Navigation Options
⑤
Volume +/-
⑥
Input Source Options
⑦
Channel </>
⑧
Mute
⑨
Audio, Screen & Picture Options
⑩
IFTD Options
⑪
Sleep Mode Options
⑫
Freeze Screen On/OFF
⑬
Input Source Options
