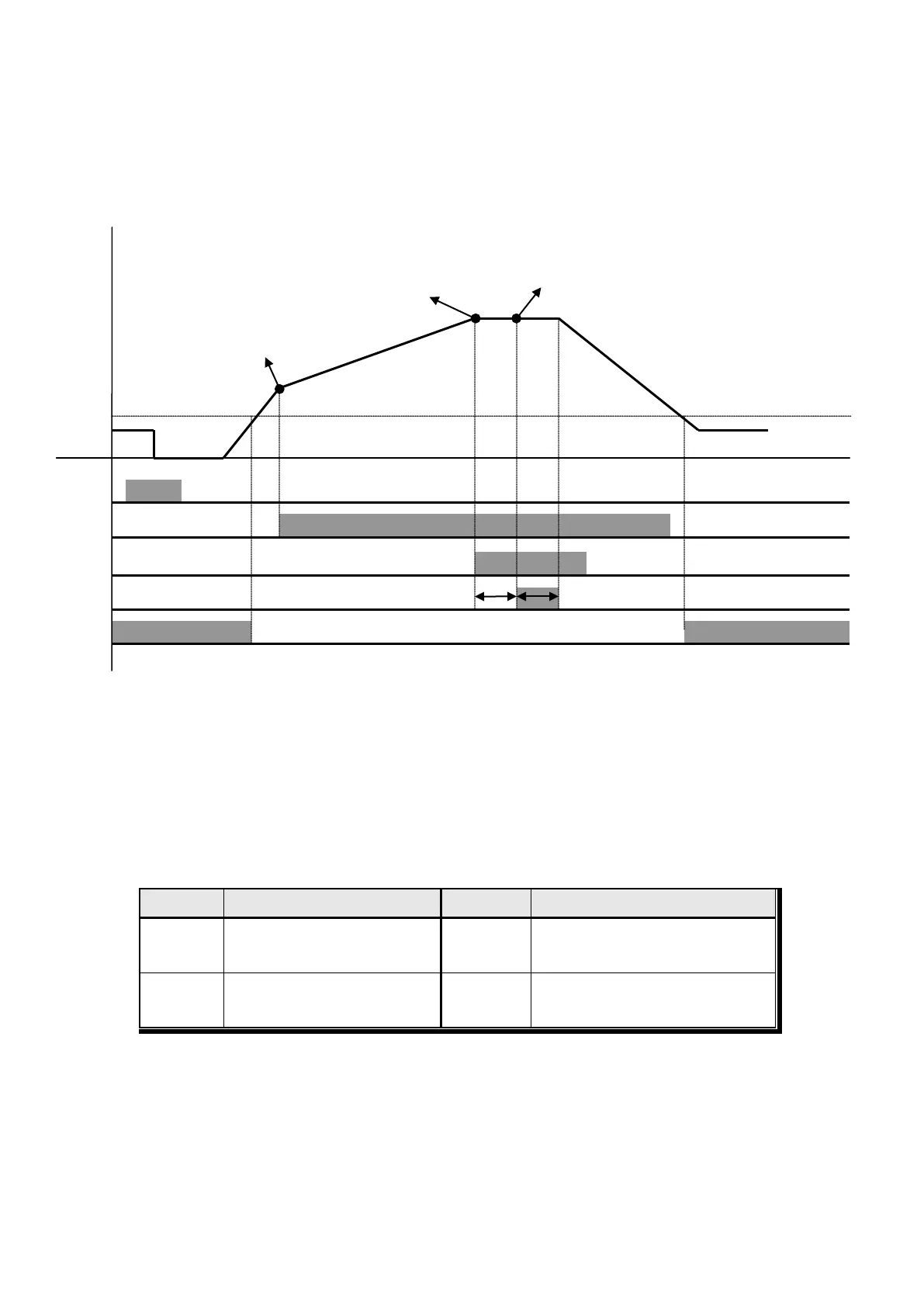

◆ Weighing Mode 1. Limit Mode 1. (F21-01 setting)
Relay “ON” when weight reaches to set value
1. Set value setting
LOW (LOW value), HIGH (High value – High Free Fall)
2. Finish relay output delay time(t1) setting : F-Function 22
3. Finish relay output “ON” time(t2) setting : F-Function 23
※
Finish Relay will be “OFF”, after “t2” time set or weight is under “Empty Range”.
4. Output Relay
Relay
Contents
Relay
Contents
LOW
Current weight e LOW(ON)
Current weight < LOW(OFF)
FINISH
After “t1” time,
“On” during “t2” time
HIGH
Current weight e HIGH(ON)
Current weight < HIGH(OFF)
Near Zero
Within “EMPTY” range (ON)
LOW
HIGH – Free Fall
Finish Point
t1
Weight
Near Zero
TARE(IN)
LOW
HIGH
FINISH
Near Zero
t2
Output 1
Output 4
Output 2
Output 3
