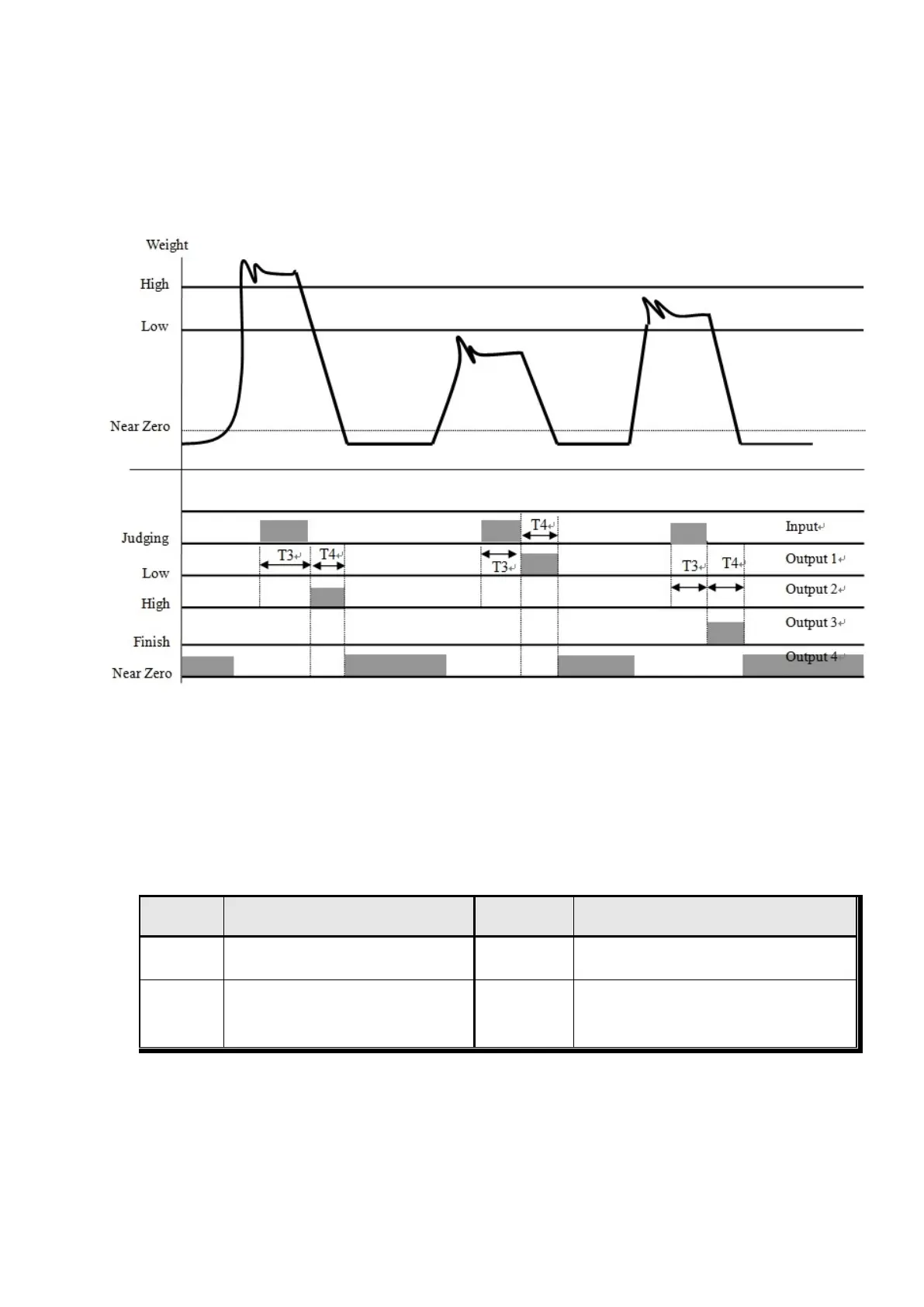

◆ Weighing Mode 3. Comparison Mode (F21-03 setting) - Checker Mode 1.
Weight Judge, when weight value is stable over than Empty range.
1. Set value setting
Sp1(Acceptable Range), Sp2 (Acceptable Range), Sp3(Acceptable Range)
2. When the weight value is “Stable”, Each relay will be “ON” within its own acceptable range after
“t3”time, during “t4” time.
3. Relay Output
Relay Contents Relay
Contents
Low
Steady weight < SP1 (ON)
OK(Finish)
SP1
≤
Steady weight
≤
SP2
High
Steady weight > SP2 (ON)
NEAR
ZERO
Within “EMPTY” range (ON)
