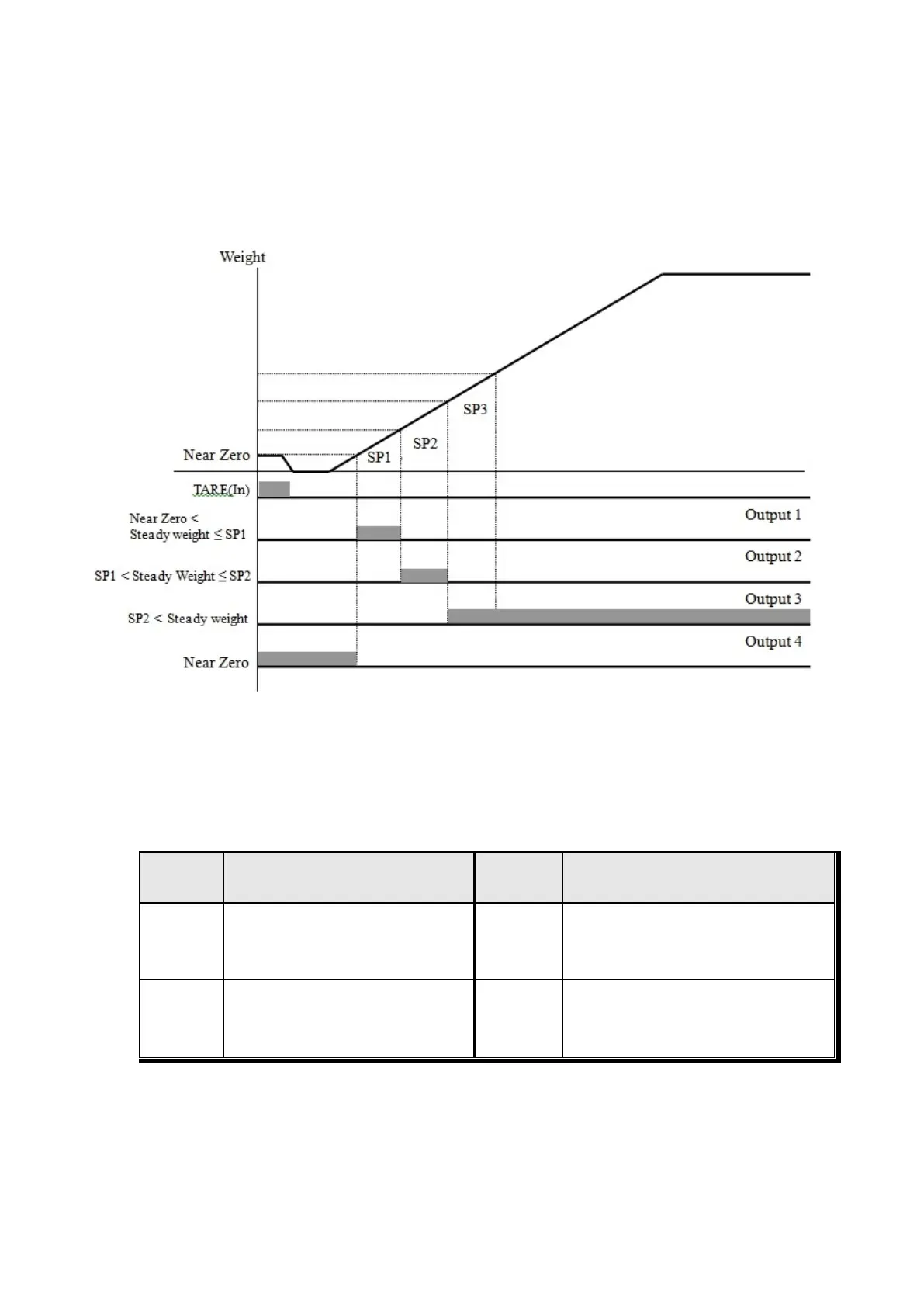

◆ Weighing Mode 4. Comparison Mode (F21-04 setting) - Checker mode 2.
Level meter type Check weighing Mode
1. Set value setting
Sp1(Acceptable Range), Sp2 (Acceptable Range), Sp3(Acceptable Range)
2. Each relay will be “ON” within its own acceptable range.
3. Relay Output
Relay Contents Relay Contents
SP 1
Near Zero
≤
Steady weigh<SP1
(ON)
SP3
SP2
≤
Steady weight
(ON)
SP 2
SP1
≤
Steady weight<SP2
(ON)
NEAR
ZERO
Within “EMPTY” range (ON)
28 / 49
