Service Manual - Dishwasher Models DDW24S, RDW24I and RDW24S
Service Information

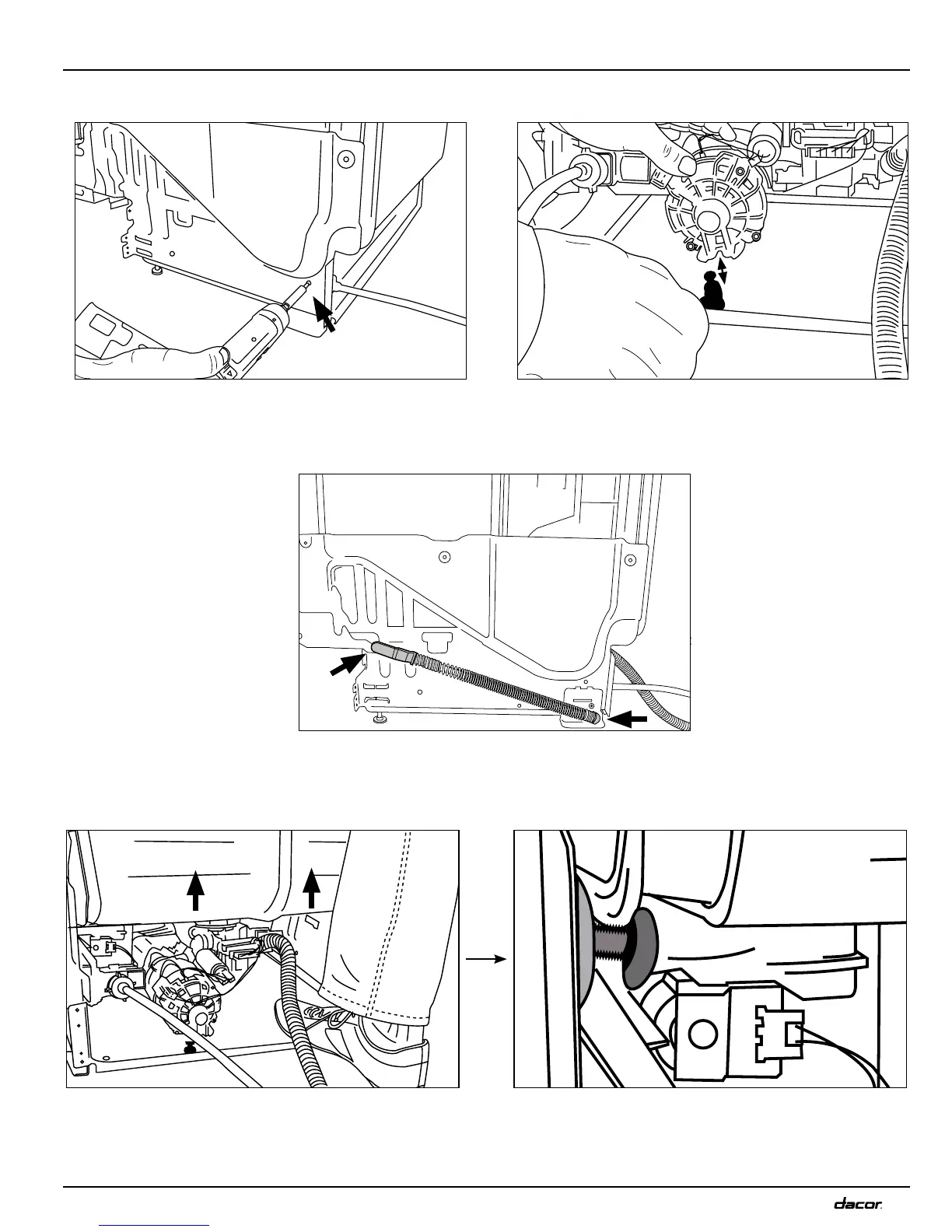

3. Remove the screw for the air gap. 4. Loosen the circulation pump from the rubber mount.
5. Ensure that both door springs are attached so that the
door does not open and tip the dishwasher over.
6. Put your foot on the base and lift the wash compartment up. Hang the wash compartment on the two screws previ-
ously placed in the rear holes on either side of the dishwasher.
To Next Page
