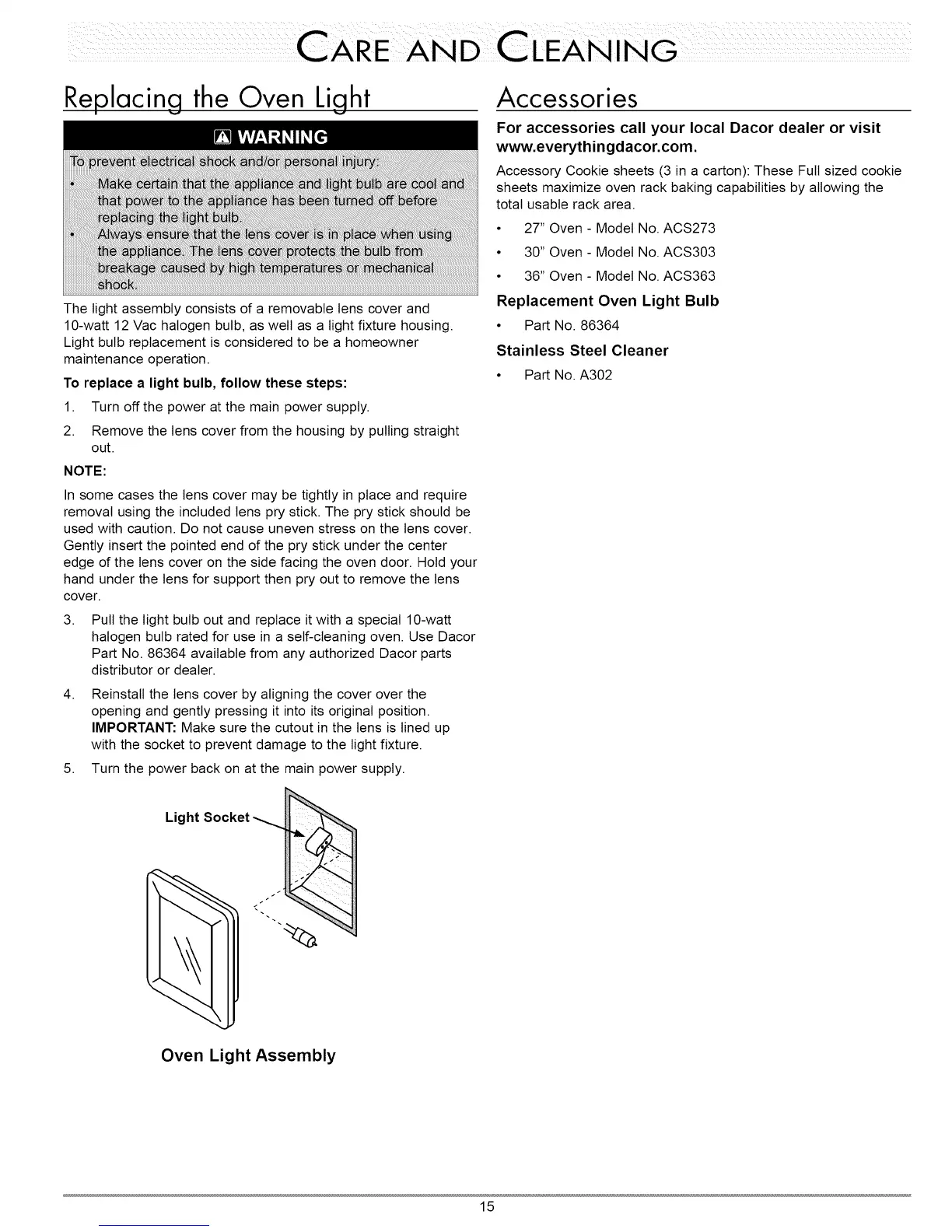

Replacing the Oven Light
The light assembly consists of a removable tens cover and
10-watt 12 Vac halogen bulb, as well as a light fixture housing.
Light bulb replacement is considered to be a homeowner
maintenance operation.
To replace a light bulb, follow these steps:
1. Turn off the power at the main power supply.
2. Remove the lens cover from the housing by pulling straight
out.
NOTE:
In some cases the tens cover may be tightly in place and require
removal using the included lens pry stick. The pry stick should be
used with caution. Do not cause uneven stress on the lens cover.
Gently insert the pointed end of the pry stick under the center
edge of the lens cover on the side facing the oven door. Hold your
hand under the lens for support then pry out to remove the lens
cover.
3,
Pull the light bulb out and replace it with a special 10-watt
halogen bulb rated for use in a self-cleaning oven. Use Dacor
Part No. 86364 available from any authorized Dacor parts
distributor or dealer.
4. Reinstall the lens cover by aligning the cover over the
opening and gently pressing it into its original position.
IMPORTANT: Make sure the cutout in the tens is lined up
with the socket to prevent damage to the light fixture.
5. Turn the power back on at the main power supply.
Accessories
For accessories call your local gacor dealer or visit
www.everythingdacor.com.
Accessory Cookie sheets (3 in a carton): These Full sized cookie
sheets maximize oven rack baking capabilities by allowing the
total usable rack area.
• 27" Oven - Model No. ACS273
• 30" Oven - Model No. ACS303
• 36" Oven - Model No. ACS363
Replacement Oven Light Bulb
• Part No. 86364
Stainless Steel Cleaner
• Part No. A302
!
Oven Light Assembly
15
