Elecronic Diagnostics Page 20

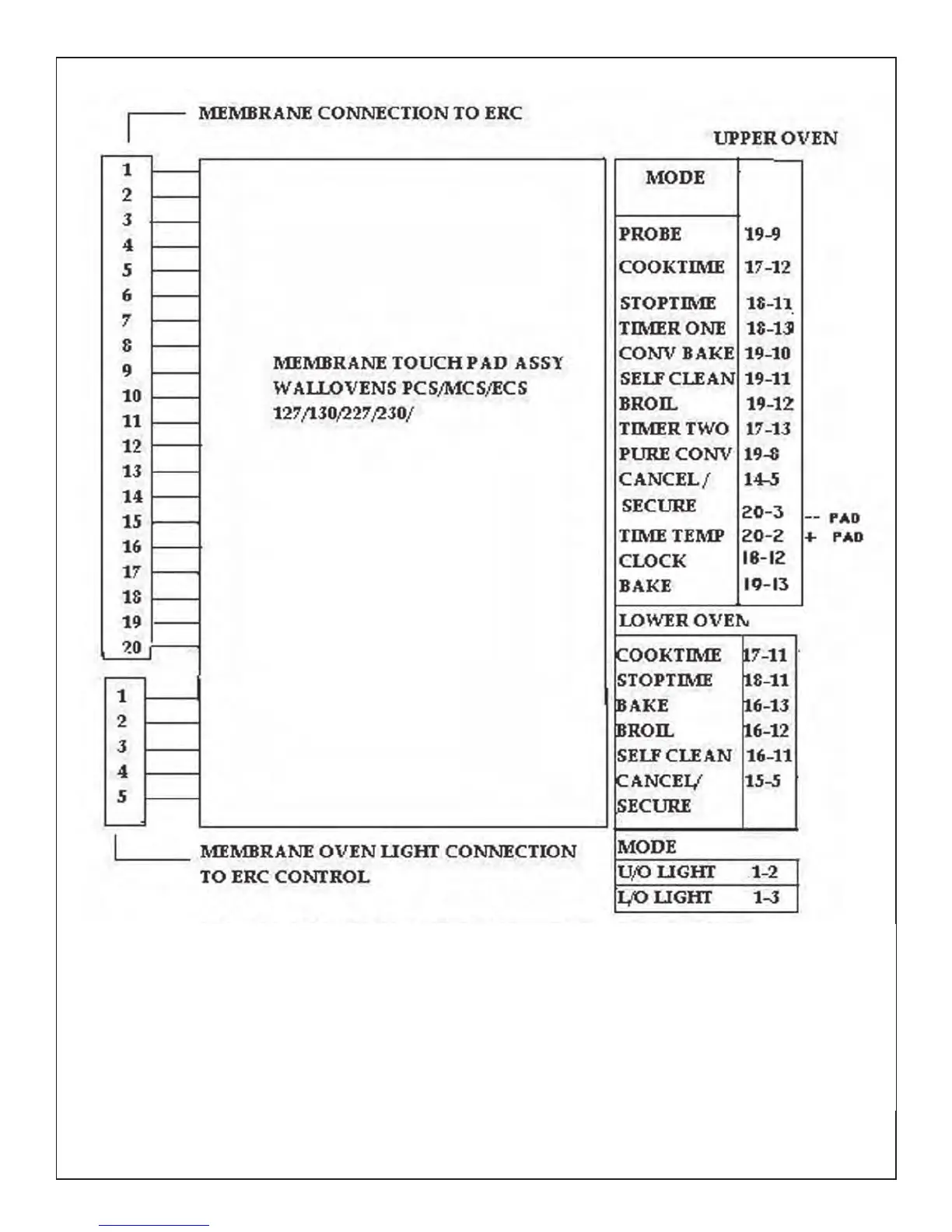

This membrane chart shows the membrane touch circuit.
For example: pull the main connector off the ERC control and insert the test
leads into the connector at points 19-13. Press the bake function on the up-
per oven touch pad to show a closed circuit.
