Dacor ELECTRONICS User Manual

Elecronic Diagnostics Page 23
T
est points on
harness 16 pin side.
Set meter to VDC. CK
v
oltage across 2 & 6.
Should read 22-24
VDC in broil c
ycle.
Broil

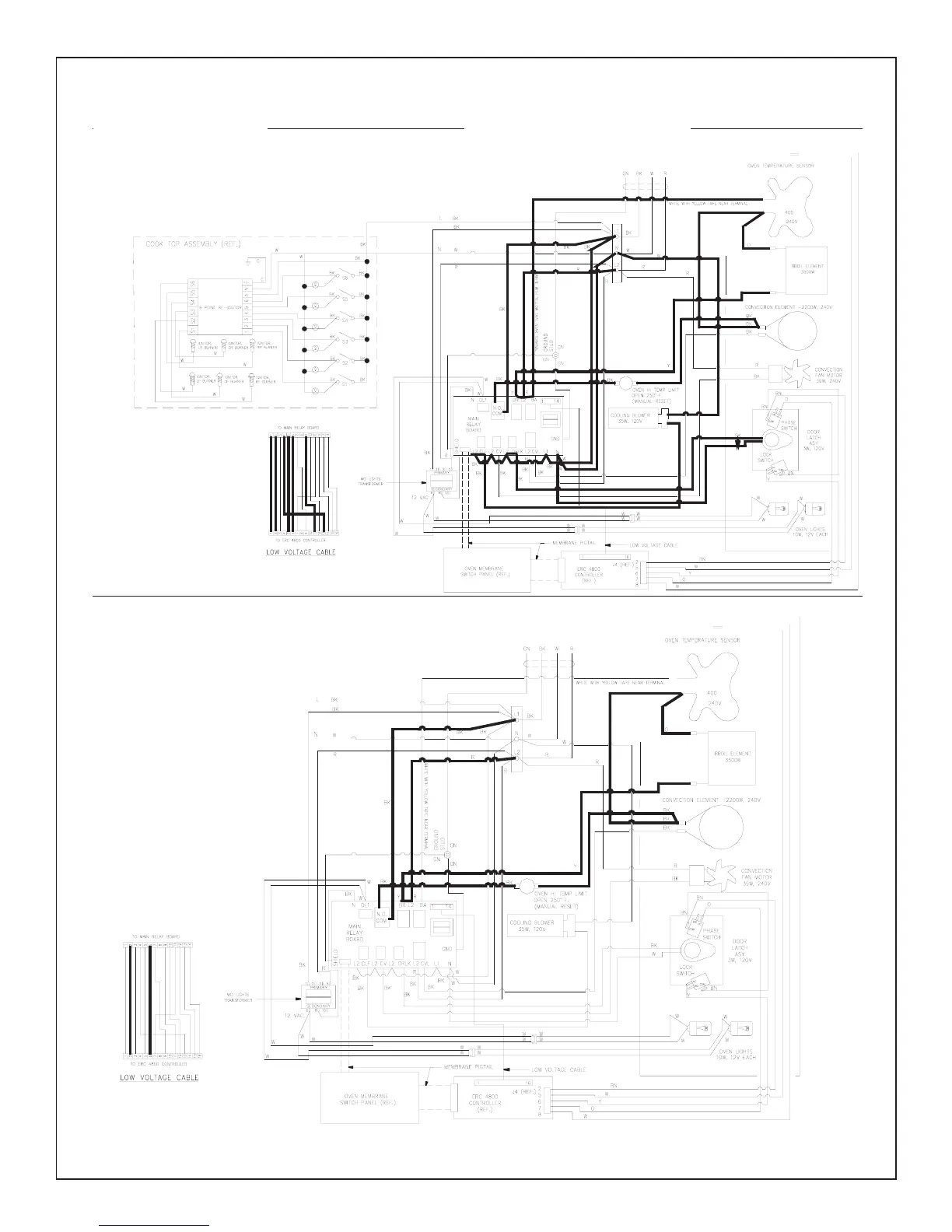

Check output DCV at the 16
pin connector side of the
ERC/Clock harness.
2 & 5 bake = 22-24 VDC
2 & 6 Broil = 22-24 VDC
1 & 11 Latch Motor = 22-
24VDC
1 & 13
Cooling Fan = 22-24
VDC
Check across Test Points
Self Clean
All Electric Ovens and Ranges
