Elecronic Diagnostics Page 7
1. Check the incoming voltage to the unit. There should be 240 volts with a neutral.

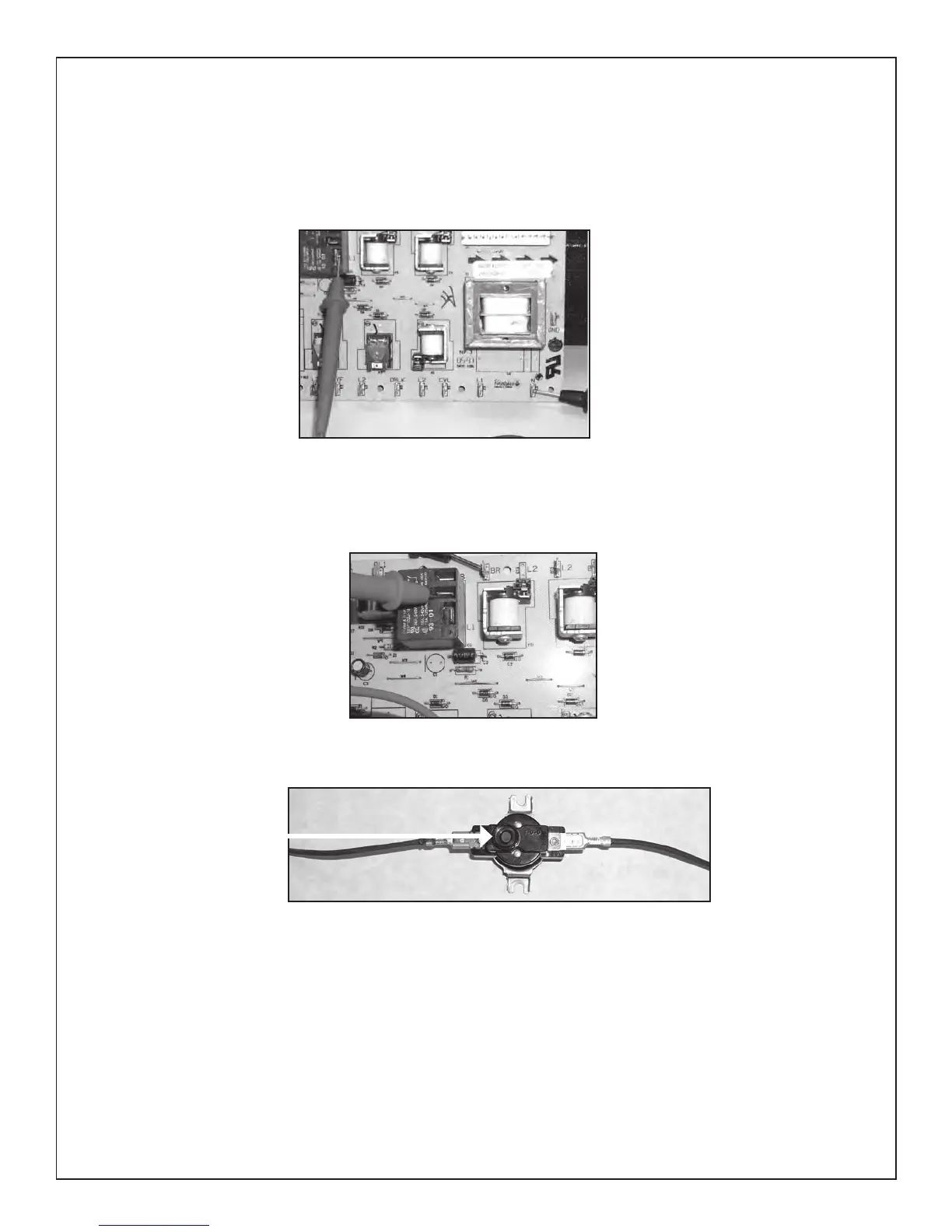

2. Check power at the Dbl (double line relay) from (Com) to neutral. There should be 120
volts incoming to the Dbl. Refer to picture for testpoints. If voltage is ok, move to step 3.
3. Program the unit into a broil cycle. Check voltage across the DBL (double line relay) N.O.
output side and BR relay (Broil relay) For 240 Volts. Refer to picture for test points.
If you have voltage present go to step 4.
If you do not have voltage replace relay board.
4. Check the HTC (high temp cutout) for open circuit. HTC is a NC switch. The HTC is
located next to the latch assembly and has a re-settable switch. (see picture)
NO BROIL
All Electric/Dual-Fuel Ranges And Wall Ovens
Re-set Button
There is also a user programmable option to set the cooling fan off temperature to
200, 300, 400 or 450 degrees.
To change the temperature:
1. Touch Broil pad - enter temp as 500 degrees or higher.
2. Push and hold Broil pad for 5 seconds - COOL will show in the ERC display
3. Adjust fan shut off temp with the +/- pad. (000 = 300 degrees, all other settings will
display temp).
4. To exit the mode - press cancel
.
Recommended factory setting is 300 degrees
This will only work on EC, MC and PC ovens
