Elecronic Diagnostics Page 6
1. Check the incoming voltage to the unit. There should be 240 volts with a neutral.
2. Check power at the Dbl (double line relay) from (Com) to neutral. There should be 120 volts

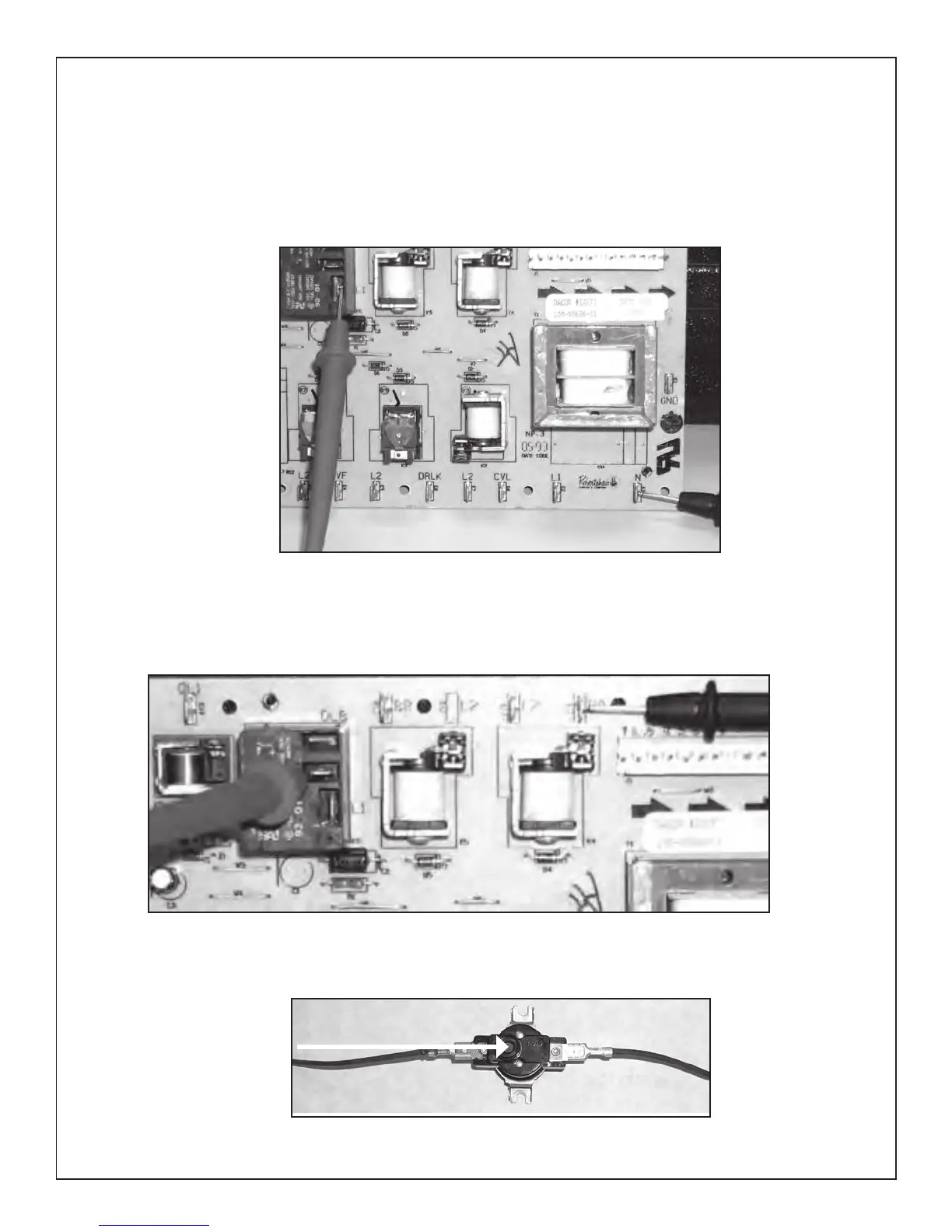

incoming to the Dbl. Refer to picture for testpoints. If voltage is ok, move to step 3.
3. Program the unit into a bake cycle. Check voltage across Dbl (double line relay) (N.O. side)
to BA relay for 240 volts. Refer to picture for test points. If no voltage replace relay board. If
you have 240 volts go to step 4.
4. Check the HTC (high temp cutout) for open circuit. HTC is a NC switch. The HTC is located
by the latch assembly and has a re-settable switch. (see picture)
NO BAKE
All Ranges And Wall Ovens
Reset Button
To Next Page
