PLANNING
GUIDE
www.Dacor.com Phone: (800) 793-0093
Specications subject to change without notice.
Install all appliances according to accompanying installation instructions.
5.11
Epicure
®
Ranges
ER36D, ER48D

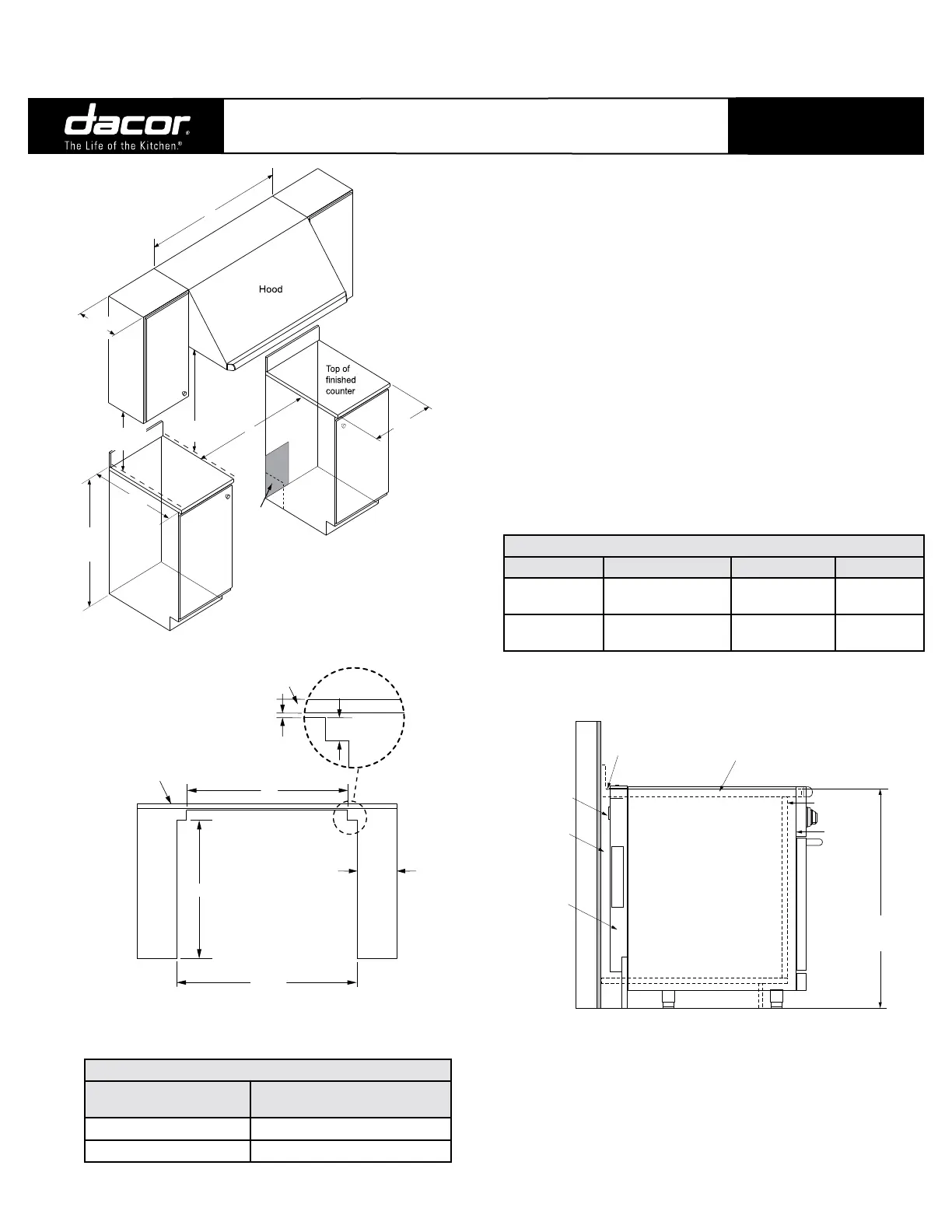

CUT-OUT DIMENSIONS
Range Model F G H
ER36D
42” (1067 mm)*
36” (914 mm)**
36 1/16”
(916 mm)**
33 1/2”
(848 mm)
ER48D
54” (1372 mm)*
48” (1219 mm)**
48 1/16”
(1221 mm)**
43 1/2”
(1102 mm)
* Recommended
**Minimum
Gas and Electrical Service
For replacement purposes, the location of the existing utilities may ■
be utilized provided they do not interfere with the sides or rear of the
range. Check local building codes for permissible locations.
An external manual shut-off valve must be installed between the gas ■
inlet and the range, for the purpose of turning on or shutting off gas to
the appliance.
The installation must allow for the following:
Access to the gas shut-off valve when the unit is installed. ■
Access to the remote circuit breaker panel/fuse box, when the range ■
is in place.
The gas supply piping and shut-off valve, and the electrical junction ■
box/receptacle must be located so they do not interfere with the range
when it is installed.
The junction box and gas shut off valve must be located so that ■
the range can be pulled out for service while the appliance remains
connected.
Note 2
F
G
2
Cabinet/countertop depth is at discretion of customer but
cabinet face MUST NOT protrude further than rear of front
panel, see product dimensions.
3
Consult local code for exact location requirements.
1
Vertical to combustible surface from range grate level; if
installing an overhead vent hood, also check the hood
specifications for minimum required clearances.
Non-combustible
surface along
back wall
recommended
10” (254 mm) Min.
to combustible side
walls above the range
(both sides)
30” (762 mm)
Min.
1
36 1/2”
(927 mm)
Max.
13” (330 mm)
Max.
4
18” (457 mm)
Min.
1, 4
Suggested
location of
utilities
3
4
Not applicable for cabinets more than a horizontal
distance of 10” (254 mm) from the edge of the range.
G
10" (254 mm) Min.
to combustible side
walls above the range
(both sides)
non-combustible
Minumum Countertop Height:
30 1/4” (768 mm)
Maximum Countertop Height:
36 1/2” (927 mm)
rear wall recommended
Backsplash
3/8" (10 mm)
Min. flat countertop
overhang
H
2 13/16"
(71.4 mm)
3
CUTOUT WITH OPTIONAL ERV RAISED VENT
(TOP VIEW)
APPROVED RAISED VENT MODELS
Raised Vent Model
For Use With
Range Model
ERV36-ER ER36D
ERV48-ER ER48D
Stiffener
Cabinet face**
Countertop*
* IMPORTANT: See “CUTOUT WITH OPTIONAL ERV RAISED VENT”
for countertop cutout dimensions.
** IMPORTANT: Cabinet face must not stick out further than
back of control panel.
Back of
control
panel
ERV36-ER or
ERV48-ER
raised vent
ER36D or ER48D Range
3/8” Min. (10 mm)
space behind
raised vent
chassis to clear
stiffener
3/8” Min. (10 mm)
flat countertop overhang
required behind cutout
Countertop height:
30 1/4" (768 mm) Min.
36 1/2” (927 mm) Max.
RAISED VENT INSTALLATION SIDE VIEW
Cutout tolerances: +1/16” (+1.6 mm), -0 unless otherwise stated
Document # PG05 - 004 Revised 02/04/10 Page 2/2
