Installation Instructions
Floor

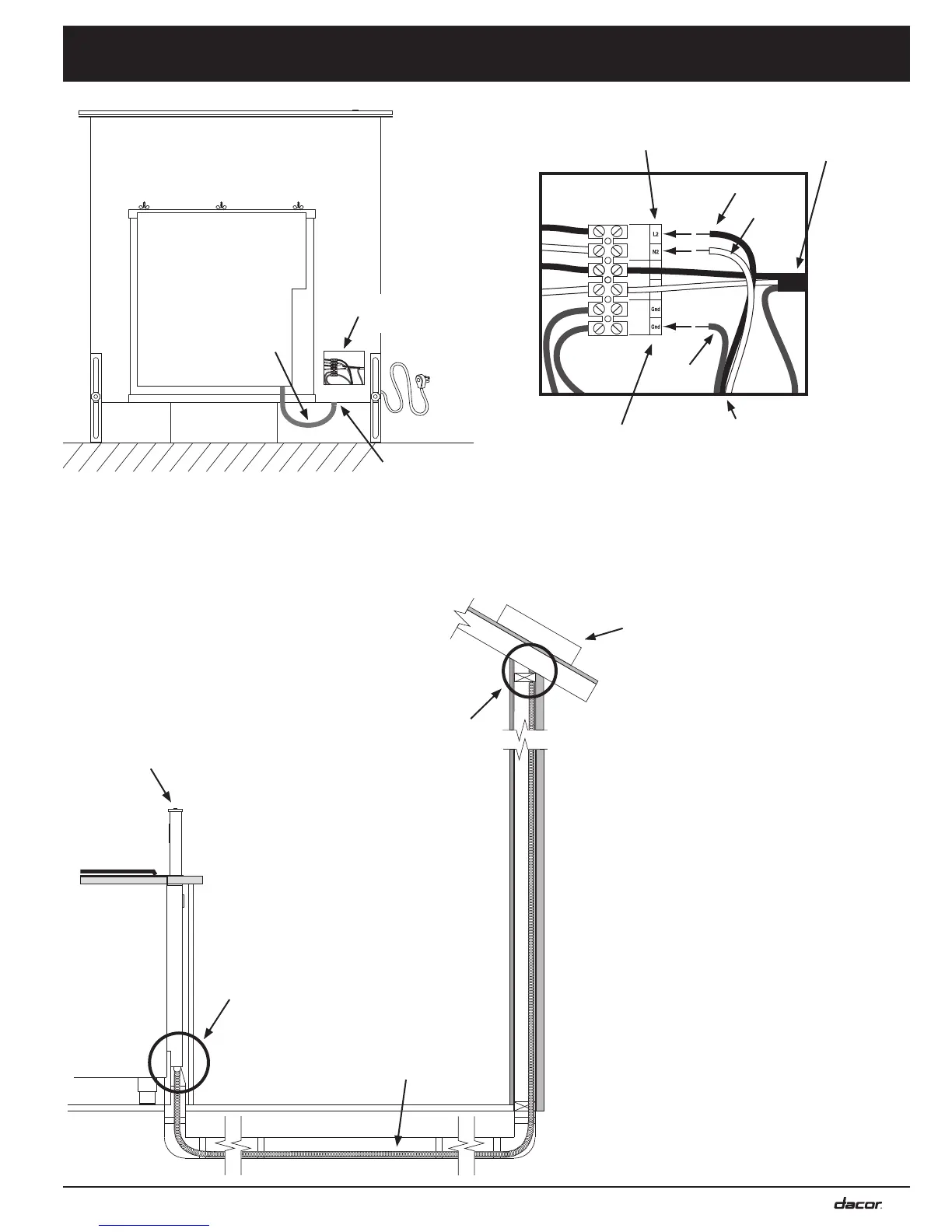

Example of Electrical Installation
with ILHSF or REMP Series Blower
(Side View)
REMP16
remote blower
Connect wires/conduit
according to remote
blower installation
instructions
Downdraft vent
Range
Wiring/conduit from
downdraft vent to remote
(or in-line) blower
See Downdraft Vent
Electrical Access
Panel, above
Electrical Installation - CABP3 Cabinet Blower
Downdraft Vent Electrical Access Panel
Front of unit
Wire Colors : Black = Line (L), White = Neutral (N),
Green = Ground (Gnd)
Electrical connection
from downdraft vent,
match Wire Colors
CABP3 cabinet
blower
Downdraft vent
blower wiring
access hole
Ground
Power
Input
Blower
Output
Blower power wiring/conduit.
Connect other end of wires
to blower terminal block.
Wires to power plug.
Pre-wired at factory.
Do not modify.
Attach ground wire
as shown
Match wire colors to
terminals as shown.
BLACK
WHITE
GREEN
Electrical access
panel
