Dacor ERV36 - Product Dimensions - ERV48 and PRV Series

4

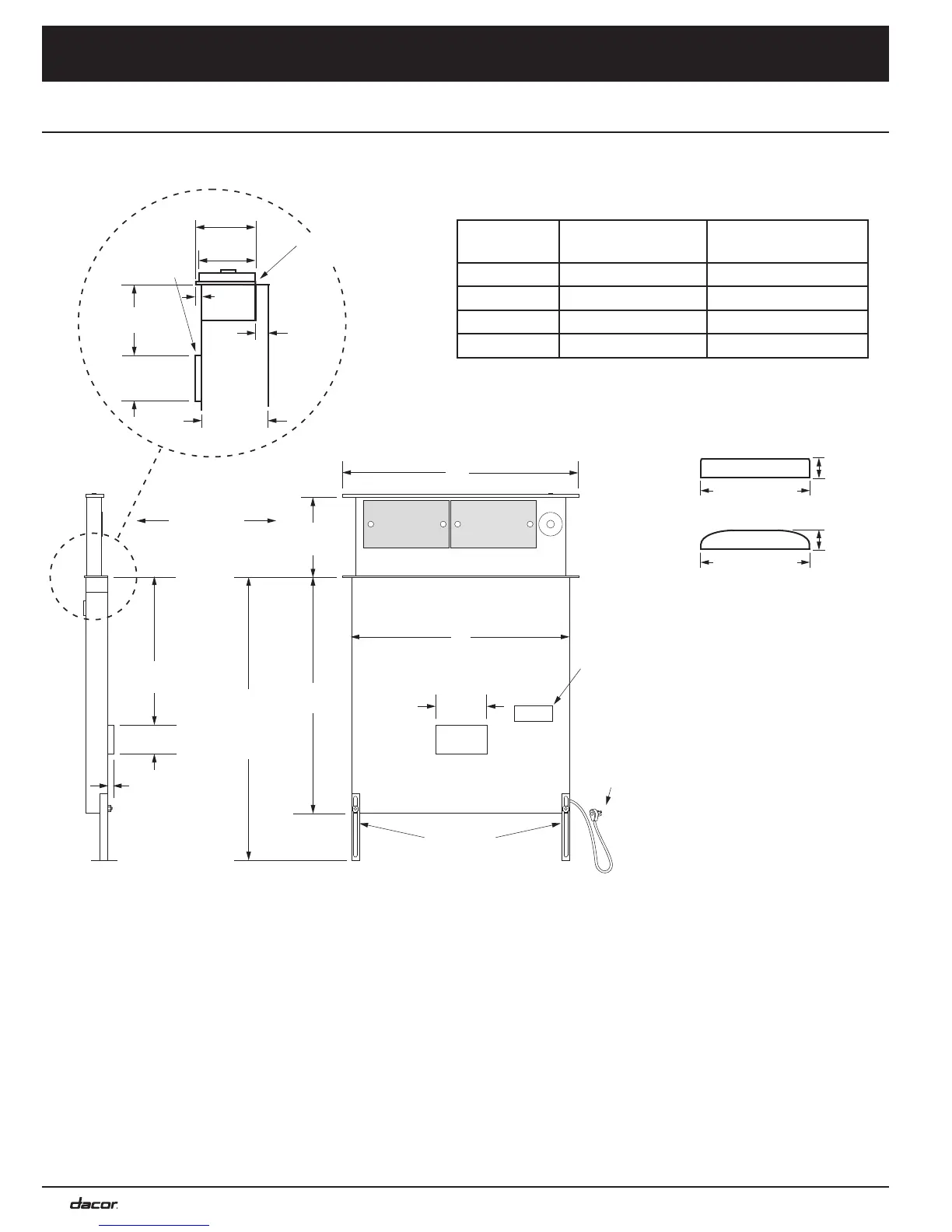

Product Specifications
30 1/4"
(76.8 cm)
to
37 1/4"
(94.6 cm)
10"
(25.4 cm)
30"
(76.2 cm)
18 5/8”
(47.3 cm)
5/16” (8 mm)
thick stiffener
across back
3 3/4"
(9.5 cm)
1"
(2.5 cm)
28" 3-prong
grounded
power cord
Vent shown
in raised
position
Product
data label
Motor
cover
Front of unit
6"
(15.2 cm)
2 9/16"
(6.5 cm)
9/16"
(1.4 cm)
2 1/2"
(6.4 cm)
1 15/16"
(4.9 cm)
B
A
Adjustable
anchor legs
2 1/8"
(5.4 cm)
2 3/16"
(5.6 cm)
3/16"
(5 mm)
Top cap with
vent down
Tolerances: ±1/16” (±1.6 mm) unless otherwise stated
Model
Number
A - Top Cap
Width
B - Chassis
Width
ERV48 48” (121.9 cm) 43 3/8” (110.2 cm)
PRV30 30” (76.2 cm) 27 3/8” (69.5 cm)
PRV36 36” (91.4 cm) 33 3/8” (84.8 cm)
PRV46 46” (116.8 cm) 43 3/8” (110.2 cm)
See page 9 for exhaust
locations and dimensions.
* Maximum height of
downdraft vent must
not exceed maximum
specified counter height
for cooking appliance. See
installation instructions for
cooking appliance.
*
2 1/8" (5.4 cm)
3/8"
(1.0 cm)
2 1/8" (5.4 cm)
ERV top cap - side view
PRV top cap - side view
7/16"
(1.1 cm)
Product Dimensions - ERV48 and PRV Series
