• Phillips screwdriver
• Electric drill
• 1/2”, 5/8” and 3/32” drill bits
• 1-1/2” wood bit or metal hole cutter
(if metal cabinet is used)
• Saw to cut exhaust opening
(if needed)
• Protective drop cloth for product and
range - you may also use carton for
protection
• Scissors
• Pencil
• Tape measure
• Tape

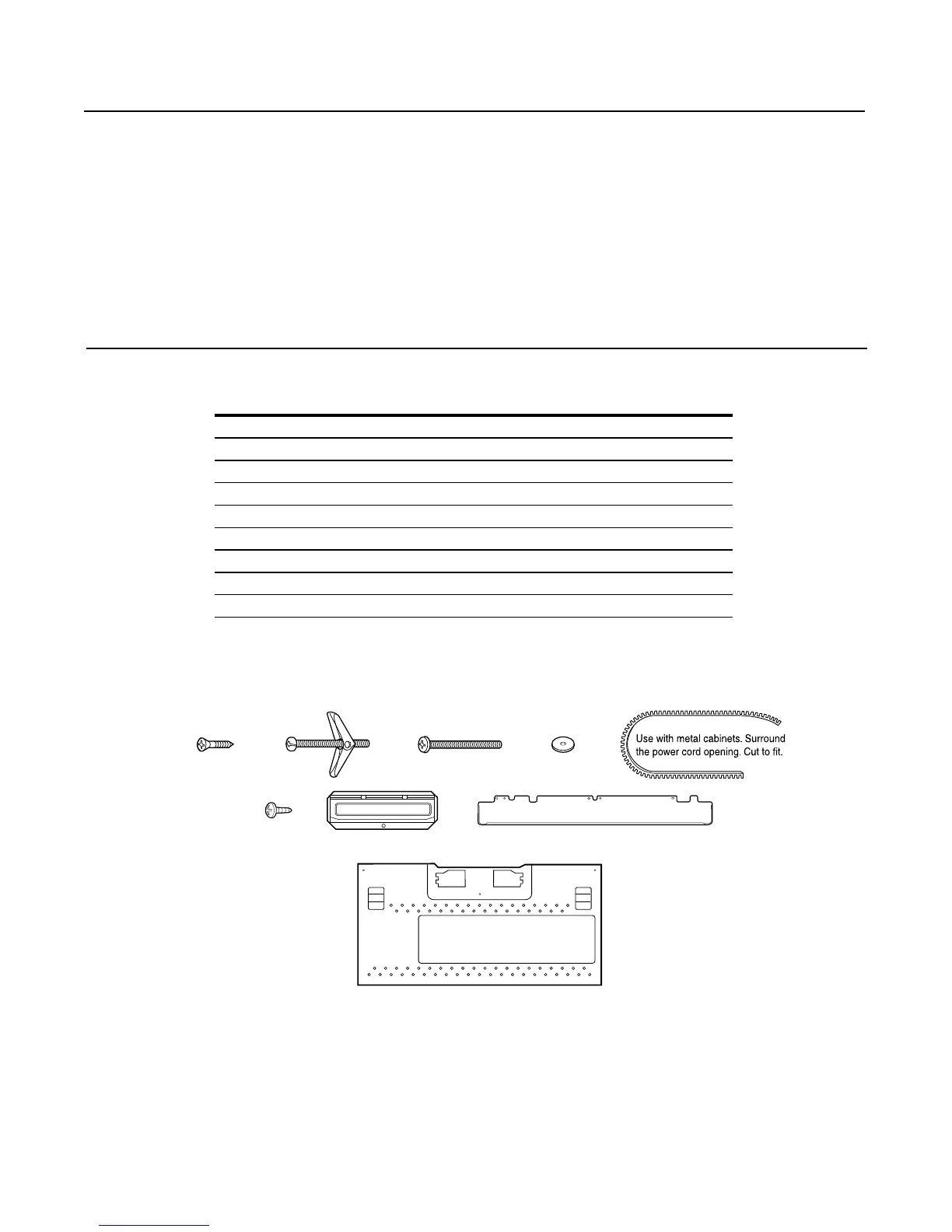

Figure 4
Parts shown not to common scale.
ITEM NAME QUANTITY
1 Wood Screw 5 x 30 mm 6
2 Toggle Bolt 3/16 inch 4
3 Top Cabinet Screw 5 x 60 mm 2
4 Flat Washer 30 mm diameter 2
5 Grommet 1
6 Tapping Screw 4 x 12 mm 1
7 Exhaust Damper Assembly 1
8 Deector 1
9 Mounting Plate 1
The installation hardware (items 1 - 8) packed with the oven should contain the following:
5 TOOLS RECOMMENDED FOR INSTALLATION
6 INSTALLATION HARDWARE
The following items should also be included with the microwave-hood: grease lters (2), charcoal lter, turntable support, turn-
table (glass), Use & Care Manual, Dacor Convection Microwave Cookbook, Warranty card, turntable racks (2), wall template,
top cabinet template
1 5
6 7
2 3 4
8
9
