7

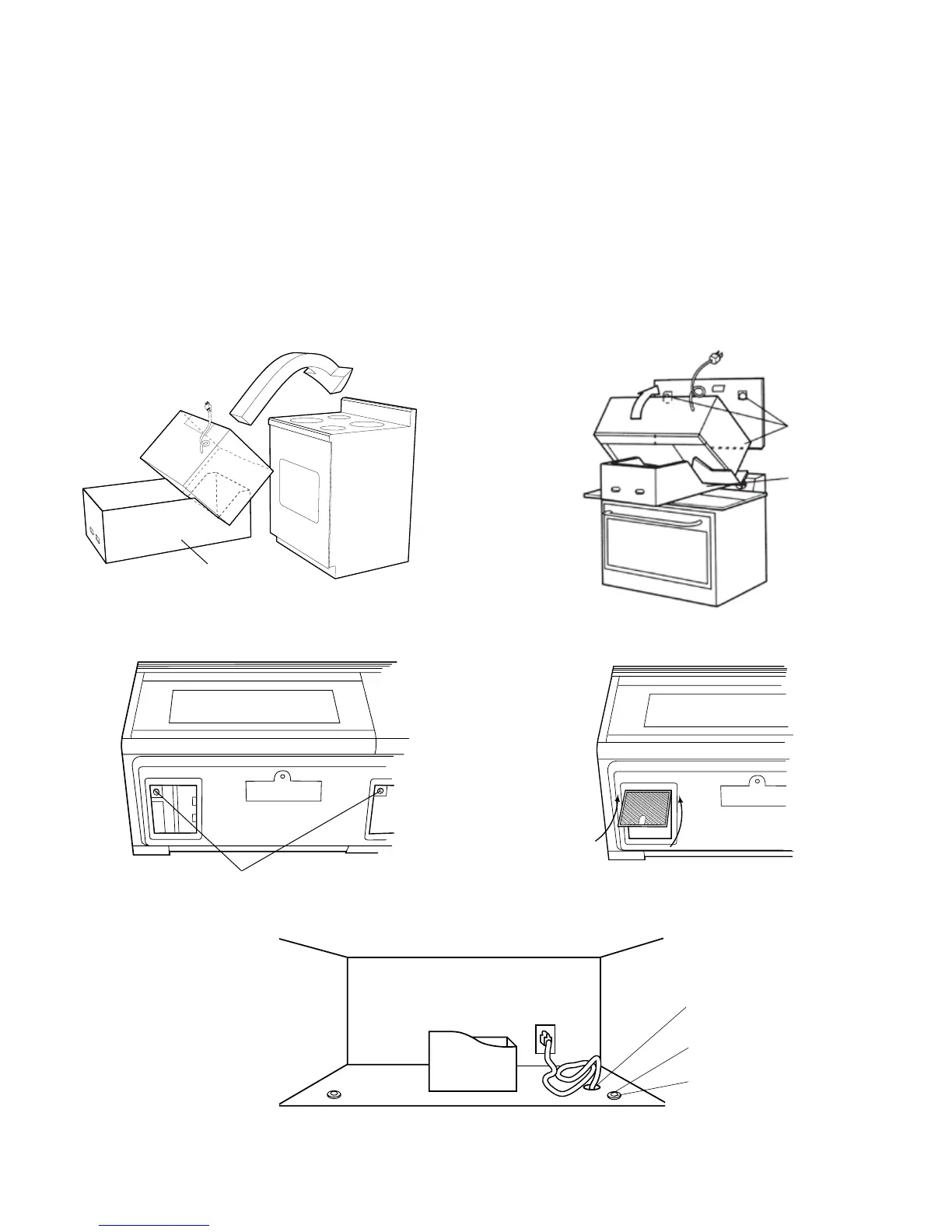

Figure 17
3. Place the oven and the carton portions together on the top of the range. See Fig. 17. Slide carton toward backsplash until it
stops. Align the lower back edge of the oven with the mounting plate.
4. Thread the power supply cord through the hole made in the bottom of the top cabinet.
5. Hang the oven on the lower edge of the mounting plate. See Fig. 18. Take care that the power cord is able to clear the edge
of the hole as the oven is rotated upward. (In the case of a non-recessed bottom in the top cabinet, the hole for the cord may
need to be enlarged.) Remove the carton portions.
6. Tighten the two unit mounting screws located in the grease lter openings. See Fig. 19.
7. Install grease lters by tting into the opening. Push back and up into place. See Fig. 20.
8. Use the two top cabinet screws (C) and two at washers (D), supplied in the installation hardware, to attach the unit to the
top cabinet. See Fig. 21.
9. Make a bundle of the power supply cord and place it inside the cabinet.
C
D
Figure 18
Figure 19 Figure 20
Figure 21
Mounting Screws
Grommet (for metal
cabinet only)
Hang at
these
locations
(B)
(B)
To Next Page
