3 1/8"
(79ram)
3 1/8"
(79mm)
(762mm)
4" (102ram)
21"
Chassis height
(533mm)
Vertical
I combustible
surface
Rear
wall
27 1/2"
(699mm)
19 7/8" (505mm)
25" (635mm) _ J
Minimum _.,__ 2"
(51 mm) Min

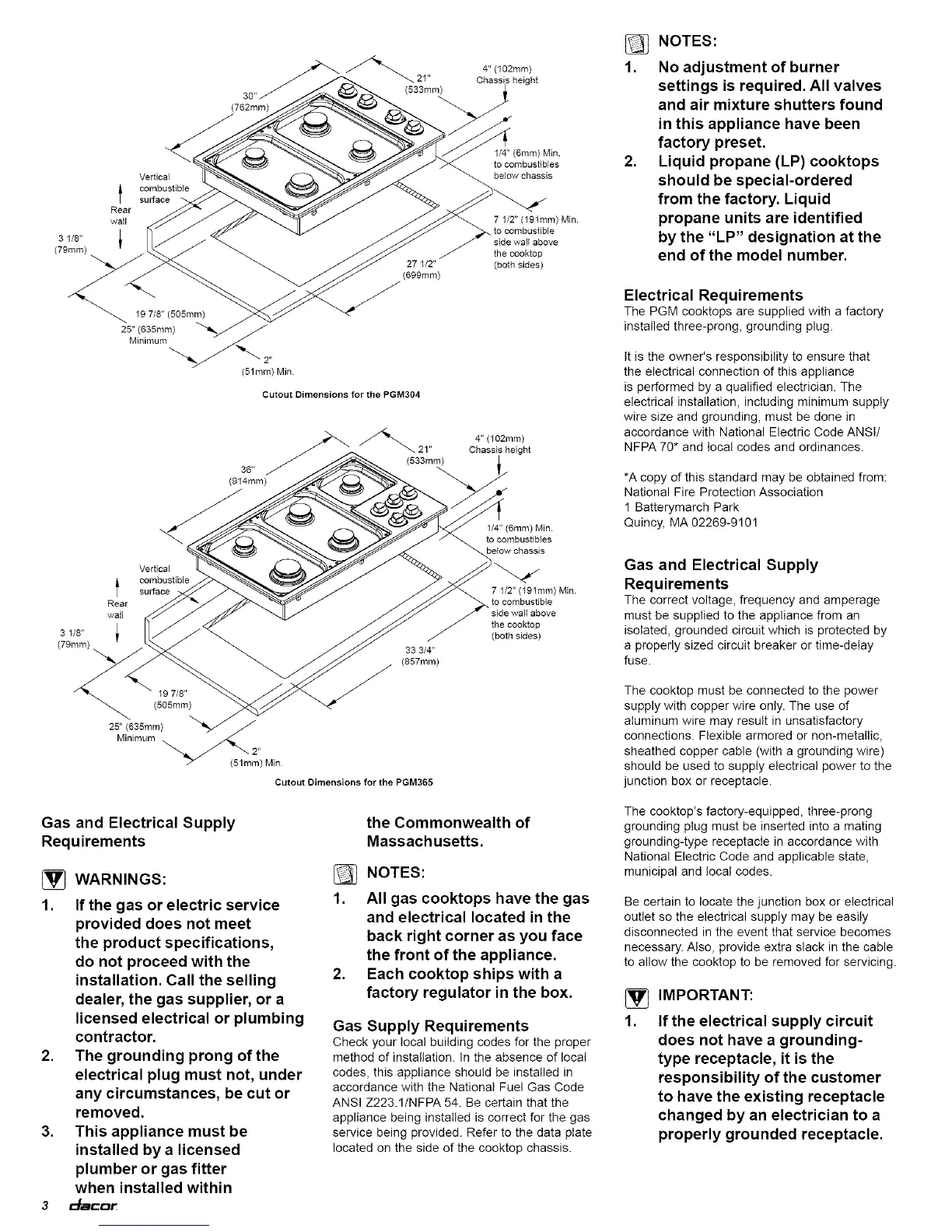

Cutout Dimensions for the PGM304
38"
(914mm)
4" (102ram)
21" Chassis height
(533mm)
Vertical
combustible
surface
33 3/4"
(857mm)
1/4" (6mm) Min.
to combustibles
below chassis
7 1/2" (191mm) Min.
to combustible
side wall above
the cooktop
(both sides)
1/4" (6mm) Min.
to combustibles
below chassis
7 1/2" (191mm) Min.
to combustible
side wall above
the cooktop
(both sides)
1.
.
NOTES:
No adjustment of burner
settings is required. All valves
and air mixture shutters found
in this appliance have been
factory preset.
Liquid propane (LP) cooktops
should be special-ordered
from the factory. Liquid
propane units are identified
by the "LP" designation at the
end of the model number.
Electrical Requirements
The PGM cooktops are supplied with a factory
installed three-prong, grounding plug.
It is the owner's responsibility to ensure that
the electrical connection of this appliance
is performed by a qualified electrician. The
electrical installation, including minimum supply
wire size and grounding, must be done in
accordance with National Electric Code ANSI/
NFPA 70* and local codes and ordinances.
*A copy of this standard may be obtained from:
National Fire Protection Association
1 Batterymarch Park
Quincy, MA 02269-9!01
Gas and Electrical Supply
Requirements
The correct voltage, frequency and amperage
must be supplied to the appliance from an
isolated, grounded circuit which is protected by
a properly sized circuit breaker or time-delay
fuse.
19 7/8"
(505ram)
25" (635mm) _ /
Minimum __1(51m_') Min
Cutout Dimensions for the PGM385
The cooktop must be connected to the power
supply with copper wire only. The use of
aluminum wire may result in unsatisfactory
connections. Flexible armored or non-metallic,
sheathed copper cable (with a grounding wire)
should be used to supply electrical power to the
junction box or receptacle.
Gas and Electrical Supply
Requirements
WARNINGS:
1. If the gas or electric service
provided does not meet
the product specifications,
do not proceed with the
installation. Call the selling
dealer, the gas supplier, or a
licensed electrical or plumbing
contractor.
2. The grounding prong of the
electrical plug must not, under
any circumstances, be cut or
removed.
3. This appliance must be
installed by a licensed
plumber or gas fitter
when installed within
3 =::_=lcar
the Commonwealth of
Massachusetts.
NOTES:
1. All gas cooktops have the gas
and electrical located in the
back right corner as you face
the front of the appliance.
2. Each cooktop ships with a
factory regulator in the box.
Gas Supply Requirements
Check your local building codes for the proper
method of installation. In the absence of local
codes, this appliance should be installed in
accordance with the National Fuel Gas Code
ANSI Z223.1tNFPA 54. Be certain that the
appliance being installed is correct for the gas
service being provided. Refer to the data plate
located on the side of the cooktop chassis.
The cooktop's factory-equipped, three-prong
grounding plug must be inserted into a mating
grounding-type receptacle in accordance with
National Electric Code and applicable state,
municipal and local codes.
Be certain to locate the junction box or electrical
outlet so the electrical supply may be easily
disconnected in the event that service becomes
necessary. Also, provide extra slack in the cable
to allow the cooktop to be removed for servicing.
1.
IMPORTANT:
If the electrical supply circuit
does not have a grounding-
type receptacle, it is the
responsibility of the customer
to have the existing receptacle
changed by an electrician to a
properly grounded receptacle.
