ENGINE

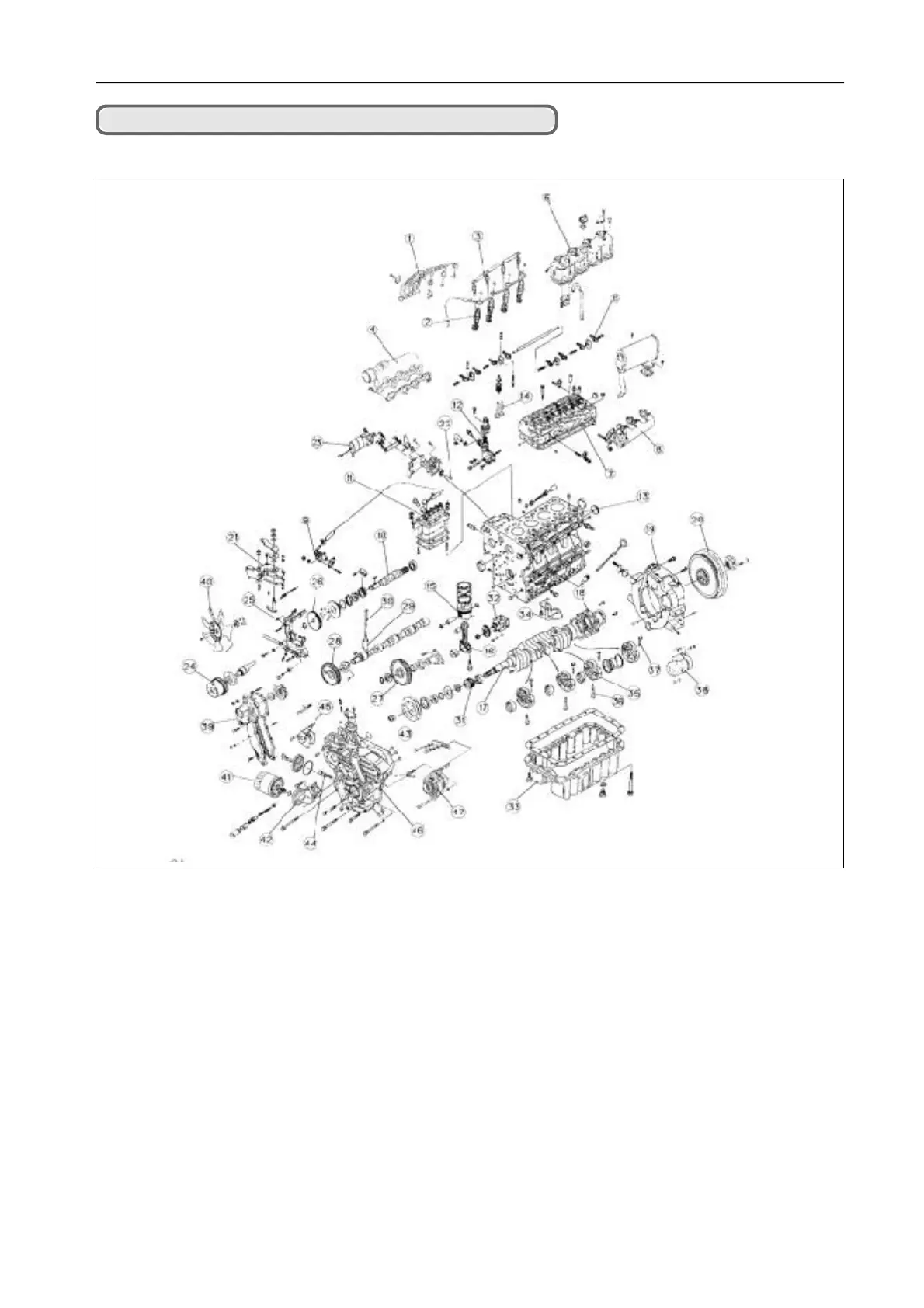

A. ENGINE DISASSEMBLED VIEW
(1) Injection Pipe (13) Cylinder Block (25) Governor Fork Lever (37) Bearing case Screw 1
(2) Injection Nozzle (14) Va l v e (26) Injection Pump Gear (38) Starter
(3) Glow Plug (15) Piston (27) Idle Gear (39) Water Pump Housing
(4) Inlet Manifold (16) Connecting Rod (28) Cam Gear (40) Fan
(5) Cylinder head Cover (17) Crankshaft (29) Ta p p e t (41) Oil Filter
(6) Rocker Arm (18) Bearing Case Cover(30) Push Rod (42) Oil Filter Flange
(7) Cylinder Head (19) Flywheel housing (31) Crank Gear (43) Fan Drive Pulley
(8) Exhaust manifold (20) Flywheel (32) Oil Pump (44) Ball
(9) Fuel Feel Pump (21) Speed Control Plate (33) Oil Pan (45) Hourmeter Unit
(10) Fuel Camshaft (22) Stop Lever (34) Strainer (46) Gear Case
( 11) Injection Pump (23) Stop Solenoid (35) Main Bearing Case (47) Alternator
(12) Thermostat (24) Fan Pulley (36) Bearing Case Screw 2
3.3 CHECKING, DISASSEMBLING AND SERV I C I N G
