ENGINE
3) Connection Rod and Piston

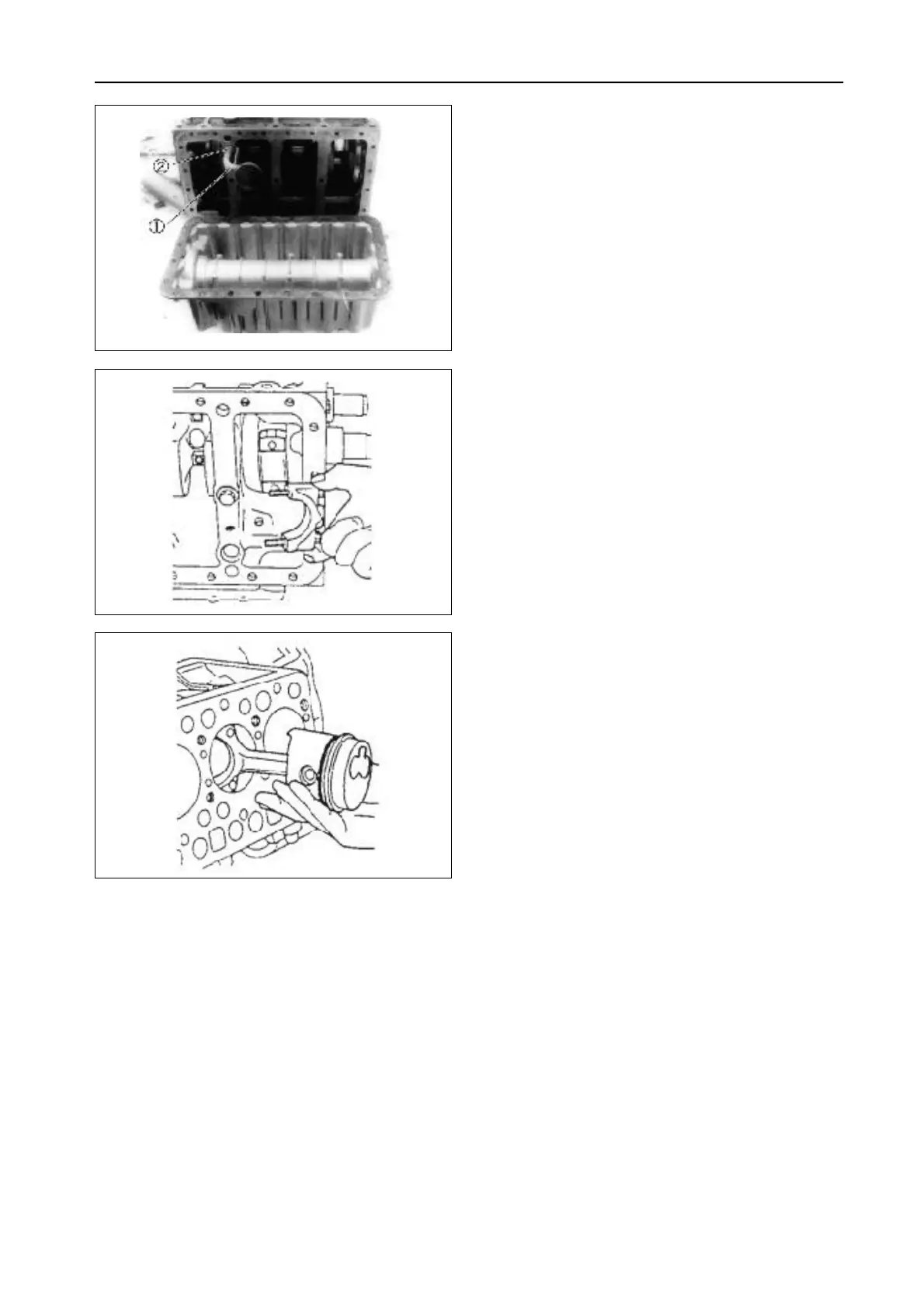

(A) Oil Pan and oil filter
1. Remove the engine stand and the oil pan.
2. Remove the strainer (1).
(When reassembling)
• Be sure to install the O-ring (2) between the strainer
and the cylinder block.
(1) Strainer (2) O-ring
(I) Piston and Connecting Rod
1. Remove the screws and the connecting rod cap.
2. Push out the rod and piston assembly.
(When reassembling)
• Apply oil to the crankpin bearing, cylinder wall and
connecting rod cap screw.
• Insert the rod and piston assembly with the mark on
the rod facing the injection pump, using a piston ring
c o m p r e s s o r.
I M P O RTANT :
• Mark the cylinder number on the piston and
connecting rod to prevent interchanging.
• Carefully insert the piston and ring assembly in the
c y l i n d e r, compressing the rings not to damage the
chrome-plate on the piston rings.
• If connecting rod cap screws can not be screwed to
the end by hand, replace the screw.
