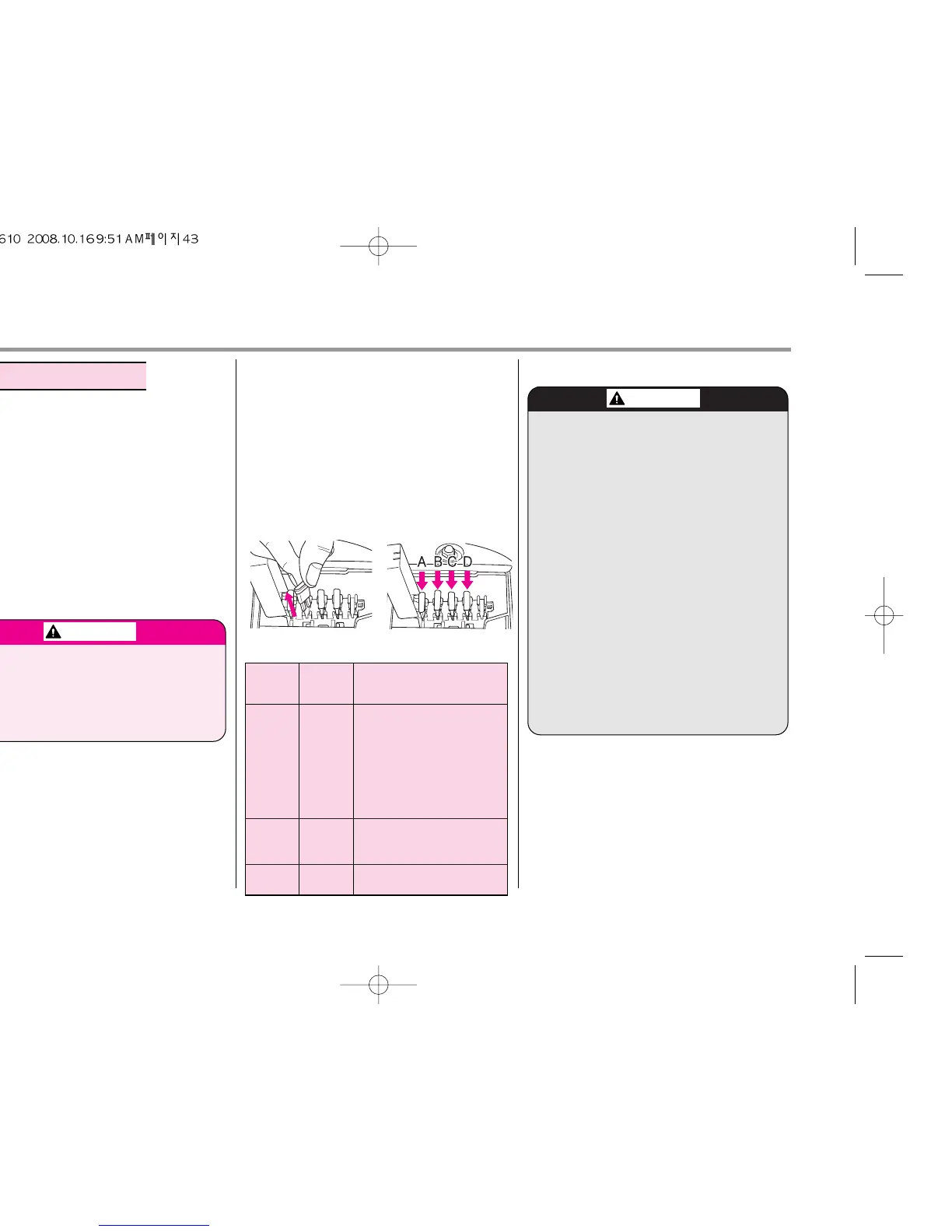

Turn off the main switch to see if the fuse
is severed. If the fuse is severed, exchange
the fuse into a fuse with same capacity.
Remove the four flange bolts, and take
off the right lower cover.
●Fuse is installed in fuse box around the
battery.
●To change a fuse, first take off fuse
cover. Then, remove the disconnected
fuse, and insert the reserved fuse with
same capacity.
●If the fuse immediately becomes severd
after being changed with the new one,
check another problem of the electric
system. contact to Daelim service
center.
FUSE REPLACEMENT
●Do not use screw driver or other metal
parts to remove the fuse, as short
circuit can be occurred to cause
damage to electric system.
●Do not use a fuse having a larger
voltage, as the wire can become
overheated and damaged.
●When replacing any of the electrical
parts (lights and gauges), be sure to
replace them with the recommended
parts. Using different parts can lead to
the fuses burning out or damage to the
battery.
●When washing the vehicle, take special
care not to allow to be splashed in the
area of the fuses.
<DISASSEMBLY> <ASSEMBLY>
●Never use a fuse with a different
rating from that specified. Serious
damage to the electrical system or a
fire may result, causing a dangerous
loss of lights or engine power.
Fuse A
30A
Charging, combi S/W,
regulator
Fuse B
15A
Winker relay, meter
lighting, horn, headlight
(LO/HI), front/rear stop
switch, taillight, fuel meter
Fuse C
15A
Ignition coil, Ecu
O2 sensor
Fuse D
15A
Ecu, Fuel pump relay
