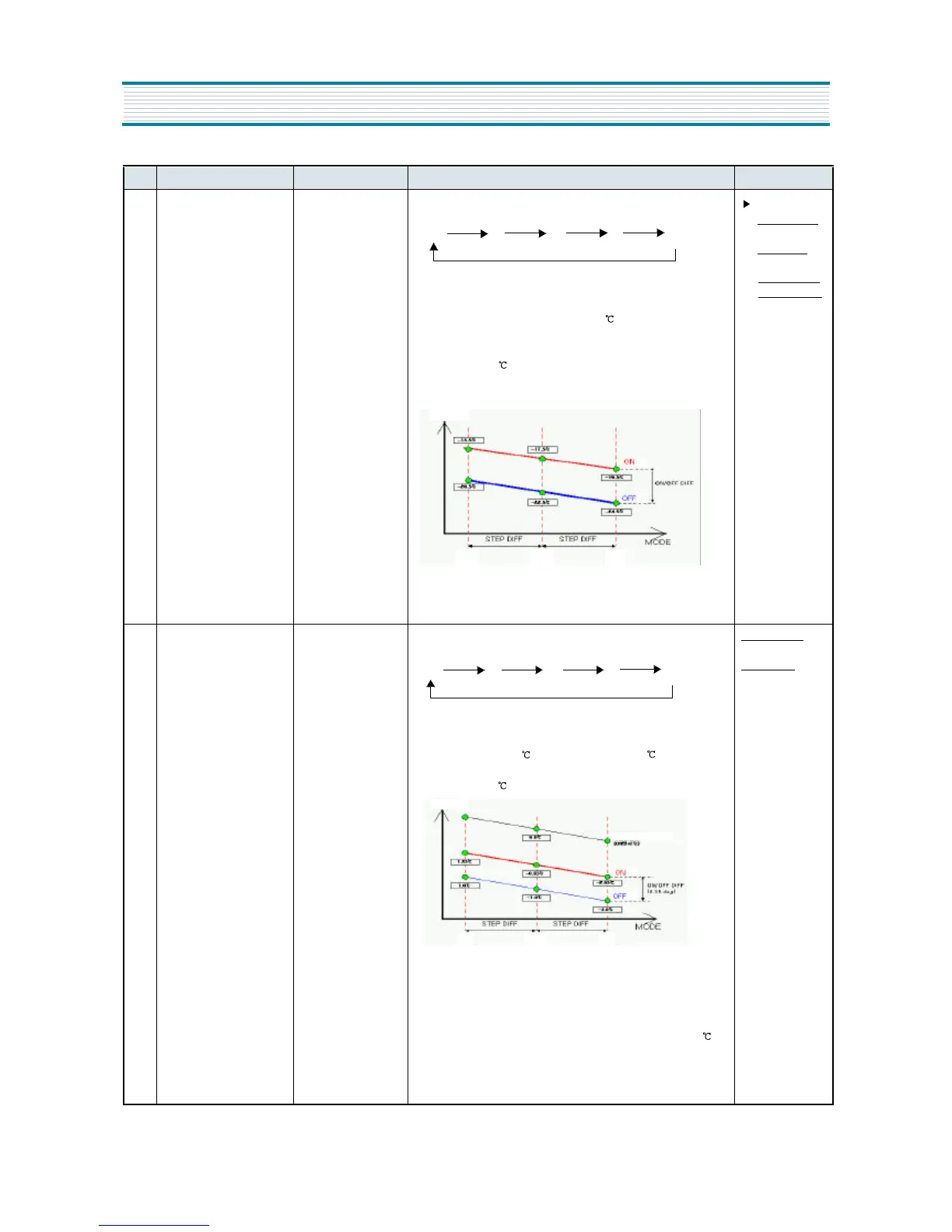

11
2 Temperature Regulation
of Freezer Compartment
1. COMP
2. F-FAN
1. Temperature regulation by FRZ.SET Button.
2. COMP and F-Fan are controlled by On/Off point of each mode.
3. Freezer Compartment ON / OFF DIFF : 5
(Middle(2)-OFF : -22.5 )
4. “ 3 “ / “ 1” DIFF : 2
5. Control Point of each Mode
6. COMP and F-FAN are ON during Q.F Mode regardless of F-Sensor.
(Approximately 150minutes)
Reference
ON/OFF Diff :
Fixed by Micom
STEP Diff :
Fixed by Micom
Comp&C- Fan
are Coworking
3 Temperature Regulation of
Refrigerator (Freshfood
Compartment)
1. COMP
2. R-FAN
1. Temperature regulation by REF.SET Button.
2. R-Fan is controlled by On/Off-point of each mode.
3. ON / OFF DIFF : 0.35 (Middle(“ 1” ) Off-point : -1.0 )
4. “ 3” / ” 1” DIFF : 2
5. Prevention of Weak-refrigeration
1) When weak-refrigeration is sensed, COMP turns on regardless of
F-Sensor.
2) When R-Sensor reaches to R-Fan Off-point, COMP is controlled by
F-Sensor and R-FAN turns off.
3) Sensing point of weak-refrigeration ; R-S Off-point of each mode +7
4) Finishing point of weak-refrigeration ; same as R-S Off-point
6. Q.R(Quick Refrigeration) continues for 40minutes.
ON/OFF, Diff :
Can not be changed
STEP DIFF :
Can not be changed
NO CONTROL FUNCTION CONTROL OBJECTS CONTENTS REMARK
(1) 1 2 3 Q.F
(1) 1 2 3 Q.F
Temp.
1
2 3
1 2 3
Temp.
Weak-Refrigeration
OPERATION AND FUCTIOLNS
