EXPLODED VIEW AND PARTS LIST

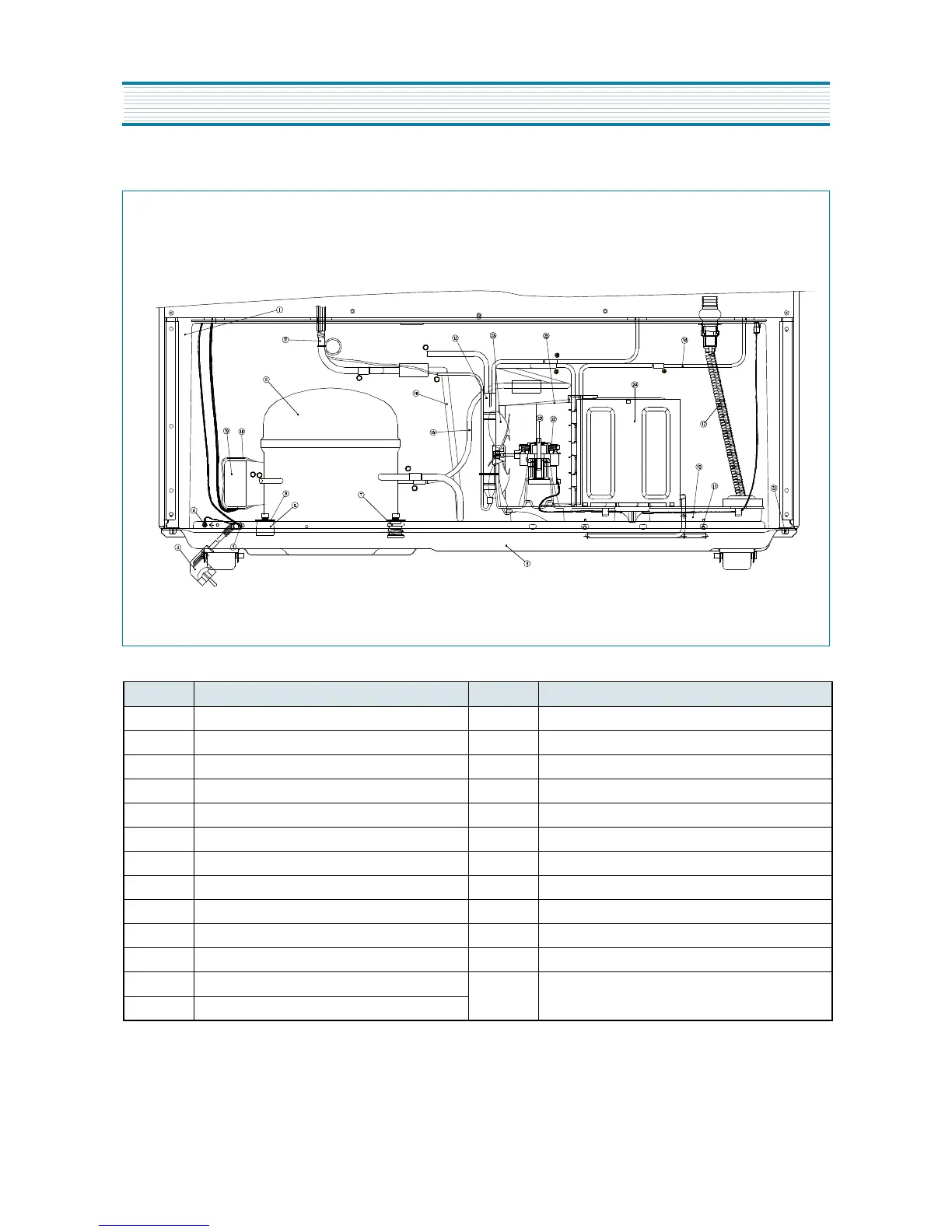

3. MACHINE ROOM EXPLODED VIEW AND PARTS LIST
NO PART NAME NO PART NAME
1 BASE CAB *B 14 PIPE HOT
2 SCREW TAPPING 15 PIPE CONN A
3 CORD POWER AS 16 PIPE SUC CONN
4 SCREW MACHINE 17 PIPE SUCTION AS
5 ABSORBER COMP 18 BAND RELAY
6 COMPRESSOR 19 SWITCH P-RELAY AS
7 ABSORBER COMP AS 20 FIXTURE C FAN
8 WASHER SPECIAL 21 SCREW MACHINE
9 BASE COMP AS 22 MOTOR C AS
10 CASE VAPORI 23 C FAN
11 SCREW TAPPING 24 PIPE WICON AS
12 HOSE DRN AS
25 COVER C FAN
13 DRYER AS
To Next Page
