10
(1) Remove the gasket door from door weld as.
(2) Remove the door frame from door weld as.
(3) Remove the stopper hinge top from door weld as.
(4) Remove the spring and the hook.
(5) Remove the barrier screen outer from door frame.
(6) Reverse the above steps for reassembly.

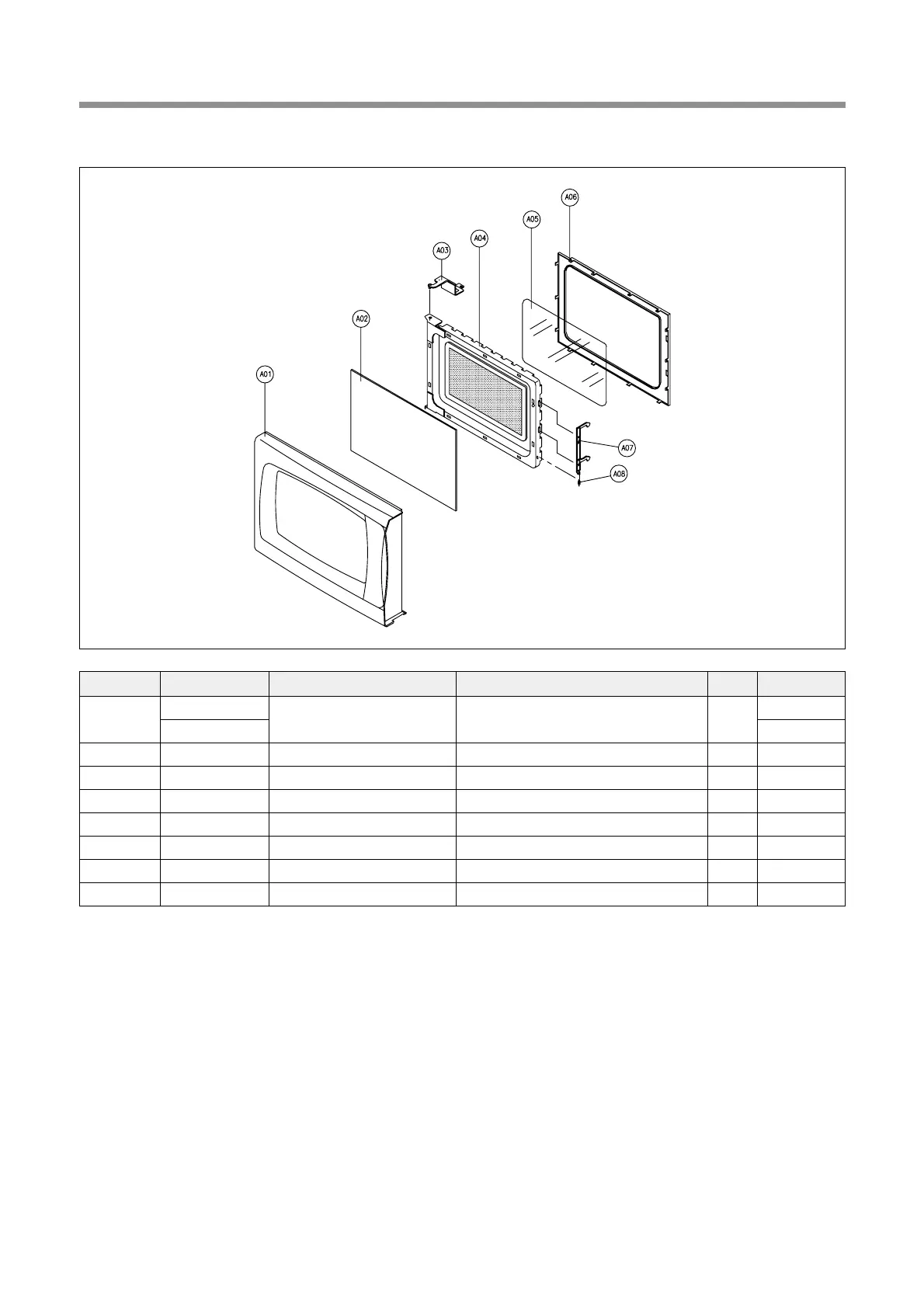

3. To remove door parts.
REF NO. PART CODE PART NAME DESCRIPTION Q’TY REMARK
A01 FRAME DOOR ABS SG-0760D SG-175 1
3512208500
KOG-3Q17(12)
A02 3517007300 BARRIER-SCREEN *O PET T0.125 1
A03 3515204100 STOPPER HINGE *T AS KOR-63150S 1
A04 3511719600 DOOR WELD AS KOR-6C0B5S 1
A05 3517002800 BARRIER SCREEN *I POLYESTER TO.1 1
A06 3512300210 GASKET DOOR PP 1
A07 3513100730 HOOK POM BLACK 1
A08 3515101320 SPRING HOOK HSW-3 1
In this Service Manual, some parts can be changed for improving, their performance without notice in the parts list. So, if you need the
latest parts information, please refer to PPL(Parts Price List) in Service information Center(http://svc.dwe.co.kr)
