5

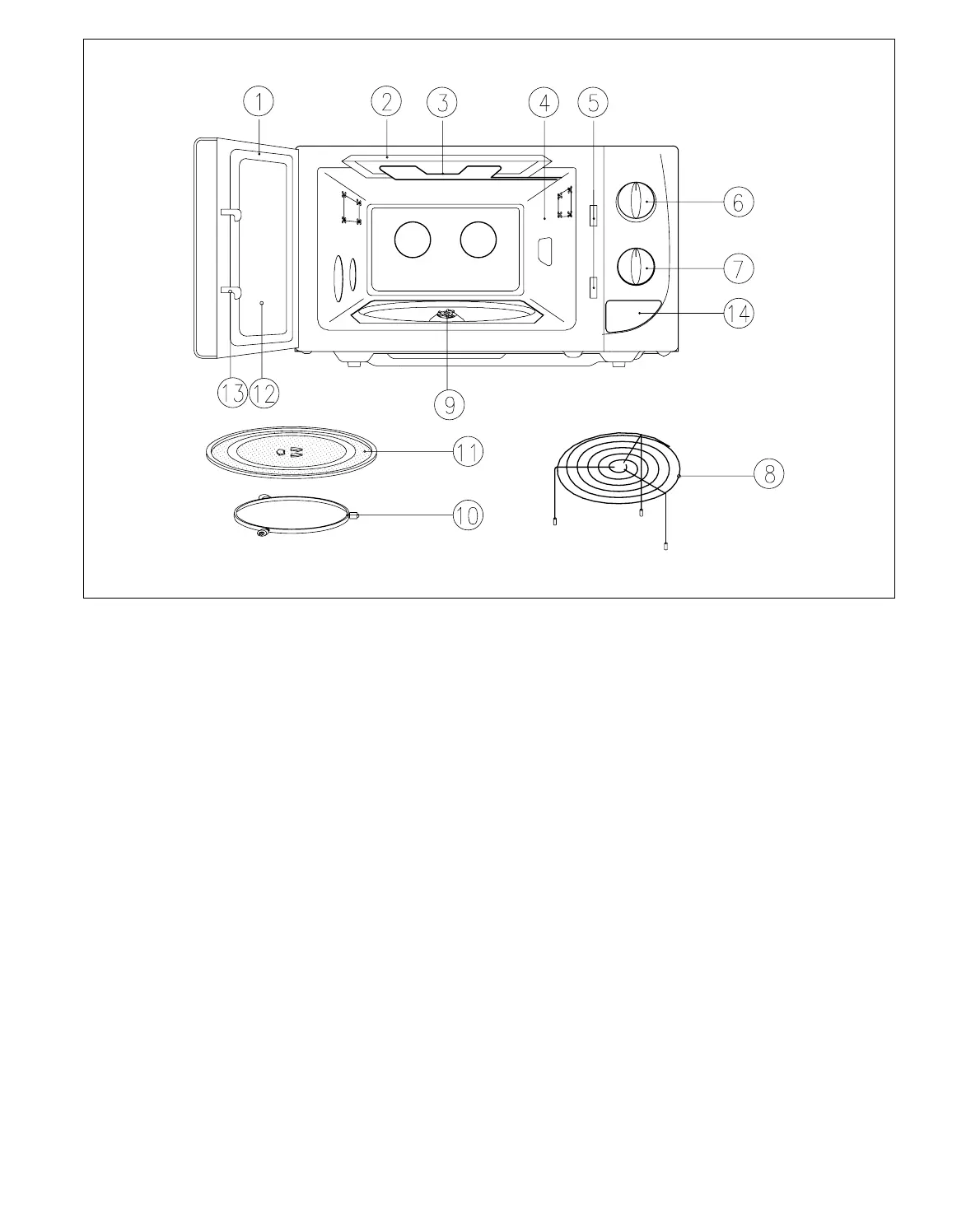

2. FEATURE DIAGRAM
1 Door seal - Door seal maintains the microwave energy within the oven cavity and prevents microwave leakage.
2 Reflector (Insulator Heater)
3 Heating Element
4 Oven cavity
5 Safety interlock system
6 Knob V.P.C - Used to select a microwave power level.
7 Knob timer - Used in setting cooking time for all functions.
8 Metal Rack
9 Coupler - This fits over the shaft in the center of the ovens cavity floor. This is to remain in the oven for all cooking.
0 Roller guide - This must always be used for cooking together with the glass cooking tray.
q Glass cooking tray - Made of special heat resistant glass. Food in a proper receptacle is placed on this tray for
cooking.
w Door viewing screen - Allows viewing of food. The screen is designed so that light can pass through, but not the
microwave.
e Door hook - When the door is closed, it will automatically shut off. If the door is opened while the oven is operat-
ing, the magnetron will immediately stop operating.
r Door open button
