1) Remove the screw which secure the control panel, push two snap fits and draw forward the control panel assembly.
2) Remove two screws which secure the timer assembly.
3) Remove the timer assembly.
4) Pull out the timer knob from timer.
5) Pull out the timer coupler from timer.
6) Remove the screw which secure the V.P.C coupler.
7) Pull out the V.P.C coupler, V.P.C knob and flat spring from the control panel.
8) Pull out the cover knob slide.
9) Remove the screw which secure the lever stopper.
10) Pull out the lever stopper, knob slide and flat spring from the control panel.
11) Reverse the above steps for reassembly.

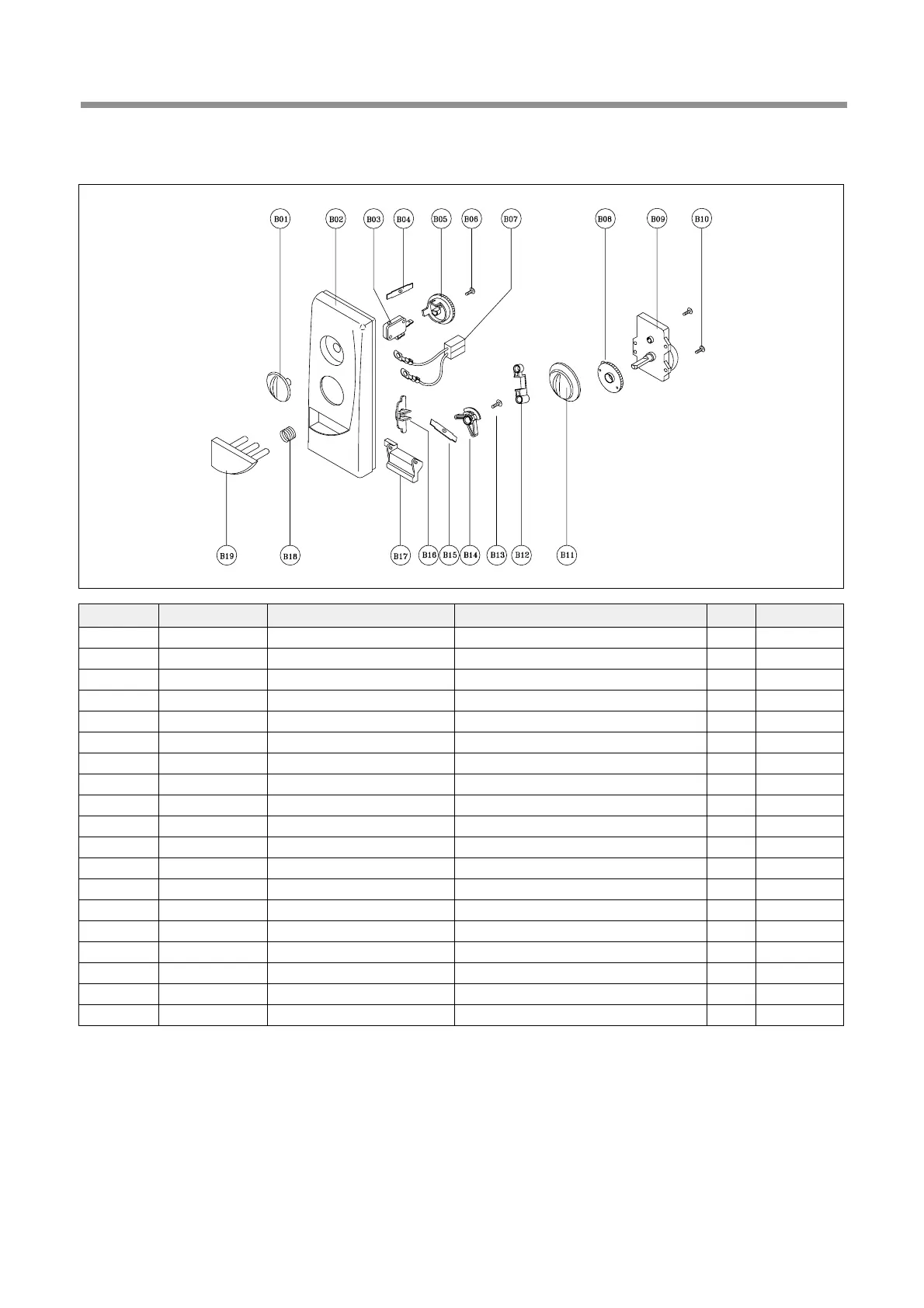

REF NO. PART CODE PART NAME DESCRIPTION Q’TY REMARK
B01 3513407230 KNOB VPC HIPS 1
B02 3516729030 CONTROL-PANEL HIPS 1
B03 4415A17352 SW MICRO VP-533A-OF SPNO #187 200G 1
B04 3515101600 SPRING FLAT SUS 301 T0.5 1
B05 3517400510 COUPLER VPC KNOB POM 1
B06 7122401211 SCREW TAPPING T2S TRS 4X12 MFZN 1
B07 3512766301 HARNESS TIMER KOG-37150S 1
B08 3517400400 COUPLER TIMER POM 1
B09 3518205500 TIMER NT35MKD27E-P BROWNER ONLY 1
B10 7122401211 SCREW TAPPING T2S TRS 4X12 MFZN 2
B11 3513407220 KNOB HIPS 1
B12 3511410200 COVER KNOB SLIDE PP 1
KOG-3Q17
B13 7122401211 SCREW TAPPING T2S TRS 4X12 MFZN 1
KOG-3Q17
B14 3513703000 LEVER STOPPER POM 1
KOG-3Q17
B15 3515101600 SPRING FLAT SUS 301 T0.5 1
KOG-3Q17
B16 3513407300 KNOB SLIDE HIPS 1
KOG-3Q17
B17 3513702700 LEVER DOOR OPEN PP 1
B18 441G430171 SPRING BUTTON SWP DIA. 0.7 1
B19 3516911000 BUTTON DOOR OPEN ABS SG-175, SG-0760D 1
In this Service Manual, some parts can be changed for improving, their performance without notice in the parts list. So, if you need the
latest parts information, please refer to PPL(Parts Price List) in Service information Center(http://svc.dwe.co.kr)
