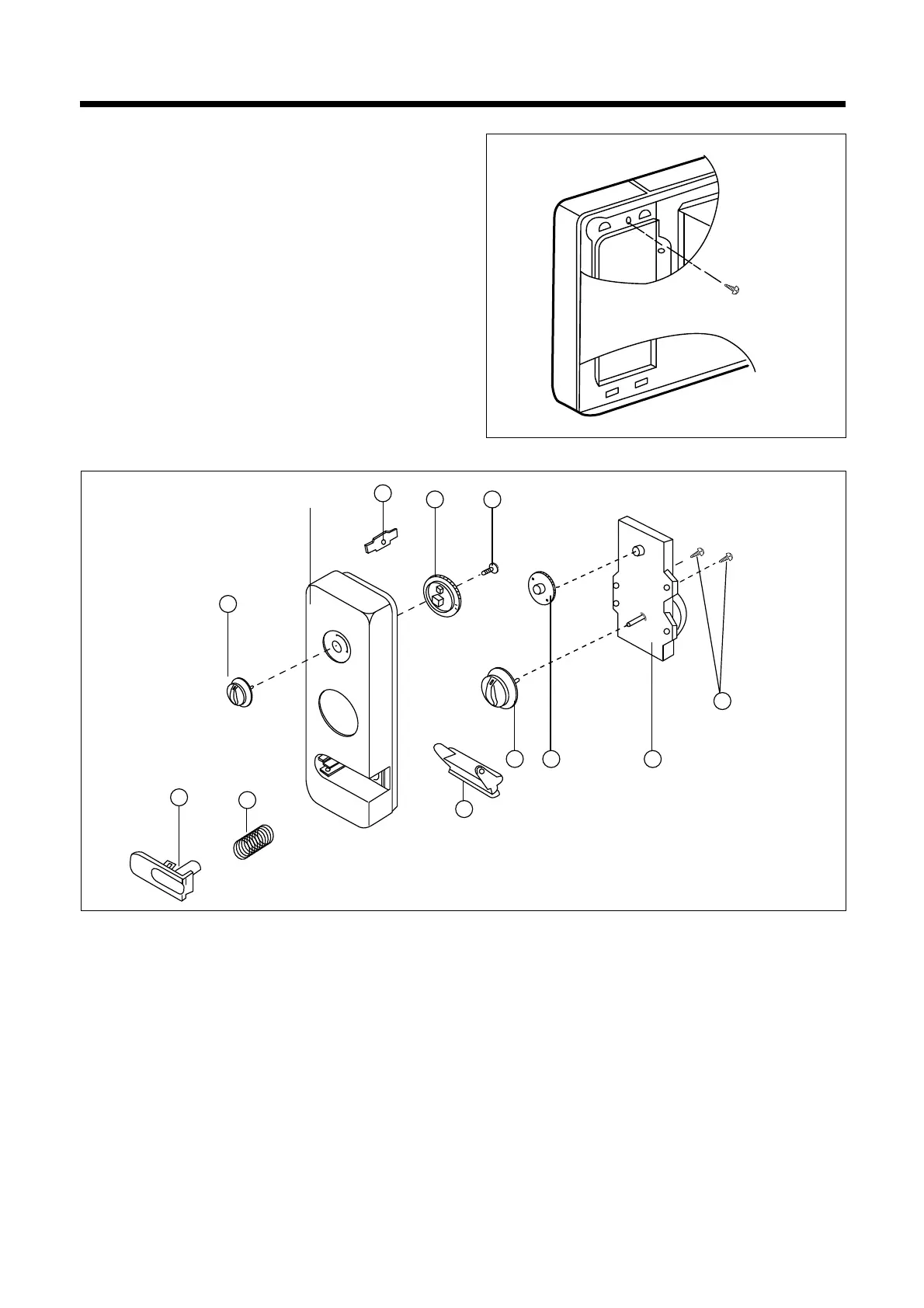

5. To remove control panel parts.
(1) Remove the screw which secure the control panel, push
up two snap fits and draw forward the control panel
assembly.
(2) Remove the door open lever ¤ from the control panel.
(3) Remove two screws ¤Łwhich secure the timer assembly ¤Ø.
(4) Remove the timer assembly ¤Ø.
(5) Pull out the timer knob ¤Œfrom the timer assembly ¤Ø.
(6) Pull out the timer coupler ¤ºfrom the timer assembly ¤Ø.
(7) Remove the screw ¤ which secure the V.P.C coupler ¤ .
(8) Oull ou the V.P.C coupler ¤ , V.P.V knob ¤ , and flat spring ¤ from the control panel.
(9) Remove the door open button ¤ and button spring ¤æfrom the control panel.
(10) Reverse the above steps for reassembly.
