44
Fig. 2
The touch control circuit controls the ON-OFF time of RELAY “1” in order to vary the output power of the
microwave oven from “power level p-20“ to “P-H1 (100%) power”.
One complete ON and OFF cycle of the RELAY “1” is 29 seconds. The relation between indications on the control
panel and the output of the microwave oven is as shown in Fig. 3

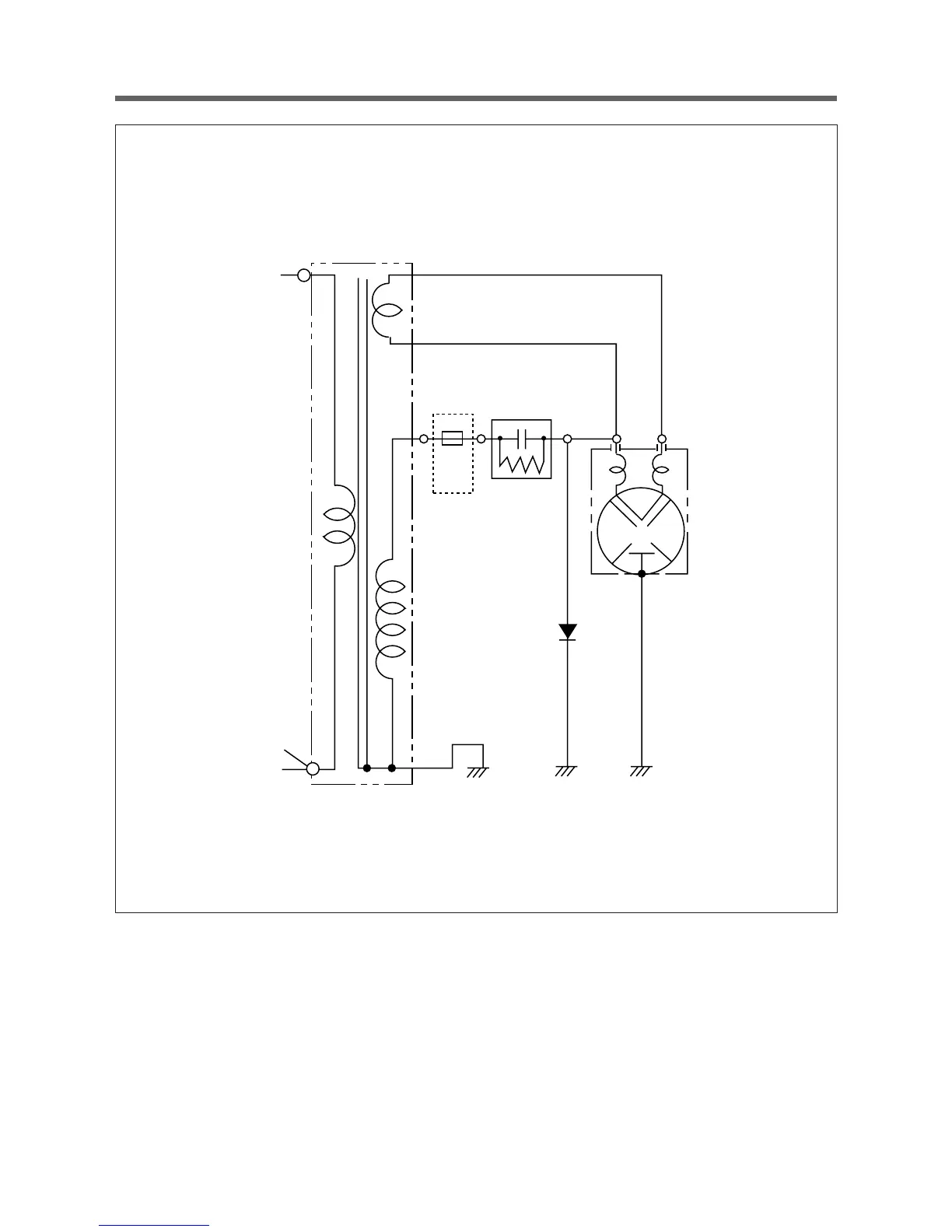

HIGH VOLTAGE
TRANSFORMER
H.V.
CAPACITOR
MAGNETRON
H.V. DIODE
H.V.
FUSE
KOR-65A52S
KOR-81A52S
2S TYPE
