DAEWOO ELECTRONICS KOR-61AP2S - Wiring Diagram

40

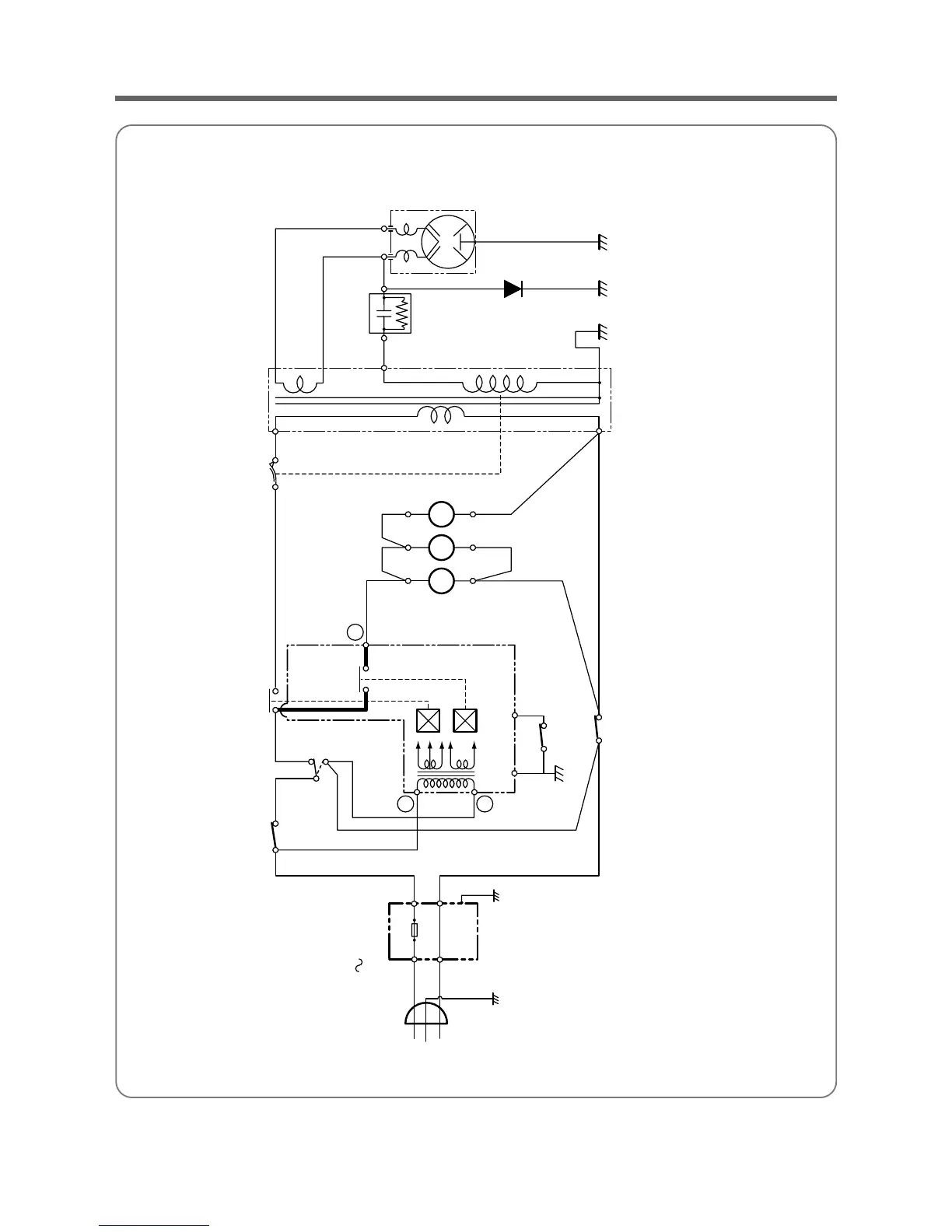

WIRING DIAGRAM for KOR-61AP0S, KOR-81AP0S
POWER SUPPLY: SINGLE PHASE ONLY
FILTER ASS’Y
FUSE
BR(BK) BL(WH) GE(GN)
L NN
L
GN
GN
BL
BL
BL
RD RD
WH
BK
D.O.M. SWITCH
SECONDARY INTERLOCK SWITCH
RELAY-2 RELAY-1
CONTROL P.W.B. ASS’Y
RD WH
COM
NO
NC
PRIMARY INTERLOCK SWITCH(UPPER)
INTERLOCK MONITOR SWITCH
H.V.T. THERMAL CUT-OUT
RD
HIGH VOLTAGE TRANSFORMER
OR
OR
H.V. CAPACITOR
MAGNETRON
H.V. DIODE
GY
GY GY
WH
GY
GY
GY
CL GM FM
NOTE RD : RED OR : ORANGE CL : CAVITY LAMP (CONDITION)
WH : WHITE BL : BLUE FM : FAN (BLOWER) MOTOR DOOR : CLOSED BK : BLACK GY : GRAY GM : GEARED MOTOR COOK : OFF GN : GREEN GE : GREEN/YELLOW BR : BROWN
2
3
1
LR
Fig. 1
