Vehicle Systems Disassembly & Assembly
Mast
Remove & Install Mast
Start By:
a. remove forks
b. drain the hydraulic oil to tank

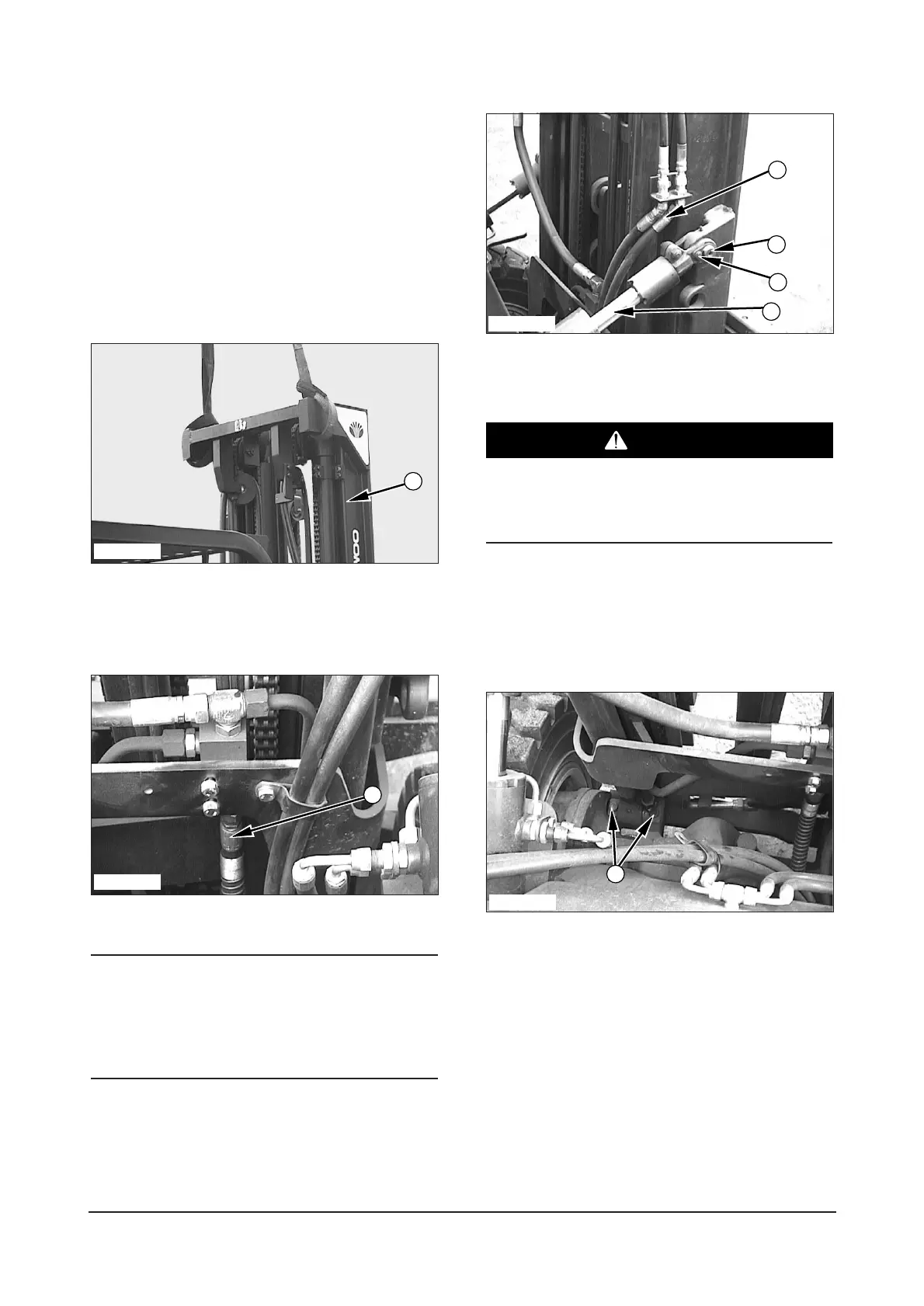

1. Support mast assembly(2) with a hoist and two
straps as shown.
NOTICE
Place identification marks on all hydraulic connectors
and hoses to assure proper installation. Plug and cap
all hydraulic connectors and hoses to avoid debris and
contamination from entering the system.
2. Disconnect hose(3).
3. Disconnect two hydraulic lines(4).
Tilt cylinders(7) can drop when pin(6) is removed.
To avoid component damage or personal injury,
support tilt cylinder(7) while removing pin(6).
4.
Remove bolt(5) from each side of mast assembly(2).
5. Remove pin(6) from the tilt cylinders on each side
of the mast assembly(2).
6. Tilt forward mast assembly(2) about 8° with the
hoist.
Remove bolts(8) from each side of the base of
mast assembly(2).
To Next Page
