Vehicle Systems Disassembly & Assembly
Loose the tension of straps to be connected with
hoist when mast assembly(2) is tilted forward.
If straps are too tight, mast assembly(2) could be
got off when bolts(8) are removed.
7.
Use the hoist to remove mast assembly(2) from
the machine.
8. Install the mast in the reverse order of removal.
End By:
a. Install forks.
b. Fill hydraulic oil to tank*.
* Refer to the Operation And Maintenance Manual
for further information.
Disassemble Mast
Start By:
a. Remove primary lift cylinder.
b. Remove side shift cylinder.
c. Remove mast.
NOTE: The following disassembly and assembly
procedure is for a full free triple lift mast.

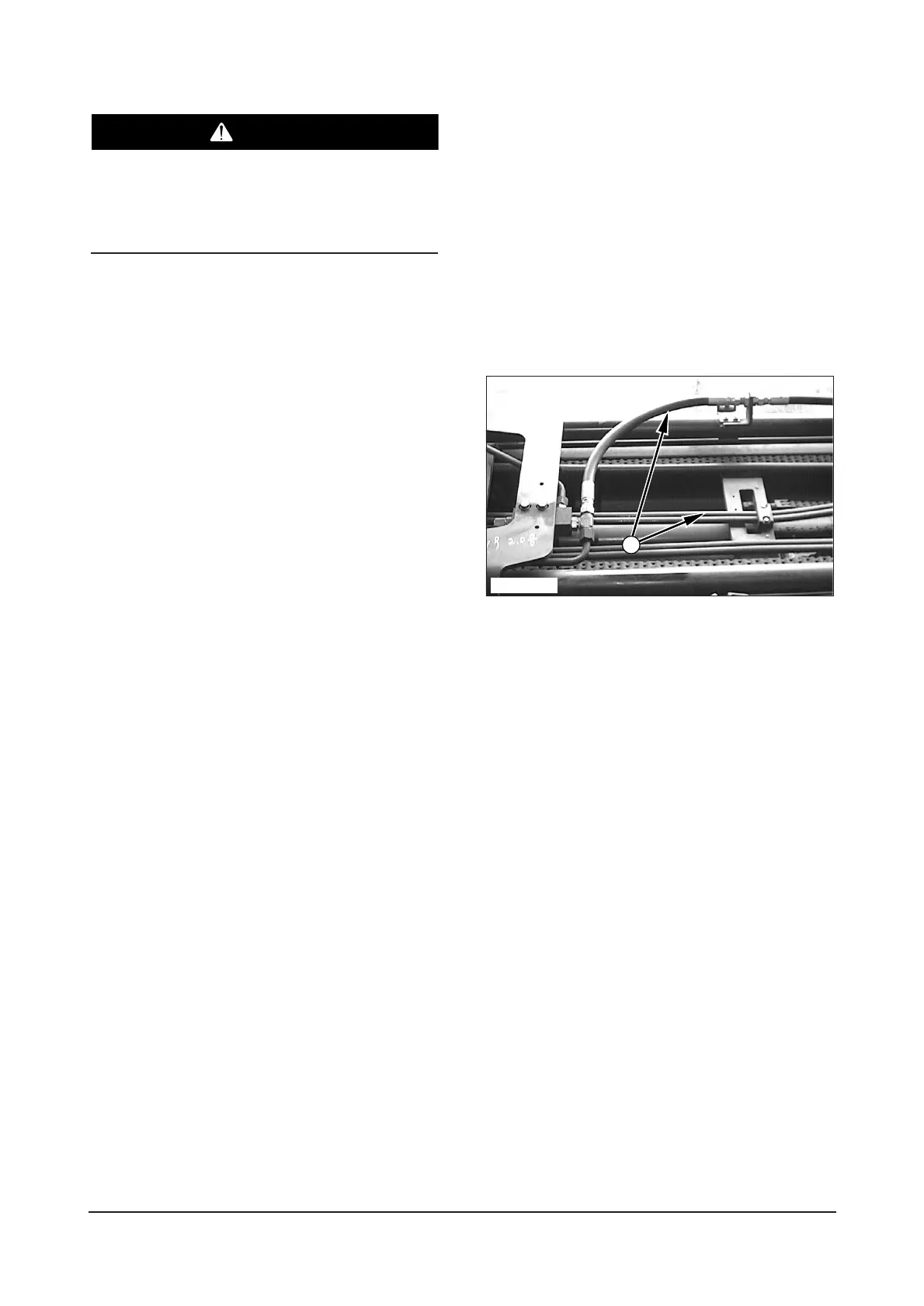

1. Remove hoses(1) along with the hose support
clamps.
