V
ehicle
Systems
Disassembly
&
Assembly

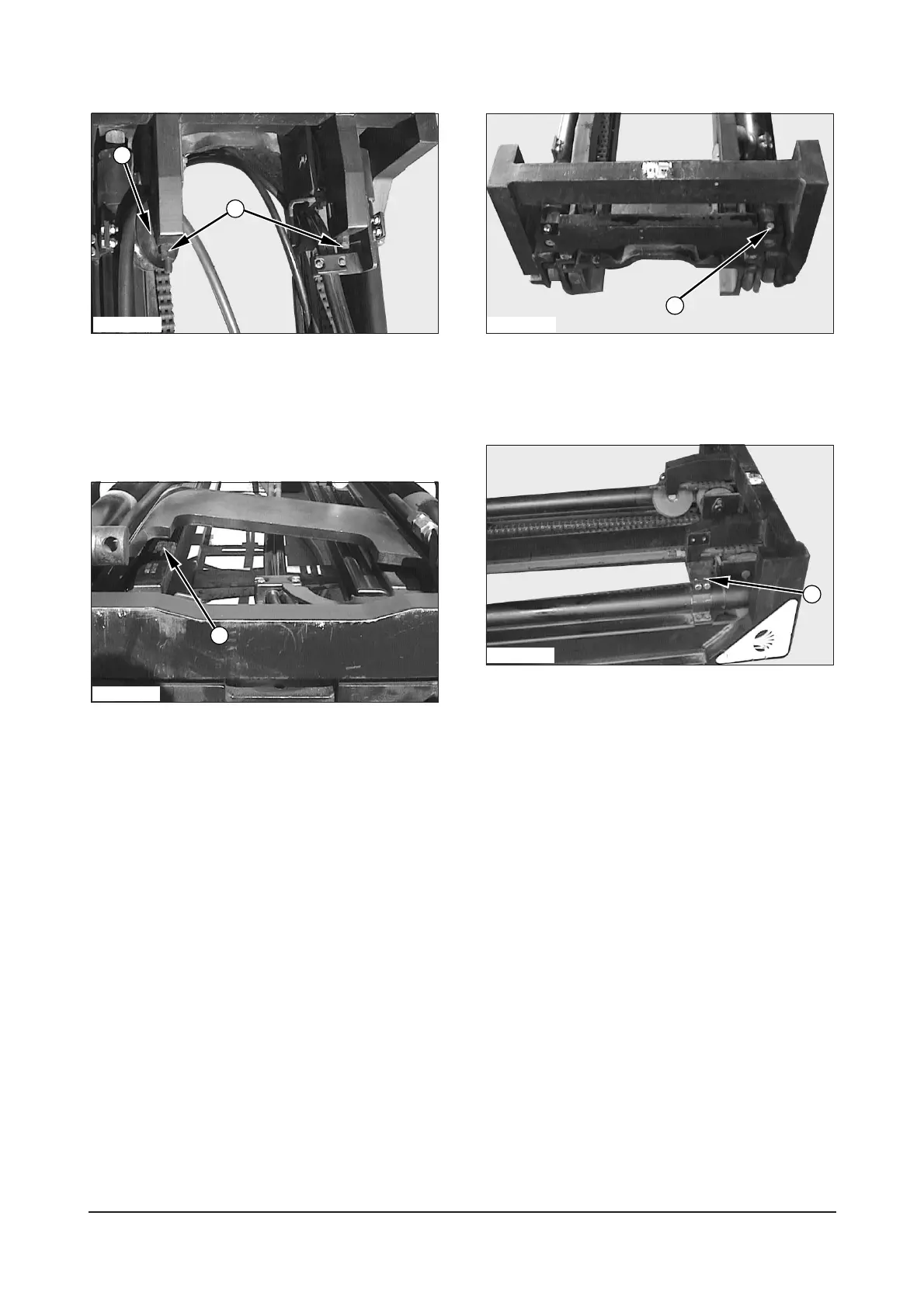

2.
Remove
hose sheave
(3).
3.
Remove
chain nut(4)
from the
top
of the
mast(each
side).
4.
Disconnect
and remove
chains(5) from
the
bottom
of
the mast.
5.
Remove
top cylinder
retainer bolt(6)
from
each
side
of the
mast.
6.
Remove
cylinder retainer
brackets(8) from
each
cylinder
.
15
IDCD025P
IDCD023P
IDCD024P
IDCD026P
4
3
6
8
5
15
17
Table of Contents
Important Safety Information
2
Disassembly and Assembly
6
Hydraulic Pump Motor
6
Primary Lift Cylinder
33
Tilt Cylinders
36
Steering Cylinder
40
Hydraulic Control Valves
43
Steering Unit
47
Steering Wheel
57
Steering Column
57
Steer Axle
60
Master Cylinder
61
Parking Brake
62
Drive Motor
64
Control Panel
67
