Vehicle Systems Disassembly & Assembly
7.

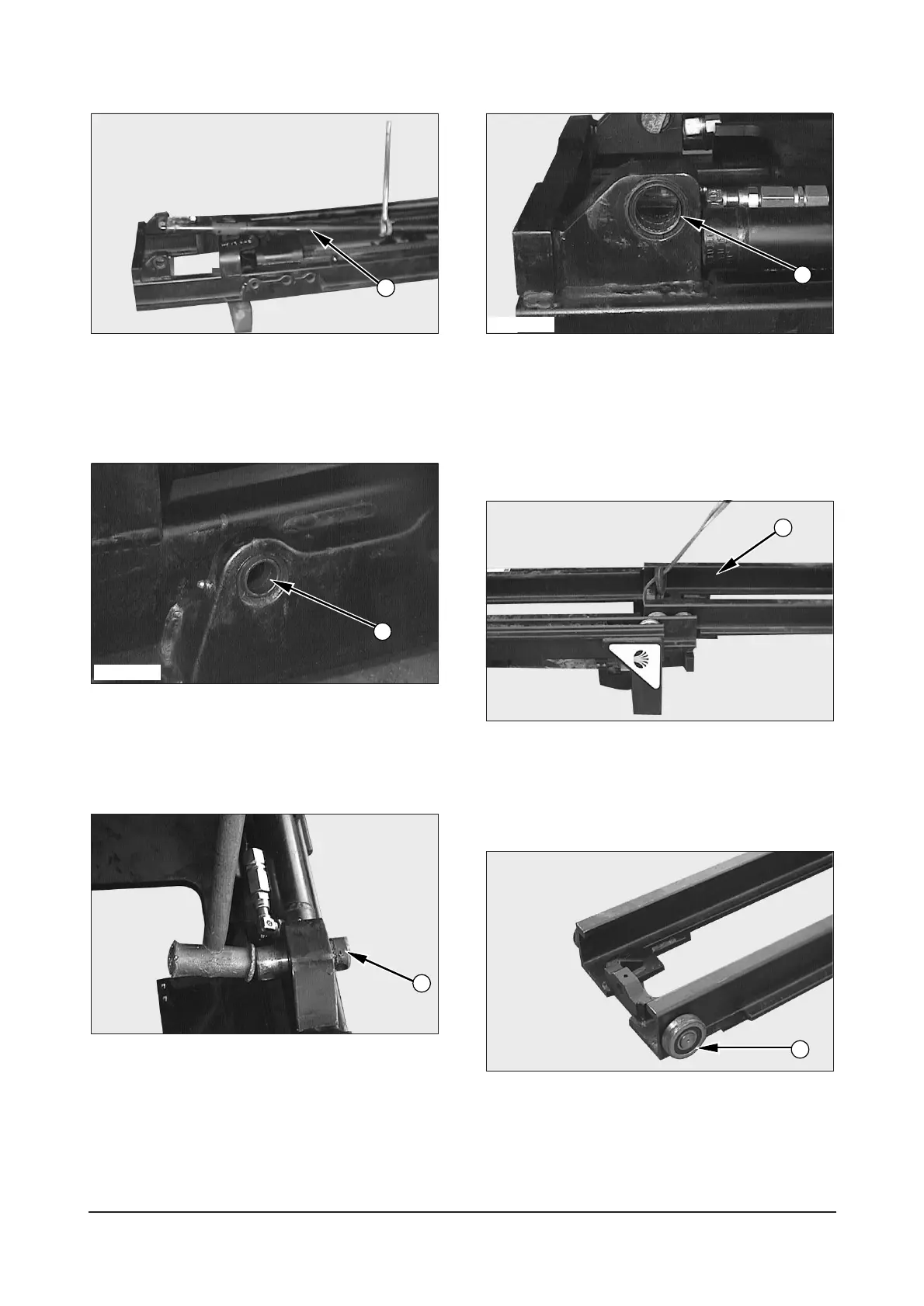

Fasten a nylon strap and hoist to secondary
cylinder(9) as shown. Remove secondary
cylinders(9). Each cylinder weighs 50 kg(110 lb).
8. Check the condition of bearings(10) located in
each of the tilt cylinder pin bores. Replace
bearings(10) with new if worn or damaged.
9. Remove mast mounting pins(11) from the mast
mounting bores.
10. Check the condition of the seals and bearings(12)
located in each of the mast mounting bores.
Replace the seals and bearings(12) with new if
worn or damaged. Seal lips should be forward
outside
11. Fasten nylon straps and hoist to inner
channel(13). Remove inner channel(13). The
weight of the inner channel is 150kg(330 lb).
12. Remove rollers(14) and the shims from the inner
channel mast.
16
