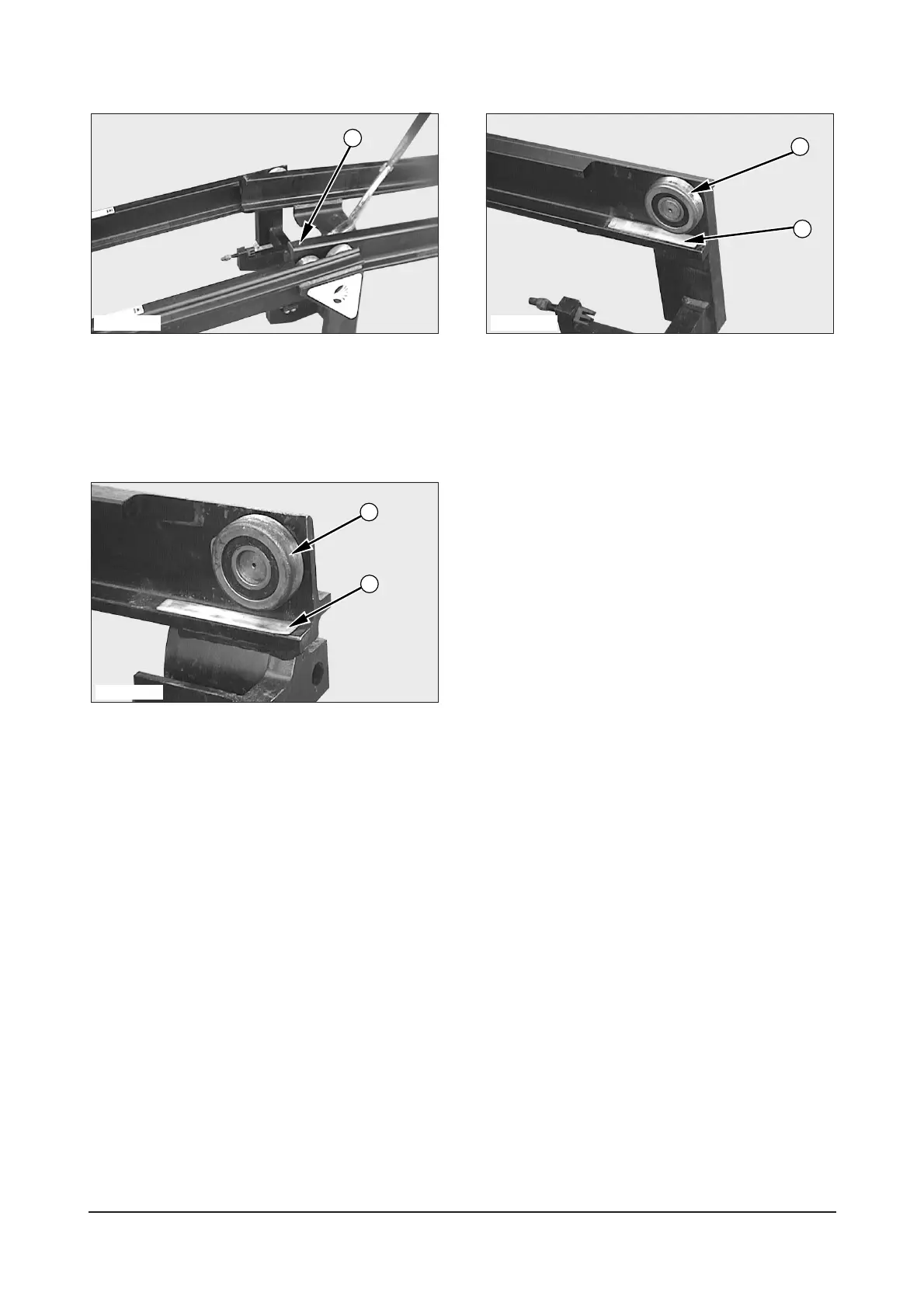

13.
Fasten
nylon straps
and a
hoist to
the intermediate
mast
channel(15). Remove
mast channel(15).
The
intermediate mast
channel weighs
168kg
(370
lb)
.
14.
Remove
rollers(16) and
the shims
from the
intermediate
mast channel.
15.
Remove nylon
pads(17) and
the shims.
16.
Remove
rollers(18) and
the shims
from the
stationary
mast channel.
17.
Remove nylon
pads(19) and
the shims.
17
15
18
19
16
17
IDCD033P
IDCD035P
IDCD034P
17
19
