Daewoo B25S-2 Disassembly/Assembly

Vehicle Systems Disassembly & Assembly
31.

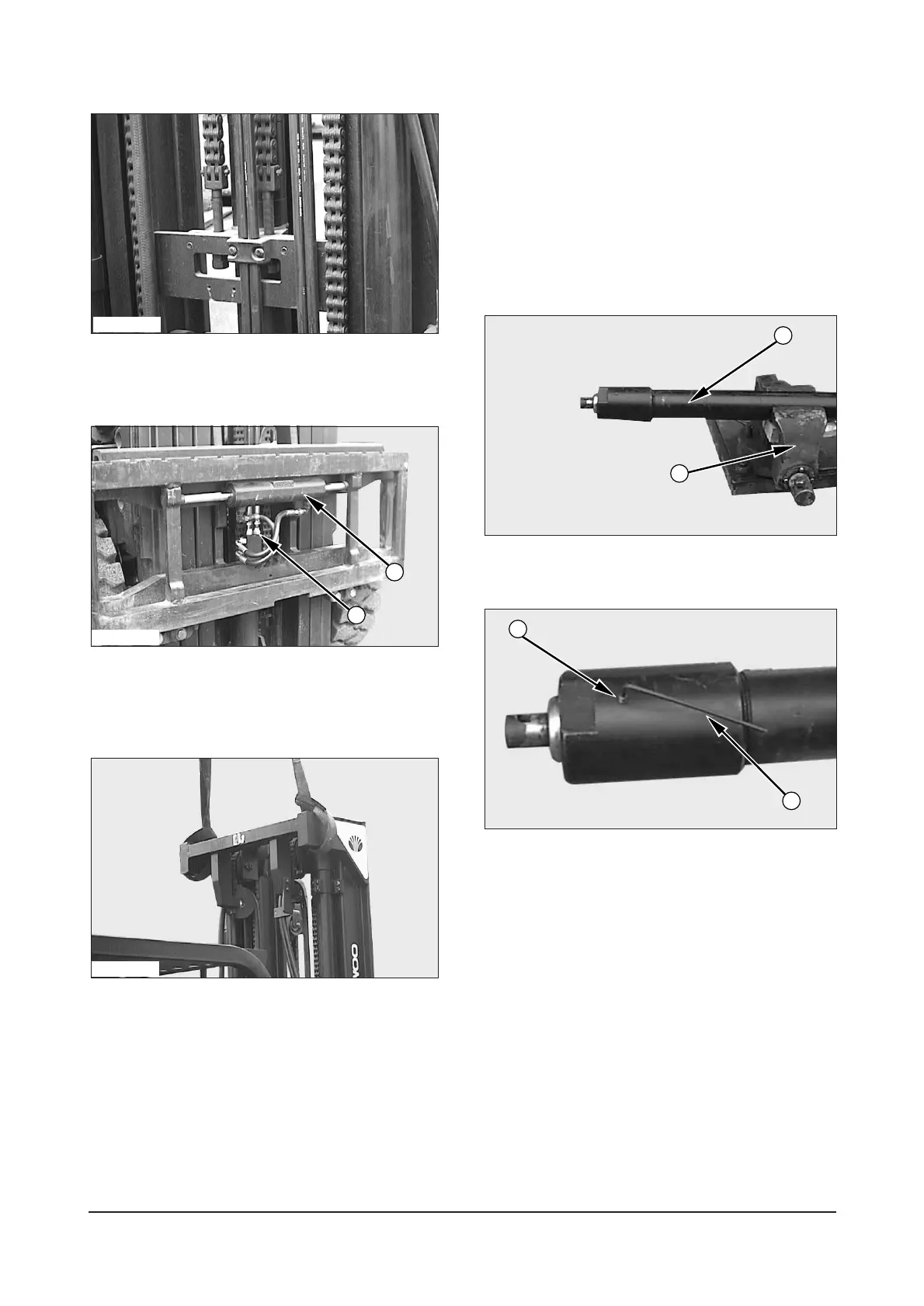

Install carriage chains to primary lift cylinder.
32. Install hydraulic hose (22) of side shifter to side
shifter cylinder (23).
33. Install mast to lift truck.
Standard Lift Cylinders
Disassemble Standard Lift
Cylinders
Start By:
a. Remove standard lift cylinders.
1. Put standard lift cylinder (1) in position on vise (A).
2. Loosen set screw (2) with wrench (B).
26
IDCD007P
IDCD005P
IDCD017P
23
22
IDCD399P
IDCD406P
1
2
B
A
