Daewoo B25S-2 Disassembly/Assembly

Vehicle Systems Disassembly & Assembly
Assemble Standard Lift
Cylinders

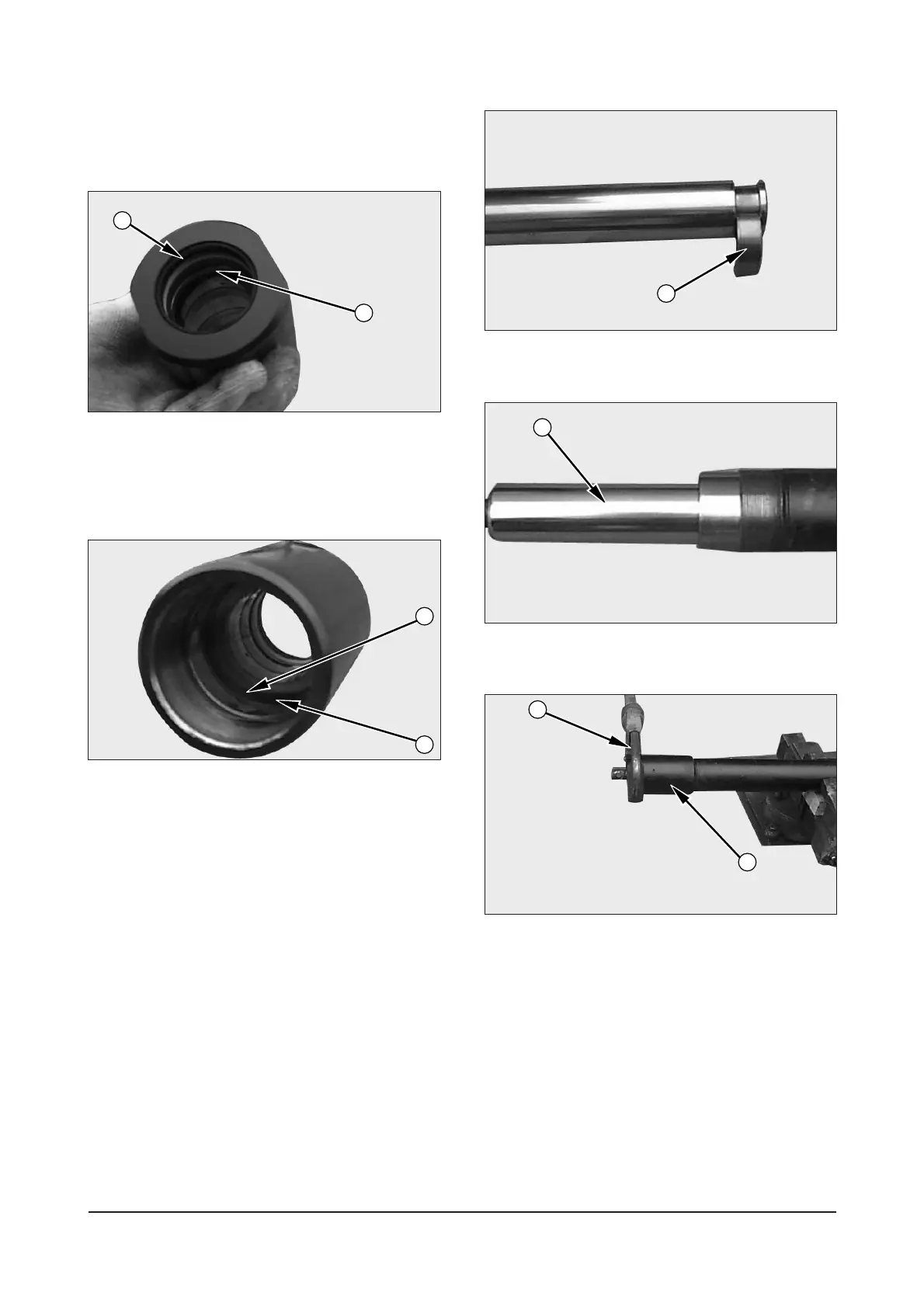

1. Install seal (2) in the bearing.
2. Install wiper seal (1). Install the seal with the lip
toward the outside.
NOTE : Install back-up ring (4) with the curved side
contacting the O-ring seal.
3. Install O-ring seal (3) and back up ring (4) into the
bearing.
4. Install split rings (5) on the cylinder rod.
5. Install cylinder rod (6) in the cylinder body.
6. Install bearing (7) on the cylinder rod and tighten
using wrench (C).
28
ICD407P
IDCD408P
IDCD410P
IDCD411P
IDCD409P
C
4
5
5
6
7
8
9
