3.

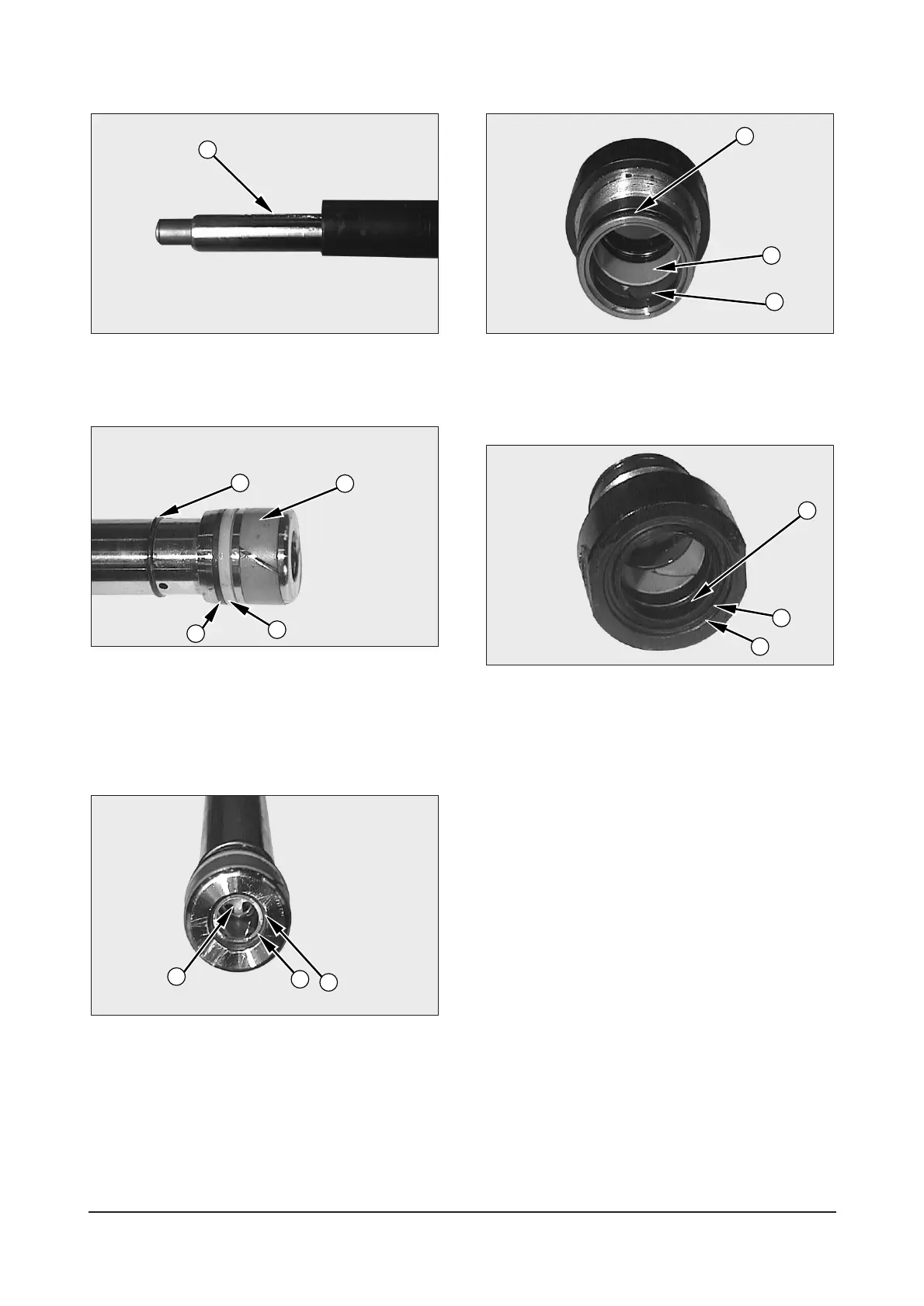

Remove rod (4) from the cylinder body.
4. Remove stop ring (4) from the cylinder rod.
5. Remove wear ring (5), U-packing (6) and backup
ring (7).
6. Remove retaining ring (8), spacer (9) and check
valve (10).
7. Remove slyd ring (11), wear ring (12) and O-ring
(13) from the bearing.
8. Remove wiper seal (14) and retaining ring (15)
from the bearing.
9. Remove U-packing (16).
30
IDCD204P
IDCD206P
IDCD207P
IDCD208P
IDCD209P
3
13
12
11
15
14
16
4
5
6
9
8
10
7
