Daewoo B25S-2 Disassembly/Assembly

Vehicle Systems Disassembly & Assembly
Assemble Secondary Lift
Cylinders

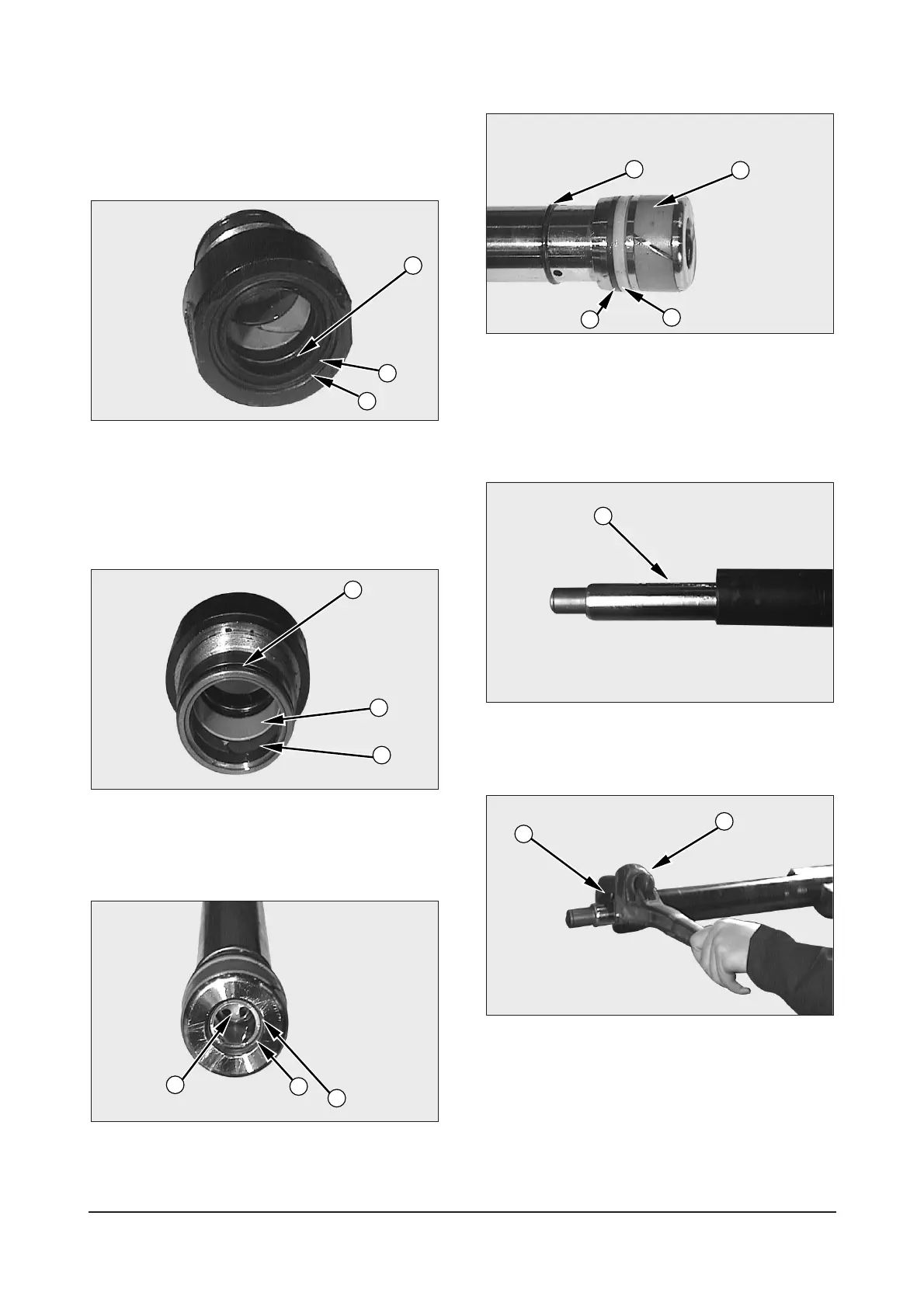

1. Install U-packing (1) in the bearing.
2. Install wiper seal (2) and retaining ring (3). Install
the seal with the lip toward the outside.
3. Install O-ring (4), wear ring (5) and slyd ring (6) in
the bearing.
4. Install check valve (7), retaining ring (8) and spac-
er (9).
5. Install stop rings (10) on the cylinder rod.
6. Install wear ring (11), U-packing (12) and backup
ring (13).
7. Install cylinder rod (14) in the cylinder body.
8. Install bearing (15) on the cylinder rod and tighten
using tool (B).
End By :
a. Install secondary lift cylinders *
* Refer to the topic
GGAssemble MastH in this module.
31
IDCD209P
3
2
1
IDCD208P
4
5
6
IDCD207P
9
8
7
IDCD206P
10
11
12
13
IDCD204P
14
IDCD203P
15
B
