Daewoo B25S-2 Disassembly/Assembly

Vehicle Systems Disassembly & Assembly

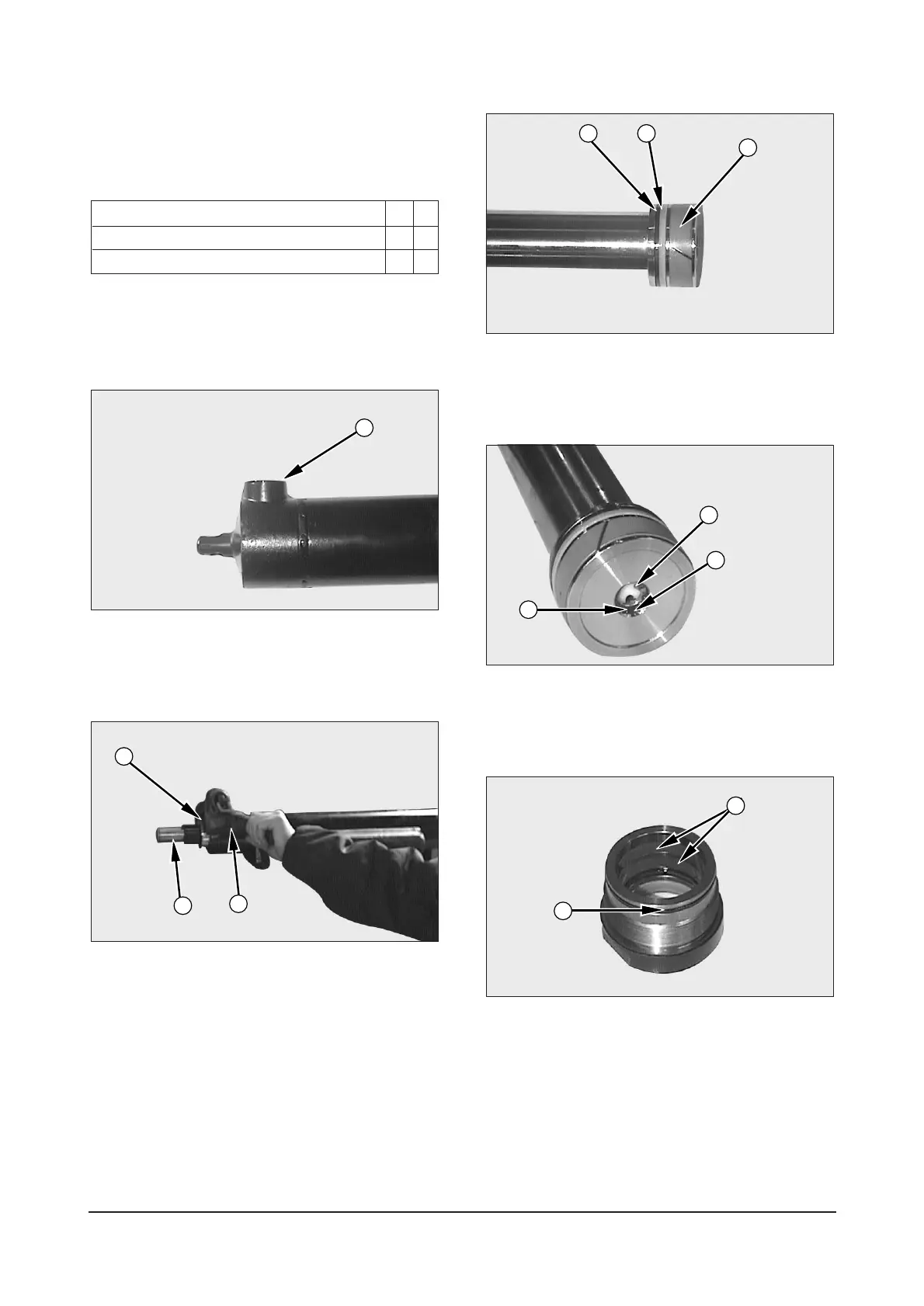

Disassemble Primary Lift
Cylinders
Start By:
a. Remove primary lift cylinder.
1. Remove flow protector valve (1) from the cylinder
body.
2. Remove bearing (2) with tool (A).
3. Remove rod (3) from the cylinder body.
4. Remove wear ring (4), U-packing (5) and backup
ring (6).
5. Remove retaining ring (7), spacer (8) and check
valve (9).
6. Remove O-ring (10) and two slyd-rings (11).
Tools Needed A B
Hydraulic Cylinder Repair Stand 1
Wrench Assembly 1
